Specifications
1.Hydraulic pressure.ABB motor2.Two India office,spare center,engineers

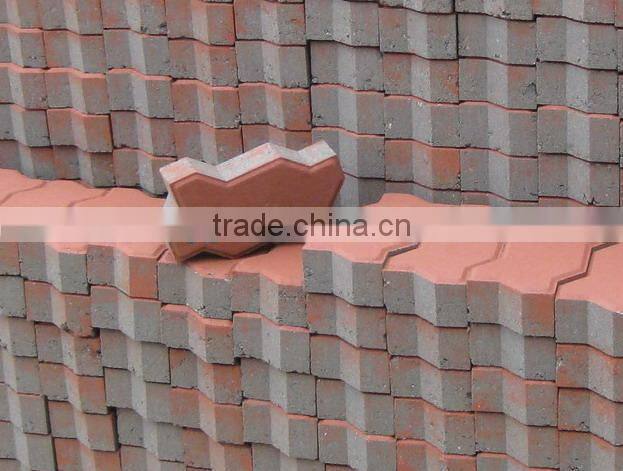

3.Make various paver brick,hollow block,solid brick

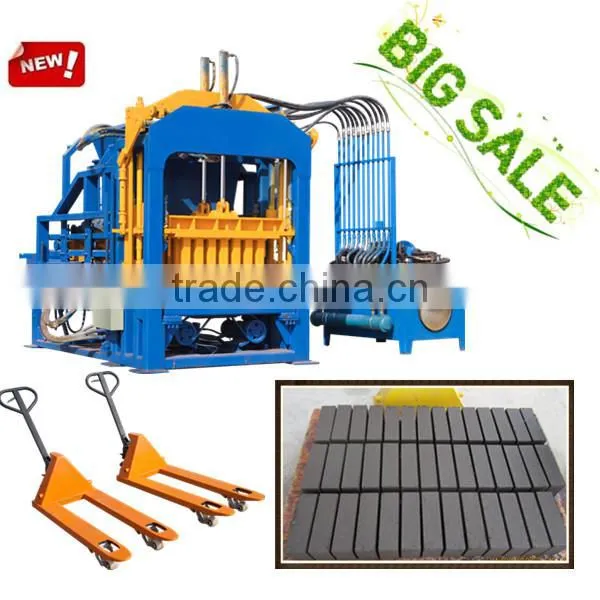

QT6-15B Automatic cement block and brick making machines
Dongyue Machinery Group Has 36 fly ash brick making machine plant in India.
They spread in Bhubaneshwar ,Coimbatore,Rajkot,Koltata,bangalore,Indore etc.
Compared with other companys,Our company has following advantages
1.Service covered right from Inside India. We are the only company that has got Indian office
2.We are the only company that has got spares store in India.
3.We have 2 engineers and 2 operators trained in this Industry in china for your support. We also apart from other administrative staff.
4.You also get pre-installation support, Project report support Project guidance, Import guidance, and layout guidance from India office.
5.We do not have agents, so no commission. What you get is Value for Money from us.
6.Warrantee is covered from Indian itself
7.Service and up gradation support right from India
8.All our Indian supplied machines have 415 Volts, 3Phase, 50 Hz systems to confirm to Indian standards. Other Chinese companies use 380 Volts system as this is the Chinese standard. WE also give you all German Motors of Siemens Brand or ABB brand.

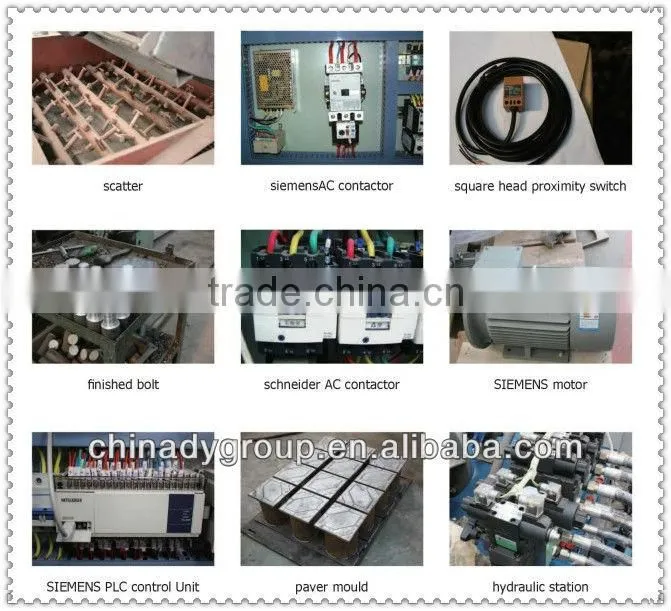

9.Our PLCs are of high quality Siemens or Mitsubishi and not Chinese or Taiwan brands. So in very rare case of any problems in Motors or PLCs, you can have warrantee covered in India itself.
10.We also have the Biggest Pallet size compared to other manufacturer for the same class of machine. Bigger the pallet, bigger has to be the machine and thus the more study the machine has to be.
2.QT6-15B cement block and brick making machines technical parameters
Dimension | 2650×2200×2780mm | Host machine power | 32KW |
Moulding area | 800×600mm | Vibration force | 45KN |
Moulding period | 15-20S | Capacity | 78.25KVA |
The size of the pallet | 850×750×20/25mm | Mixer model | JS500 |
Weight | 8.7T | Water Consumption | 6T/every day |
Voltage | 380V |
1 Theoretical workshop area:300 m2,need about 5-6 workers.
2 The office,curing area and stacking area to arrange according your practical situation.
3. QT6-15B cement block and brick making machines production capacity
Size (LxWxH) | Pcs/ Mould | Pcs/ Hr | Pcs/ 8 Hr | m3/year |
400X100X200 | 12 | 1800-2520 | 14400-20160 | 34560-48384 |
400X150X200 | 8 | 1200-1680 | 9600-13440 | 34560-48384 |
400X200X200 | 6 | 900-1260 | 7200-10080 | 34560-48384 |
400X250X200 | 4 | 600-840 | 4800-6720 | 28800-40320 |
Paver:200X100X60 | 21 | 3150 | 25200 | |
Paver:200X163X60 | 9 | 1350 | 10800 |

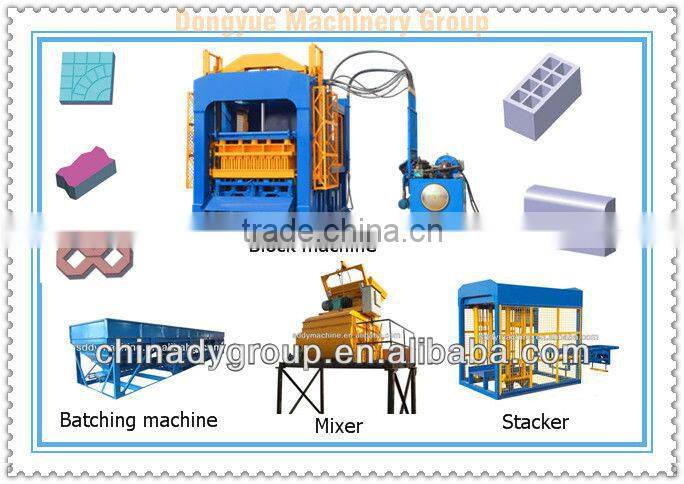

4.QT6-15B cement block and brick making machines each parts overview
Brick Press machine: This is the hydraulic press and vibration system which gives shape to the mix. Bricks/blocks are formed on the pallets. Operation is automatic and this is a part of brick forming line machine. Please remember that the pressing is vibration aided, and unleases a series of micro sequence of PLC controlled vibration and pressure. Thus the final output is a properly compact, strong Brick, which can save on expensive cement content of the mix
Batching Machine :: This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.
Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.
Pallet stacker: This lifts the pallets carrying the bricks/blocks, and stacks them on 5 to 6 layers automatically.
Screw Conveyer (Optional fitment): loading bins of the This is instrumental for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.
Conveyer Belt: When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.

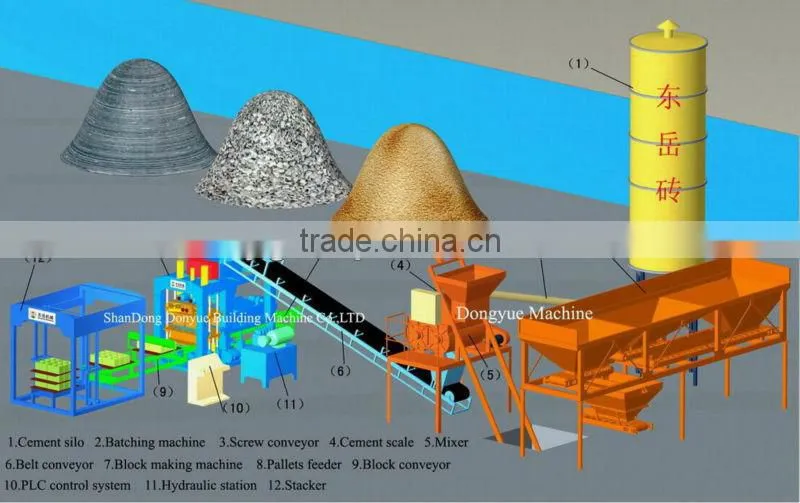

.QT6-15B Automatic cement block and brick making machines working process
