hollow block making machine/press brick making plant

Specifications

1.automatic hydraulic
2.Siements motor,Mitsubish PLC
lid brick hollow block interlock,curbstone paver
4.ISO,CE,SGS

press brick making plant



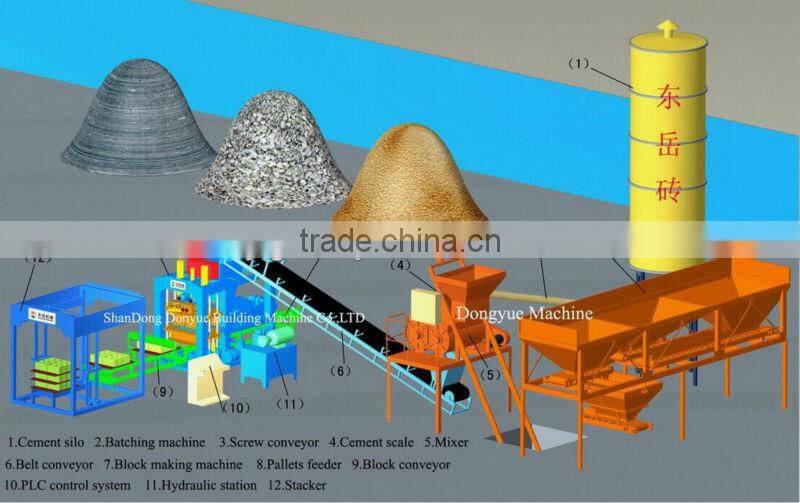

1)   press brick making plant working process



1)   press brick making plant material dosing system



Sand ,stone chips are loaded in batching machine,batching machine will scale each materail and transpor the material to hopper in mixer,at the same time cement is stored in cement silo and is transported to the mixer by screw conveyor..



2)  press brick making plant mixing system



Automatic mixer machine will add the water and measure it by timer.Then mixer the cement,sand,stone chips and water.



3)  press brick making plant block press process



The mixed raw material will be transported to the hopper on block machine.The block machine will scatter the material in the down mould area.Then press the block into block shape.



4)  press brick making plant automatic stacker system



The stacker will stack the block,then use forklift to transport the block to yard for curing.





1) press brick making plant technical parameters

Dimension of host machine	2440×2000×2600mm	Host machine power	25KW
Moulding area	400×800mm	Vibration force	40KN
Moulding period	15-25S	Capacity	68.25KVA
The size of the pallet	1010×550×20/25mm	Mixer model	JS500
Weight of the host machine	5T	General water Consumption	4T/every day
Voltage	as per local requests





2.   press brick making plant production capacity



m3/year
400X100X200	8	1200	9600-11520	23040-27648
400X150X200	6	900	7200-8640	25920-31104
400X200X200	4	600	4800-5760	23040-27648
400X250X200	3	450	3600-4320	21600-25920
Paver:200X100X60	16	1820	14560
Paver:200X163X60	8	1100	8800



3.  press brick making plant

1. press brick making plant  Using Germany Siemens Motor, which is the best motor brand in the world. Its lifespan

is 1.3 times than that of common motor.



2. press brick making plant Japan Mitsubishi PLC control system and Omron travel switch, achieving dialogue and

exchange between man and machine. Dozens of mechanical action of different products

could be adjusted through the menu to select the addition and subtraction without needing

professionals.



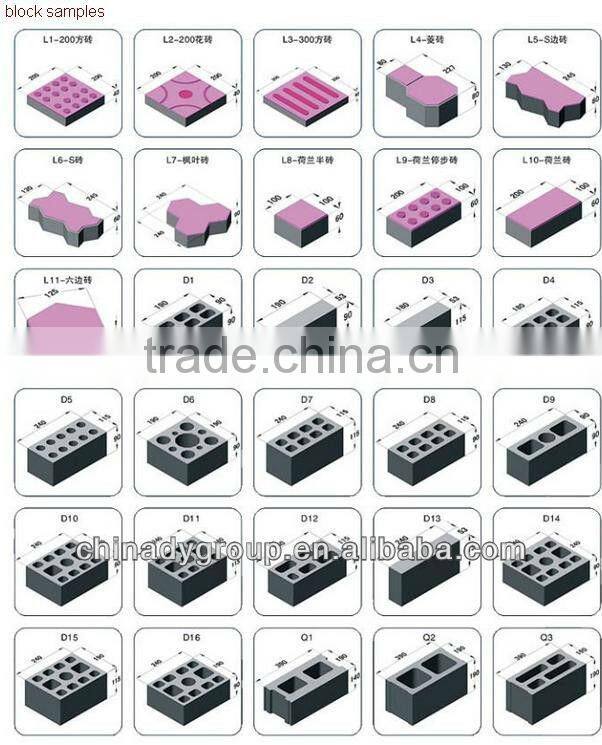

3. press brick making plant As a multi-purpose machine, exchangable mold can produce normal bricks, hollow bricks,

multi-holes' bricks



4. press brick making plant Scatter material through revolving 360 degree , this process likes to mix the material

again after the mixer, the technology makes the blocks evenly and high density



5. press brick making plant Mould got heat treatment and carburization, making the antiwear ability 1.2 times as the

other mould



6. When pressing, the excess oil will be turned to Li Zhen-hit, and computer controlled

directional vibration, frequency and brake to cancel the vibration energy



7. press brick making plant Feeding in low-frequency, vibrating in high-frequency, and increasing in Head tanks.

Table and Mould vibrating together will make concrete fully liquefied and exhausted in 2-3 seconds to achieve high-density and high strength ,Particularly be suitable for the

production of high-strength blocks, you can stack immediately after forming





4)  press brick making plant each part overview



Batching Plant:This is the starting point of the Production process. It consists of three loading bins and one weighing bin. It also contains blet conveyers to convey materials from loading bins to weighing bin. Batching and weighing is done by PLC control. We can load three different types of material into the loading bin.



Concrete Mixture Machine: All the ingredients are mixed in this mixture machine. The mixing time and speed is controlled by PLC. The inbuilt water pump adds water to the mix automatically, as per requirement.



Block mold machine:This is the key of the production line.It can press the mixed material.It can make various hollow block,solid brick,paver brick and kerbston.



Screw Conveyer (Optional fitment):  loading bins of the This is instrumental for transporting Fly Ash from the silos(optional fitting) or cement hopper (optional fitting) to the Batching Plant.



Conveyer Belt:  When the Batching plant’s weighing bin trips according to the PLC control, the material comes to this conveyer belt. The material is then carried to the Mixture Machine.



Stacker:Stacker is used to lay the block automatically,it is high effiicent and labor saving.
