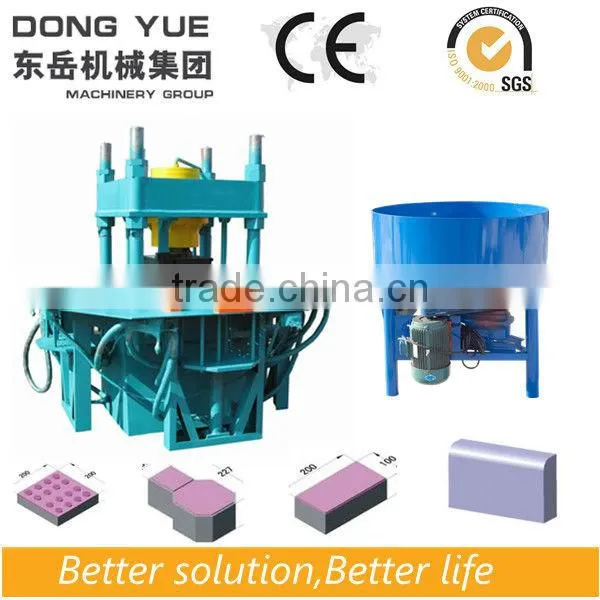

DY-150T manual interlocking brick making machine

Specifications

1.Make paver brick/interlocking brick/kerbstone
2.4 Person required.
3.Hydraulic pressure.ABB motor
4.No need pallet

DY-150T Hydraulic manual paving block making machine

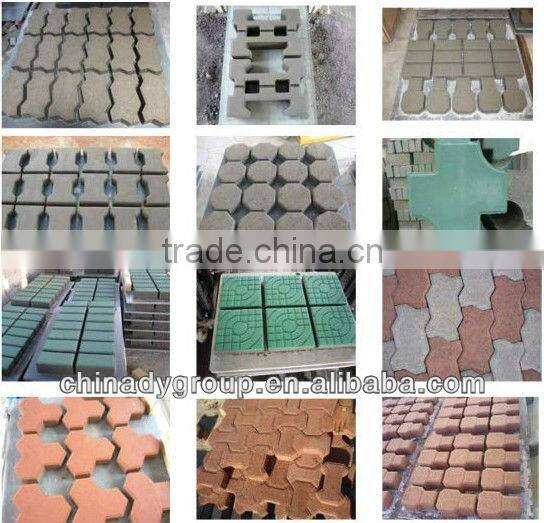

DY150T manual interlocking brick making machine can make various color pavers,interlocking bricks and kerbstone.The maximum kerbstone length is 500mm.



It makes use of hydraulic pressure,the block is of high strength.Four people operates in four directions,the production capacity is 3000-4000pcs/8hrs.



DY-150T interlocking brick machine does not need instalaltion, After connecting with power,you can start production.

Client machine inspection



Max  pressure	150KN
Total power	11kw
production	1500-2000 blocks/day
Machine weight	3200kg
Machine size	9300x2200x3650mm
Maximum specification	500x500x150mm
theoretical workshop area : 200m2 , need about 3-4 workers .the office , curing area and stacking area to arrange according your fact status.



DY-150T manual paving block making machine production



Size(LxWxH)	Pcs/ 8 Hr	Size(LxWxH)	Pcs/ 8 Hr
Paver:200X100X60	1800-2000pcs	Paver:250x250x60	1800-2000pcs
Paver:200X165X60	1800-2000pcs		3600-4000pcs
Paver:225X112.5X60	1800-2000pcs		1800-2000pcs

DY-150T  manual paving block making machine all parts details



(1)Our products are mainly producing color blocks/bricks, curb stones, interlock blocks, etc.

(2)DY-150TB adopts international brand-name Germany Siemens motors and Japan Mitsubishi PLC, reliable quality, low fault rate and durable. The material of whole frame is national standard steel, with high strength and reliable quality.

(3)The hydraulic oil jack is as same as the one used in large mechanical equipment
