New technology Automatic QT4-15 hydraulic brick making machine for house plans

Product Application

QT4-15 block machine is the new researched and developed multi-purpose block making machine,mechanical vibration type burn-free brick machine,push-pull mould by electric.dosing material at a time,easily operated,save labour with small workforce. Regular production use 4-5 workers,one worker control mixer,one operate the host machine,two take charge of transporting formed blocks. This machine could make various solid bricks,hollow blocks, paver blocks and carb stones by changing molds. It’s very popular with the manufacturers from all parts of the world.

Main Features

1) Strong hight-strength steel structure.

2) Block mould adopt heat treatment technology.

3)Japanese MITSUBISHI PLC/German SIEMENS or International ABB Brand motors.

4)Use worm wheel and screw mandrel to adjust the material feeder platform.

5) Certificates:CE/SGS/ISO9001:2000.

Machine Introduction

Name:JS500 Mixer

Brand: DONGYUE

Parameter:

Input Capacity:1200 L
output capacity: 500L
Productivity :37-45m3
Max aggregate diameter :80/60 mm
Discharging height (m): 1.6/2.2/3.0/3.8
Discharging type:Manual/electrcian
mixing vane rotation speed: 33 r/min

Main Features

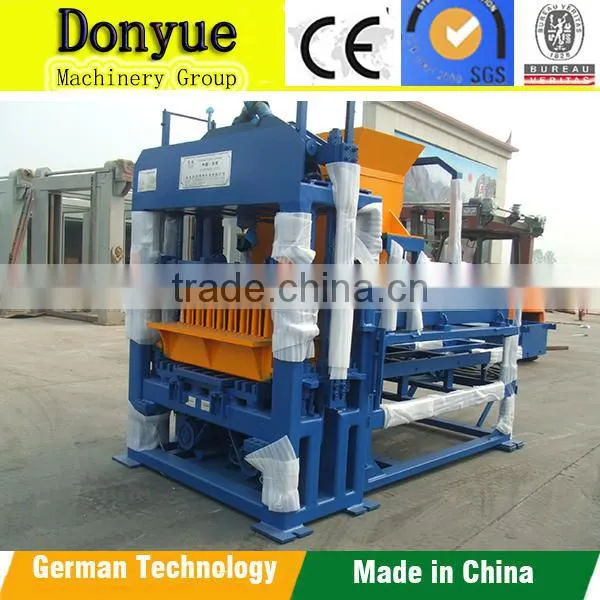

Name: Host block making machine
Brand:DONGYUE
Parameter:
PLC controller:Japan Mitsubishi

Hydraulic station DY-4-18
PLC control system: DY-4-M
Pallet feeder
Brick conveyer
Block sweeper rotating brush mo
anual hydraulic trolley:C=2500kg

Machine Parts

Name: Color feeding machine
Brand: DONGYUE
Parameter:
Color mixer JQ350: (Φ1200mm)

Color material belt conveyer:  L=4000mm

color feeding machine: DY-4

Main Features

Name:Stacker
Brand: DONGYUE
Parameter:
Automatic stacker:DY-4-S
