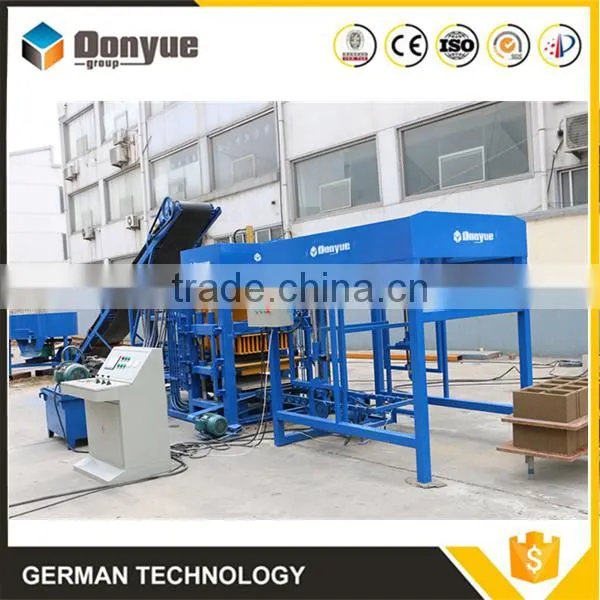

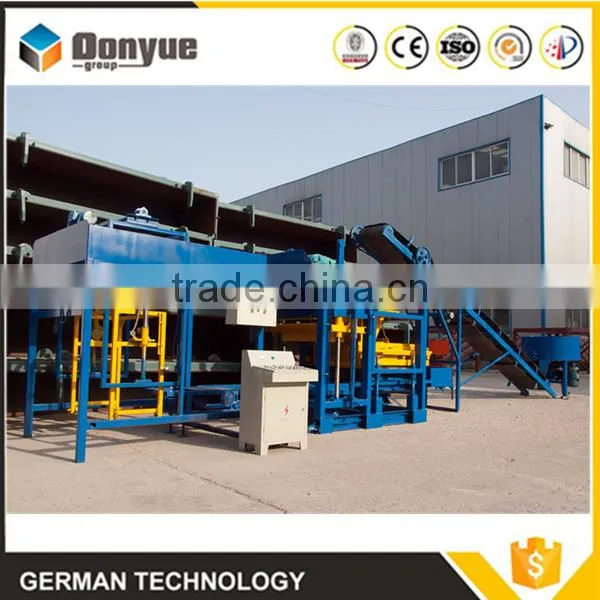

High Quality Hollow Brick Making Machine Production Line QT4-25
Purchase Plan

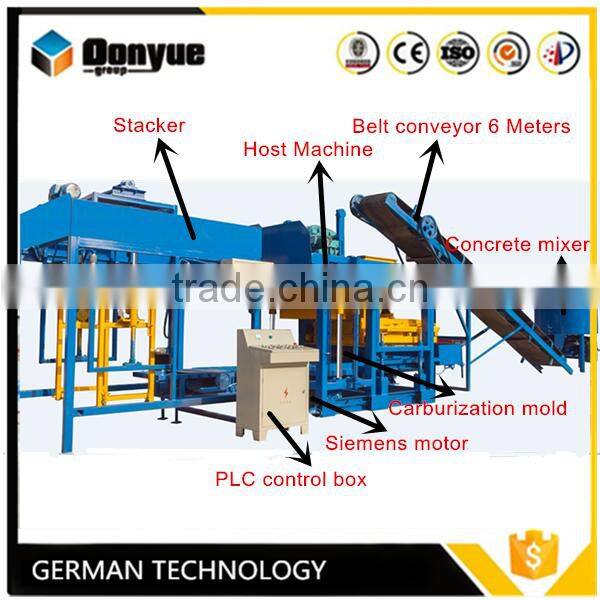

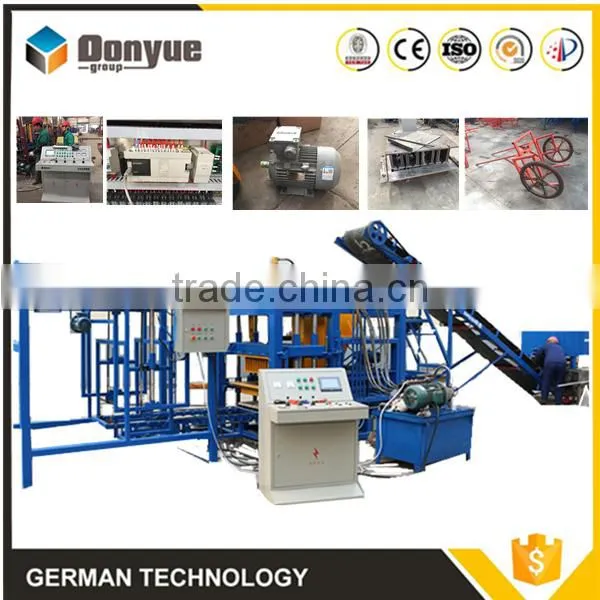

Standard confuguration:
1 set of host machine (Inc : PLC control box, hydraulic station)
1 set of belt conveyor machine 6 Meter
1 set of concrete mixer JQ500
1 set of distribution box

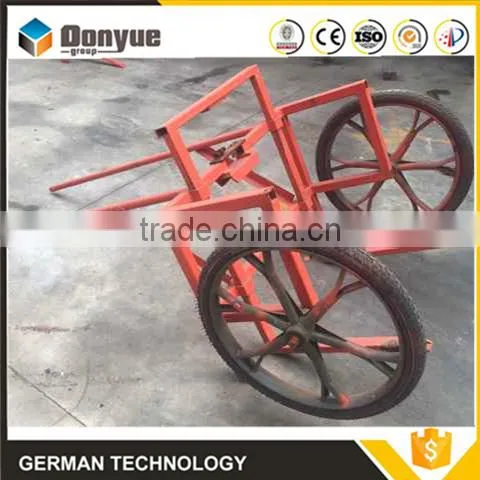

2 sets of small manpower cart
1 set of stacker
Advanced confuguration:
1 set of host machine (Inc : PLC control box, hydraulic station)
1 set of belt conveyor machine 6 Meter
1set of concrete mixer JQ500
1set of distribution box
2 sets of small manpower cart
1 set of stacker,1 set of color mixer
1 set of color material conveyor belt
1 set of color feeding machine
Advantages
♣ High technology: automatic block machine with hydraulic station, can product high quality blocks;
♣ Carburization mold: all of the mold are carburized.The working surface of the mold has high strength and wear resistance, corrosion resistance;
♣ Hydraulic station:By the high-pressure pump, circulating pump, cooler, precision oil filter and fuel tank and other components. Equipped with a thermometer, when the oil temperature exceeds the upper limit, the automatic Mianshaozhuanji automatic shutdown, such as oil temperature drop after the boot.
♣ High product:block making machine QT4-25 is an automatic machine, with high pressure. It can product high quality 400x200x200mm blocks 576pcs/hour.
Technology specification
(1) Main technical parameters
| Dimension of host machine | vv3700x2100x2300 | Host machine power | 16.35KW |
| Mold period | 20S | Vibration force | 35.5KN |
| The size of the Pallet | 850x550x30mm | Power of the hos | 2223.7 |
| Weight of the machine | 3 T | Mixer modeld | JQ500 |
(2) Theoretical production capacity
| Size(LxWxH) | Pcs/Mould | Pcs/Hr | Pcs/8Hr |
| 400x100x200 | 7 | 1008 | 8064 |
| 400x150x200 | 5 | 720 | 5760 |
| 400x200x200 | 4 | 576 | 4608 |
| 400x250x200 | 3 | 432 | 3456 |
| 230x110x70 | 20 | 2880 | 23040 |

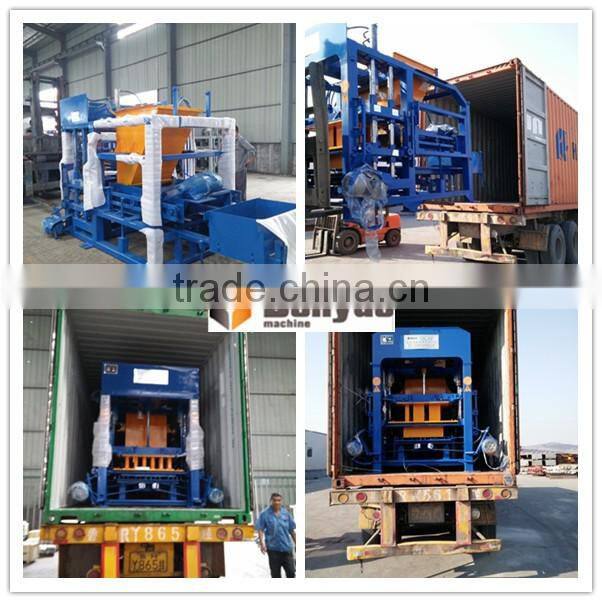

Pakaging & shipping
More products
Click to view more Click to view more
Click to view more Click to view more Click to view more

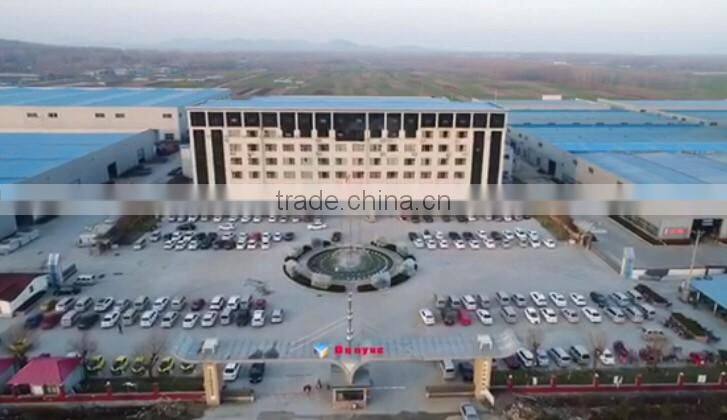

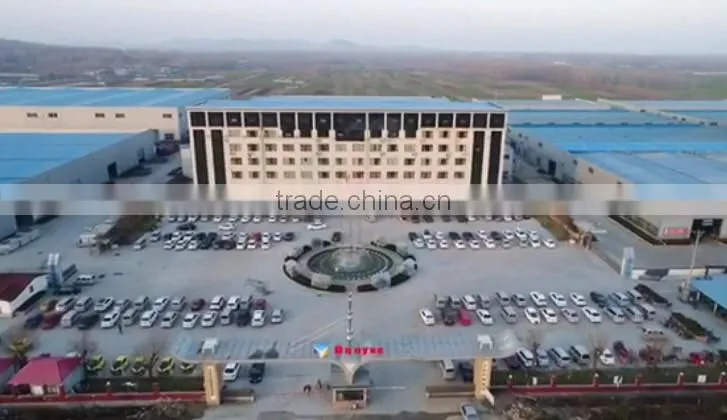

Company information
Dongyue Machinery Group Co. Ltd is located in the jumping-off point of Linyi City. We have brought in advanced technologies from abroad and developed series of brick machines with practicable patents by ourselves, following up the up-to-date trends abroad.
Since our establishment, we have regarded quality as the most important and eternal principle in production. Our products have passed ISO9001:2000 certification and the inspection by National Construction Machinery Products Quality Inspection Center. The new series of automatic brick forming machine features high efficiency, advanced technology, stable capability and wide applicability.
Contact me
Mobile:0086 18954928369
Tell:0086 053980362288
WhatsApp:00 86 18954928369
QQ:1751216825
Wechat: syx28369
