Specifications

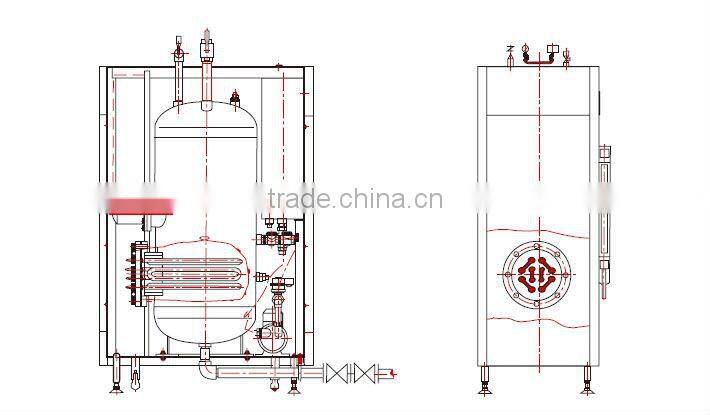

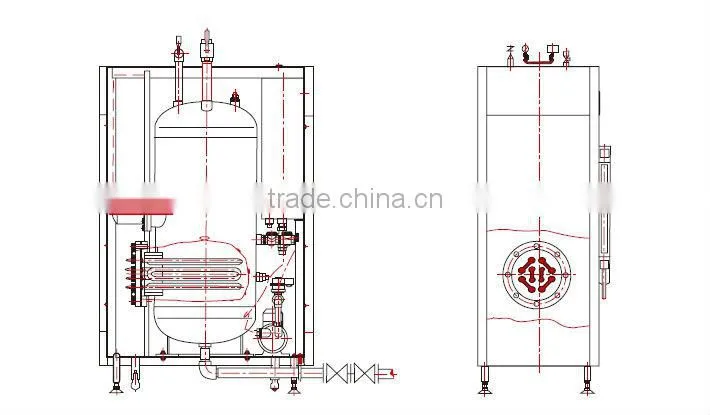

LDR series electic heating steam boiler1.100 percent of heat conversion efficiency
2.excellent quality and reasonable price
.Product Features of L(W)DR Series Elec-heating steam Boiler
1.The elec-heating steam boiler is designed with world grade technique,intergration design,unique structure,refinement shape,convenient install and easy maintain.
2,The stove is controlled by micro computer,so,it can run with nobody-watching,and be configured by the programme sensor panel,human-machine interface and remote control(optical).
3,It can safeguard for over heating,over pressure,lacking of phase,lacking of water and over current,it has a good effciency of circulation and heating
4,It will avoid impacting the transmission-line system of electric power by ladder loading,and the heating units have a uniform li
fe.
5,The boiler has 98% efficiency with double layers ultra thick insulation and 100% heat conversion efficiency.The elec-heating pipes are stainless steel and have a long life with advanced technique.
Specifications of L(W)DR Series Elec-heating Steam Boiler | |||||||
boiler model items | (L)WDZ -0.1 | (L)WDZ -0.2 | (L)WDZ -0.3 | (L)WDZ -0.5 | (L)WDZ -1.0 | (L)WDZ -2.0 | |
rated steam capacit t/h | 0.1 | 0.2 | 0.3 | 0.5 | 1.0 | 2.0 | |
rated working pressur ( Mpa ) | 0.4/0.7/ 1.0/1.25 | 0.4/0.7/ 1.0/1.25 | 0.4/0.7/ 1.0/1.25 | 0.4/0.7/ 1.0/1.25 | 0.4/0.7/ 1.0/1.25 | 0.4/0.7/ 1.0/1.25 | |
thermal effciency % | > =98% | > =98% | > =98% | > =98% | > =98% | > =98% | |
interio-rinput power KW | 72 | 150 | 225 | 360 | 750 | 15000 | |
import power- supply | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ | |
Specifications of L(W)DR Series Elec-heating Steam Boiler | |||||||
boiler model items | ( L ) WDR0.1 -P/95/70 | (L)WDR0.2 -P/95/70 | (L)WDR0.3 -P/95/70 | (L)WDR0.5 -P/95/70 | (L)WDR0.7 -P/95/70 | (L)WDR1.05 -P/95/70 | (L)WDR1.4 -P/95/70 |
fixed therma power MW | 0.1 | 0.2 | 0.3 | 0.5 | 0.7 | 1.05 | 1.4 |
rated working pressure ( Mpa ) | 0.6/1.0 | 0.6/1.0 | 0.6/1.0 | 0.6/1.0 | 0.6/1.0 | 0.6/1.0 | 0.6/1.0 |
thermal effciency % | > =98% | > =98% | > =98% | > =98% | > =98% | > =98% | > =98% |
interior-input power KW | 90/120 | 150/210 | 270/300 | 480/510 | 720/750 | 960/1050 | 1440/1500 |
import power- supply | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ |
feed water temperature / return water temperature | 95/70 °C | 95/70 °C | 95/70 °C | 95/70 °C | 95/70 °C | 95/70 °C | 95/70 °C |
Specifications of L(W)DR Series Elec-heating Steam Boiler | |||||||
boiler model items | C(L) WDR-0.1 | C(L) WDR-0.2 | C(L) WDR-0.35 | C(L) WDR-0.5 | C(L) WDR-1.0 | C(L) WDR-1.5 | |
each boiled water supply capacity ( L ) | 100L | 100L | 100L | 100L | 100L | 100L | |
interior-input power KW | 9 | 18 | 24 | 30 | 30 | 45 | |
each heating time ( h ) | 1.2 | 1.2 | 1.6 | 1.8 | 3.8 | 2.5 | |
outer electric leakage switch ( A ) | 25 | 40 | 60 | 100 | 100 | 100 | |
wiring (copper coring mm ) | 3x6 | 3x10 | 3x10 | 3x16 | 3x16 | 3x25 | |
heating area | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ | ~380v50HZ | |
thermal efficiency % | > =98% | > =98% | > =98% | > =98% | > =98% | > =98% | |
rated working pressure Mpa | generally press | generally press | generally press
| generally press | generally press
| generally press | |
LDR series electic heating steam boiler advantages
1. The boiler shall be adopted advanced world technology, featuring the following advantages:
integrated design, unique structure, good shape, small floor area, rapid and simple installation,
as well as excellent maintainability.
2. The boiler shall be applied with microcomputer control, being characterized the following:
high automation, and needless to be persons on duty,and the application of touch-sensitive display to panel operation equipment,shall realize man-machine interface and remote control function which shall be matched.
3. The boiler features automatic safety protection functions such as overheating, over pressure, pen-phase, water deficiency, over current, short circuit, increasing circulating and heating efficiency.
4. The application of ladder type loading and circulating switch to the boiler,
shall avoid the surge of power, uniforming the life of electric heating elements.
5. The boiler shall employ extra thick double insullation structure, being characterized the following: lower heat loss,
100 per cent of heat conversion efficiency,as well as more than 98 per cent of boiler efficiency.
The electric heating pipe shall be used stainless steel with advanced process, being improved long life .
Company Qualification
DONGYUE Machinery Group----Your best choice !!
Dongyue Machinery Group has always been adhering to the management idea of"Integrity, Innovation,Harmony, Security,Altruism",strive to produce highest quality products, built and completed management and quality control system.With broad domestic and international sales network and excellent after-sales service team, we gain the initiative in the fierce market competition, “Dongyue” brand reputation is famous in domestic and international market
.
