Q Series Waste Heat Recovery Steam Boiler

Dongyue Machinery Group Co., Ltd.

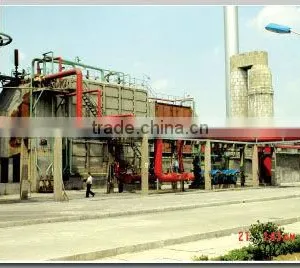

Q Series Waste Heat Recovery Steam Boiler thumbnail-1

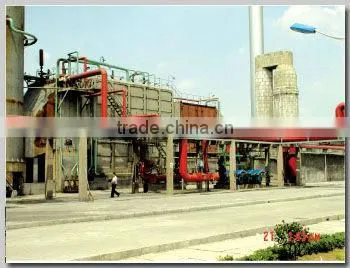

Q Series Waste Heat Recovery Steam Boiler photo-1
US$ 20,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Natural Circulation
Usage:
Industrial
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Natural Circulation
Usage Industrial
Structure Water Tube
Pressure Low Pressure
Style Horizontal
Fuel Coal-fired
Place of Origin Shandong, China
Brand Name dongyue
Output Steam
Certification GB/T19001-200idt ISO9001:2000certified
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Q Series Heat Recovery steam Boiler
1.GB/T19001-200idt ISO9001:2000certified
2.PRC manufacturing qualificationASM
3.50years e

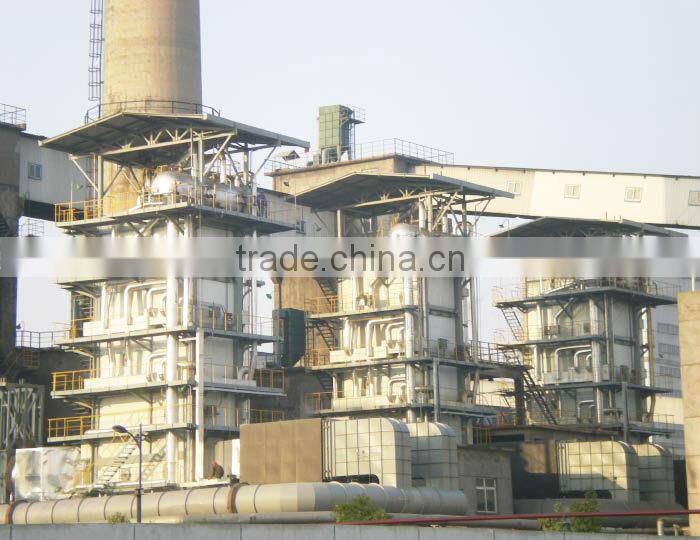

Q Series waste Heat Recovery steam Boiler

Product Features of Q Series  waste  Heat Recovery steam Boiler

 1,The boiler produces steam using waste-heat in the process of production.It can save energy and improve economic performance.



2,The heat recovery boiler has the advantages of compact structure,good sealing performance.no pollution,small resistance,easy to operate,safey and reliability,remain heat can be recovered well.



3,HEAT recovery boiler can be designed according to user's technological parameters.

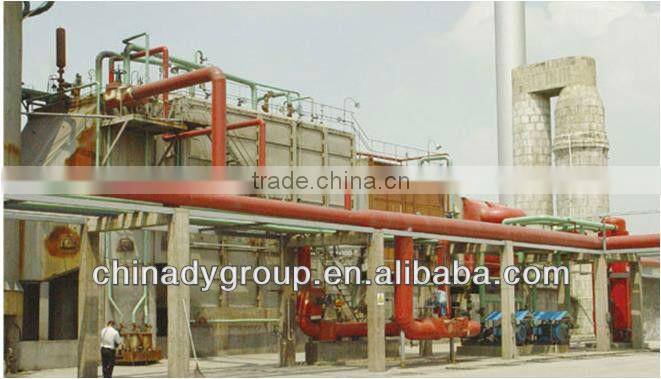

Q Series waste Heat Recovery steam Boiler





Q Series  waste

 Heat Recovery steam Boiler







Main Specifications of Waste Heat Recovery

 Boiler

boiler model

project

Q40/850

-12-1.25

Q50/900-15-1.25/300

Q50/900-15-1.6/300

Q60/900

-20-1.8

Q66/900

-25-1.25/300

rated steam capacity t/h

12

15

20

25

rated steam pressure Mpa

1.25

1.26/1.6

1.8

1.25

fume flow rate Nm 3 /h

40000

50000

60000

66000

Inlet fume temperature°C

850

900

900

900

rated steam temperature °C

194

300

210

300

the body heating surface m 2

638

842.5/871.7

958

1604

supereater heating surface m 2

/

30.5

/

70.5

economizer heating surface m 2

/

/

/

750

air preheater heating surface m 2

/

/

/

501

system resistance Pa

<2000

<1500

<1000

<2000

weight of biggest part for transportation t

38.9

In bulk

In bulk

In bulk

range of application

chemical lines

chemical lines

chemical lines

chemical lines

Main Specifications of Waste Heat  Recovery

steam Boiler

boiler model

project

Q80/900

-25-2.5

Q75/900

-25-3.82/450

Q110/900

-35-8.32/450

Q130/950

-35-3.82/450

Q160/900

-50-3.82/450

rated steam capacity t/h

25

25

35

35

50

rated steam pressure Mpa

2.5

3.82

3.82

3.82

3.82

fume flow rate Nm 3 /h

80000

75000

11000

130000

160000

Inlet fume temperature°C

900

900

900

950

900

rated steam temperature °C

226

450

450

450

450

the body heating surface m 2

1496

1145

1710

1961

2403

supereater heating surface m 2

/

171

185

270

320.5

economizer heating surface m 2

/

1660

830

984

/

air preheater heating surface m 2

/

/

945

/

/

system resistance Pa

<1000

<1500

<1600

<1600

<2000

weight of biggest part for transportation t

In bulk

In bulk

In bulk

In bulk

In bulk

range of application

chemical lines

chemical lines

chemical lines

chemical lines

chemical lines








Q Series waste Heat Recovery  steam Boiler


Main Specifications of Waste Heat   Recovery Boiler

boiler model

project

Q12/300

-1.21.25(Blue gas afterheat recycling)

Q6/1000

-2-1.25(Blue gas afterheat recycling)

Q10/1000

-4-1.25/350

Q15/900

-4-1.25/280

Q15/900-4-1.6/280

rated steam capacity t/h

1.2

2

4

4

rated steam pressure Mpa

0.25

1.25

1.25

1.25/1.6

fume flow rate Nm 3 /h

12000

6000

10000

15000

Inlet fume temperature°C

300

1000

1000

900

rated steam temperature °C

138

194

350

280

the body heating surface m 2

248

70

84

278/292

supereater heating surface m 2

/

/

115

7.1

system resistance Pa

<500

<500

<1000

<1000

weight of biggest part for transportation t

18.2

12

24.5

22.7/24.5

range of application

chemical lines

sulfacid

sulfacid

chemical lines

Main Specifications of Waste Heat steam Boiler

boiler model

project

QCF10/950-5

-2.45/400

Q18/900-6-

1.25/280

Q18/900-6-

1.6/280

Q26/900-8-

1.25/250

Q26/900-8-

1.6/280

Q36/900-10-

1.25/250

Q36/900-10-

1.6/250

rated steam capacity t/h

5

6

8

10

rated steam pressure Mpa

2.45

1.25/1.6

1.25/1.6

1.25/1.6

fume flow rate Nm 3 /h

10000

18000

26000

36000

Inlet fume temperature°C

950

900

900

900

rated steam temperature °C

400

280

250/280

250/280

the body heating surface m 2

150

371.3

418/436

506

supereater heating surface m 2

30

9.46

9.55

12.4

system resistance Pa

<1000

<1000

<1000

<1000

weight of biggest part for transportation t

In bulk

25.4/28.2

32.4

38.8

range of application

pyrite-acid

chemical lines

chemical lines

chemical lines
