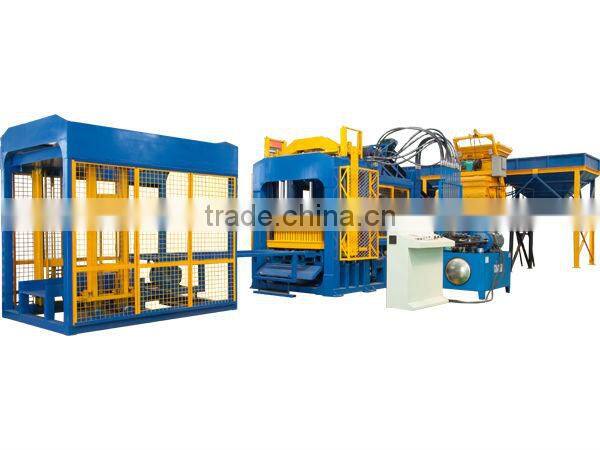

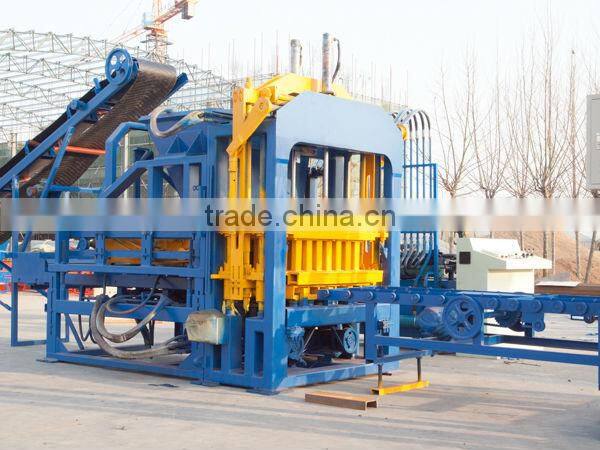

Yeman China Making Machinery/ Hydraulic Machine QT4-15C Block Production Line (40 Projects in India )

    Features & Advantages of full automatic QT4-15C  hydraulic block making machine

1.Solid and Strong Body :  CE standard material, best steel Q235B, CO2 gas protective

welde,the machine is not likely to break.

2.customerized voltage: 220V/240V/ 380V/440V/415 Volts, to confirm to ur standards.

3.cost-effective: German brand Siemens motor, schneider brand switch, high qualityPLC

4.Low labouring cost and user-friendly: hydraulic pressure, easy to operate, reducing laborforce.

 5.Perfect after-sale service: u can get  preinstallation support, Project report support,Project

guidance, Import guidance, and layout guidance,We can dispatch our technician to install machines, do commissioning, and train workers.

Material Proporation of full automatic QT4-15C hydraulic  block making machine

 1. 8-10% cement, 30-40 % sand , 50-60% crushed stone.

 2. 8-10% cement, 30% flyash, 60% sand or stone powder

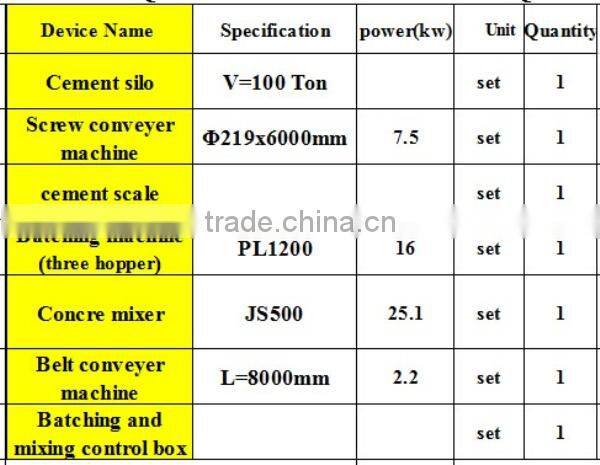

Batching Section

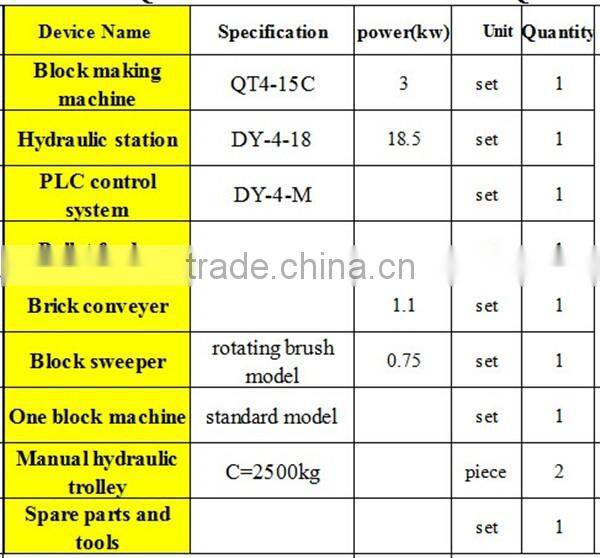

Block Making  Section

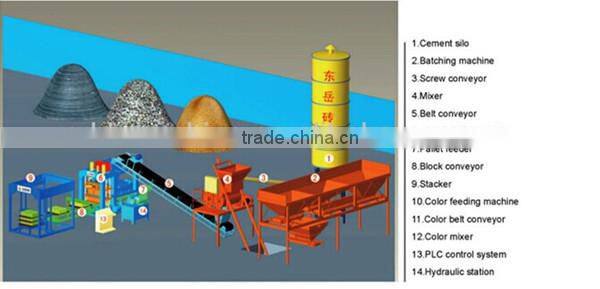

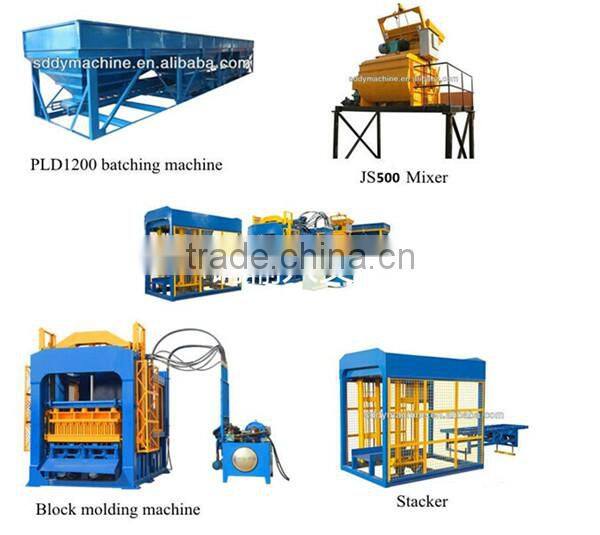

working procedure :

1. Material Batching and  preparation Section:  Raw materials are  discharged to the   mixer from three Hopper batching machine, as there is a hole under ground. The mixed

raw materials are sent to the mixer.

2.Mixing Section: After being mixed evenly with water, raw material are unloaded to

the block making machine through belt conveyor.

3.Block pressin  Section: .Mixed raw material are then sent to the mould case. Under PLC

computer intelligent control. Hydraulic transmission, vibration, shaping takes place.

4.Automatic Stacker Section:After demoulding ,green brick will be unloaded to the bamboo

 pallet.

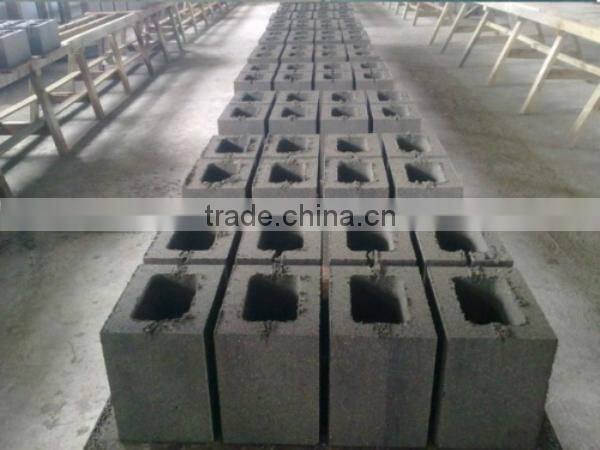

5.Block Curing Section :.Wet product will be conveyed through green block conveyor then

 to the stacker.

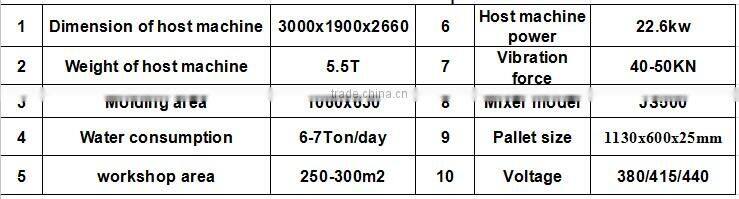

main technical parameter

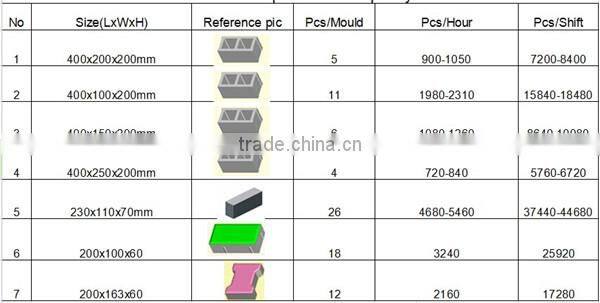

Theoretical Production

Regarding Dongyue Group:1. Long History with Rich experience

          With 20 years experience, .Our block machine has provided more than 1,000 sets of block machines to different customers to make huge profit.

                                                                 Layout Chart of our Factory

 2.Sincere Service Return to Customer



3. Certificate with Honours

 1.Donyue Machinery Group is the first one to get the famous trade mark of China

2.The company was the first in the industry to get ISO9001:2000 certification and theCE marking

  4. Active existence in various exhibition

5. Perfect After-sale Service:

Up to now,we already have office in India, Vietnam,Indonesia.If any problem can not be solved,

we will fly to your place for help.Installation concrete blockmachine& train of workers

For more information, just contact us without hesitation.
