Features & Advantages of full automatic QT4-15C block making machine
1.Solid and Strong Body : CE standard material, best steel Q235B, CO2 gas protective
welde,the machine is not likely to break.
2.customerized voltage: 220V/240V/ 380V/440V/415 Volts, to confirm to ur standards.
3.cost-effective: German brand Siemens motor, schneider brand switch, high qualityPLC
4.Low labouring cost and user-friendly: hydraulic pressure, easy to operate, reducing labor force.
5. Higher Quality: heat-treated mould,the finished blocks are of high strength, large density
6.Perfect after-sale service: u can get preinstallation support, Project report support,Project
guidance, Import guidance, and layout guidance,We can dispatch our technician to install machines, do commissioning, and train workers.
Material Proporation of QT4-15c multi-function hydraulic concrete brick &block making machine
1. 8-10% cement, 30-40 % sand , 50-60% crushed stone.
2. 8-10% cement, 30% flyash, 60% sand or stone powder

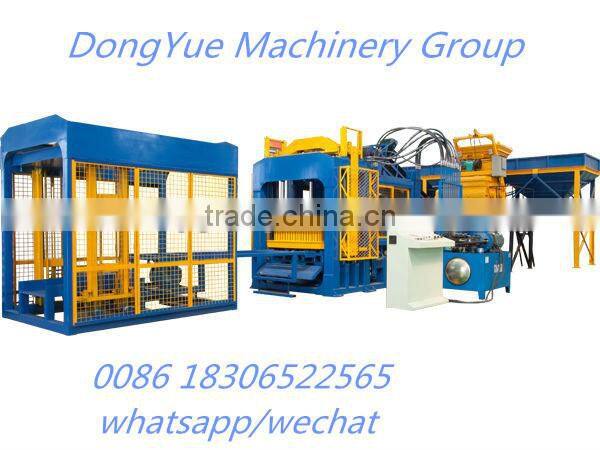

QT4-15c hydraulic full automatic brick &block making machine line
1.Raw materials are discharged to the mixer from three Hopper batching machine, as
there is a hole under ground. The mixed raw materials are sent to the mixer.
2.After being mixed evenly with water, raw material are unloaded to the block making
machine through belt conveyor.
3.Mixed raw material are then sent to the mould case. Under PLC computer intelligent
control. Hydraulic transmission, vibration, shaping takes place.
4.After demoulding ,green brick will be unloaded to the bamboo pallet.
5.Wet product will be conveyed through green block conveyor then to the stacker.
6.Wet brick will be sent to curing place by manual cart or forklift for curing naturally
Batching Section

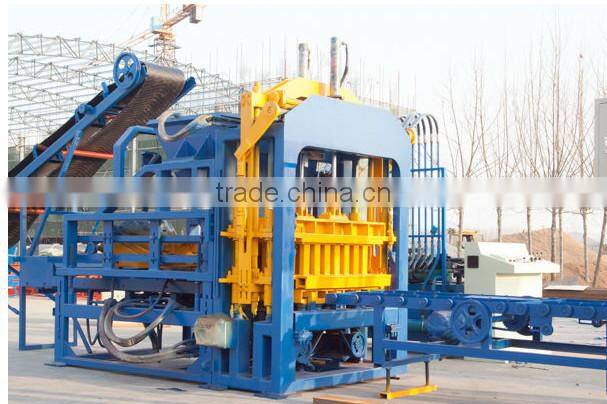

Block Making Machine Section
Main Technical Parameter
Theoretical Production
Regarding Dongyue Group:
1. Long History with Rich experience
With 20 years experience, our customers come from Middle East,South East Asia , Africa, South American and we has exported more than 40 countries.Our block machine has provided more than 1,000 sets of block machines to different customers to make huge profit.
Layout Chart of our Factory
2.Sincere Service Return to Customer
3. Certificate with Honours
1.Donyue Machinery Group is the first one to get the famous trade mark of China
2.The company was the first in the industry to get ISO9001:2000 certification and theCE marking

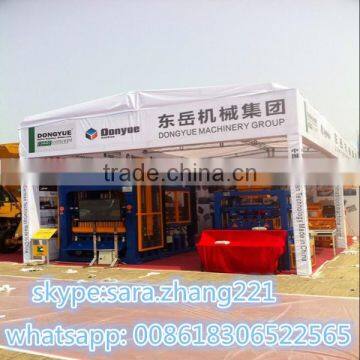

4. Active existence in various exhibition
For more information, just contact us without hesitation.
Website:
Contact: Sara Zhang
Mobile: +8618306522565
(Whatsapp, Viber and Wechat)
Skype: Sara.zhang221
