Hot Selling Aac Aerated Concrete Block Plant for Sourth Africa

AAC block supplier

AAC Aerated Autoclaved Concrete Block Machine line

AAC block forming machine

AAC block /panel production line

1.introduction

Areated concrete block (light block ) is the light and porous buidling material. It has light keeping temperature cant burn and other advantages.it can be made into many kinds of bricks for example:600×200×100,80×80×180,240×115×53,600×200×125),they could be used industry building and common building.they are more and more popular in the world.in the future,they will replace the Clay brick completely.

2.AAC block equipment production  Line/lightweight block machine Advantages
(1)light weight
Areated concrete density is usually 400-700kg/m3,(according the market in produce ),same as

1/3 of clay brick and 1/5 common concrete.So use the Light brick can reduce the weight of the

build more,and also reduce the beam of roof and pillar press best.then you can see,it can save the

material and cost,it also fighting shaking.
(2) keeping temperature
It has many are porous,the delivery hearting coefficient is 0.9-0.22W/(mk),the same as 1/4 or

1/5 of clay brick,so it is best materials now in the world.There are many kinds material,have

lowest waste.
(3)High Strength
High pressure steam-curing autoclaving process gives AAC unmatchable strength to weight ratio, higher than even M150 concrete and far exceeds the Indian Building code requirements

(4)Cost saving
Being lightweight AAC drastically reduces the dead weight of building, resulting into reduction in steel (up to 27%) and cement (up to 20%) structural cost saving.
Being 8 times the size of a clay brick, AAC wall construction involves 1/3 the joints, thus an overall mortar saving up to 66%

3.AAC block equipment production  line  DETAILED PRODUCT DESCRIPTION

1 Product weight is according to 600kg/m3 to control.

2 annual capacity 200,000M3.

3 set raw material proportion: cement 6.5%, raw lime 23%, flyash 68%, gypsum 3%, aluminum paste

powder 350g/M3.

4 water and material rate 0.631

5 one mould product 2.88M3

6 Casting slurry cycle time 5-6 minutes, cut cycle time 5 minutes.

7 casting slurry temperature 38-42 degree

8 body quiet stop. Time is 1.5-2.5housr, temperature 50-90 degree, after quiet stop body strength is 0.15-0.18Mpa

9 Steam curing cycle time, come in and out autoclave about 0.5hour, steam curing cycle time about is 6 hours/1.6Mpa, total 6.5 hours.

4.Cement lime fly ash style aerated block production line  raw material proportion

7.AAC block equipment production line Market Analysis

AAC is becoming more and more popular around the world, from western countries and then to developing

countries. Below Properties make AAC have unmatchable property, especially for high buildings:

1) Extreme Light Weight

2) Large Variety of Sizes

3) High Fire Resistant

4) Excellent Thermal Insulation

5) Great Sound Insulation

6) Moisture Protection

7) Termite Resistant

8) High Workability and Easy Processing

We are the top leader in China on manufacturing the Autoclaved Aerated Concrete Line(AAC) with 65% market share. We have exported our lines to different countries -- Russia, Thailand, Ukraine, Middle East and so on.And we have more than 30 AAC production lines in abroad.We also have office in India and in Indonesia.


We can supply our customer for designning, production, installation, commissioning, training and good after-sale service. Capacity: from 50000 cubic meter to 300,000 cubic meters per year.
Equipments: stocking raw materials, mixing, molding, forming, cutting, evaporating and curing, crane cramp, transporting etc.

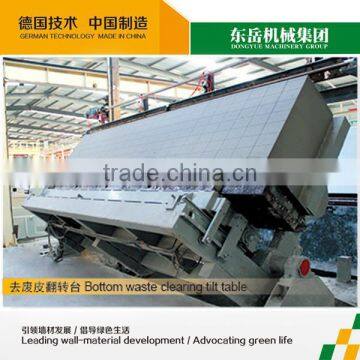

AAC block production line main equipment photos.
