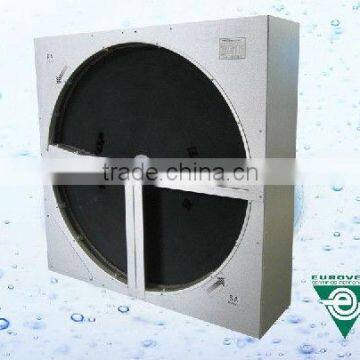

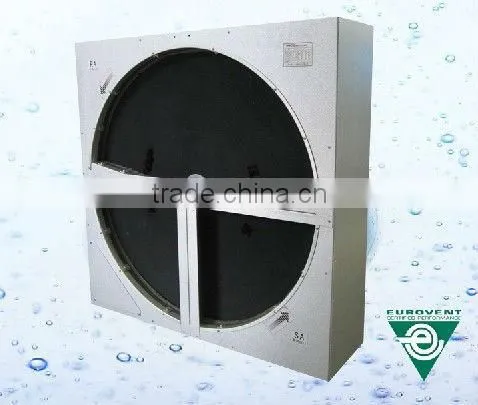

Double Sealing System 3A Molecular Sieve Air Cooled Wheel Exchanger

Double Sealing System 3A Molecular Sieve Air Cooled Wheel Exchanger thumbnail-1
Double Sealing System 3A Molecular Sieve Air Cooled Wheel Exchanger photo-1
US$ 200 - 500,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
HOLTOP
Model Number:
HBT500-5000
Contact Supplier Request Quote Chat Now
Beijing Holtop Artificial Environment Technology Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China ETC
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Beijing, China
Brand Name HOLTOP
Model Number HBT500-5000

Specifications

1.Made of aluminum covering 3A molecular sieve
2..Taiwan, Pakistan, Hungary, India, Malaysia, Japan, Australia, etc.

 Working Principle of  Double sealing system 3A molecular sieve  air cooled wheel exchanger

The aluminum covering 3A molecular sieve rotor diameter 500-5000mm hygroscopic heat wheel  is composed of alveolate heat wheel, case, drive system and sealing parts. The exhaust and outdoor air pass through half of the wheel separately, when the wheel rotates, the heat and moisture are exchanged between the exhaust and outdoor air. The energy recovery efficiency is up to70% to 90%.



  Selection Program

Double sealing system 3A molecular sieve air cooled wheel exchanger

  Selection Chart

Double sealing system 3A molecular sieve air cooled wheel exchanger

Specifications and dimensions

Model         Rotor diameter(mm) Wheel length(mm) Wheel width(mm) Wheel height(mm) Vot./Hz Power(Kw) Kg
HRT-500 500 600 340 600 380v/50Hz 0.09 42
HRT-600 600 700 340 700 380v/50Hz 0.09 59
HRT-700 700 800 340 800 380v/50Hz  0.09 71
HRT-800 800 900 340 900  380v/50Hz  0.09 82
HRT-900 900 1030 340 1030  380v/50Hz  0.09 102
HRT-1000 1000 1130 340 1130  380v/50Hz  0.09 130
HRT-1100 1130 1230 340 1230  380v/50Hz  0.09 151
HRT-1200 1230 1330 340 1330  380v/50Hz 0.18 169
HRT-1300 1330 1430 340 1430  380v/50Hz 0.18 190
HRT-1400 1430 1530 340 1530  380v/50Hz 0.18 205
HRT-1500 1530 1630 340 1630  380v/50Hz 0.18 220
HRT-1600 1630 1730 340 1730  380v/50Hz 0.18 239
HRT-1700 1730 1830 340 1830  380v/50Hz 0.25 266
HRT-1800 1830 1930 340 1930  380v/50Hz 0.25 293
HRT-1900 1930 2030 340 2030  380v/50Hz 0.25 320
HRT-2000 2030 2130 340 2130  380v/50Hz 0.25 370



Model          Rotor diameter(mm) Wheel lengt(mm) Wheel width(mm) Wheel height(mm) Vot./Hz Power(Kw) Weight(Kg)

HRT-2200

2230

2400

340

2400

 380v/50Hz

0.37

420
HRT-2400 2430 2600 340 2600  380v/50Hz 0.37 500
HRT-2600 2630 2800 340 2800  380v/50Hz 0.37 570
HRT-2800 2830 3000 340 3000  380v/50Hz 0.37 860
HRT-3000 3030 3200 340 3200  380v/50Hz 0.55 950
HRT-3200 3230 3400 340 3400  380v/50Hz 0.55 1039
HRT-3400 3430 3600 340 3600  380v/50Hz 0.55 1110
HRT-3600 3630 3800 340 3800  380v/50Hz 0.55 1220
HRT-3800 3830 4000 340 4000  380v/50Hz 0.55 1360
HRT-4000 4030 4200 340 4200  380v/50Hz 0.75 1500
HRT-4200 4230 4400 340 4400  380v/50Hz 0.75 1645
HRT-4400 4430 4600 340 4600  380v/50Hz 0.75 1750
HRT-4600 4630 4800 340 4800  380v/50Hz 1.1 1830
HRT-4800 4830 5000 340 5000  380v/50Hz 1.1 1980
HRT-5000 5030 5200 340 5200  380v/50Hz 1.1

2100



Applications



Rotary heat exchanger can built in air handling unit(AHU)as a main part of the heat recovery section. Usually
side panel of the exchanger casing is unnecessary, except that bypass has been set in AHU.



Double sealing system 3A molecular sieve air cooled wheel exchanger
