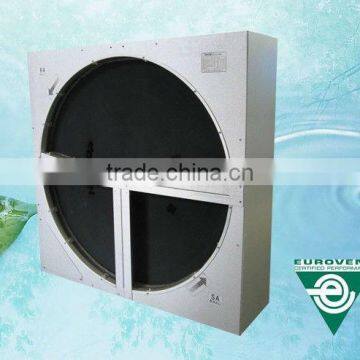

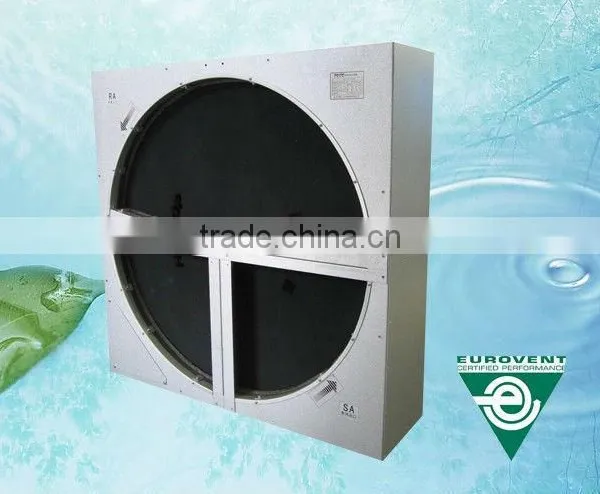

Aluminum Rotary Heat Exchanger, Eurovent and CE Certified With 3A Coating
US$ 500 - 5,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Beijing, China
Brand Name:
HOLTOP
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China ETC
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
380V/3ph/50Hz Aluminium Air to Air Round Hygroscopic Heat Recovery WheelUS$ 200 - 500,000MOQ: 1 Set -
Double Sealing Eurovent Certified Cycling Energy Reclaim WheelUS$ 200 - 3,000MOQ: 1 Set
-
3A Melocular Seive Coating European Certificated Air to Air Energy Recovery WheelUS$ 500 - 5,000MOQ: 1 Set
-
Eurovent Certified Hygroscopic Heat Recovery WheelUS$ 500 - 50,000MOQ: 1 Set
-
3A Coating Air to Air Heat Recovery Wheel, CE Approved and Eurovent CertifiedUS$ 500 - 5,000MOQ: 1 Set
Condition
New
Place of Origin
Beijing, China
Brand Name
HOLTOP
Model Number
HBT500-5000
Structure
Other, CE , EUROVENT, rotor, casing, motor etc
Liquid Flow Rate
1.0-5.5m/s
Maximum Working Pressure
500Pa
Voltage
230V/380V, 220V/380V
Weight
42-2100KG
Dimension(L*W*H)
Dia. 500-5000mm
Power(W)
0.09-1.1KW
Certification
CE
Warranty
1 year
Specifications
1.Wide range diameter: 500-5000mm2.Made of aluminum coating 3A molecular sieve
3.Double Sealing System
4.Eurovent certified
Working principle of Eurovent certified 3A molecular sieve wheel industrial heat exchanger
The aluminum covering 3A molecular sieve rotor diameter 500-5000mm hygroscopic heat wheel is composed of alveolate heat wheel, case, drive system and sealing parts. The exhaust and outdoor air pass through half of the wheel separately, when the wheel rotates, the heat and moisture are exchanged between the exhaust and outdoor air. The energy recovery efficiency is up to70% to 90%.
Selection Program
Selection Chart
Specifications and dimensions
| Model | Rotor diameter(mm) | Wheel length(mm) | Wheel width(mm) | Wheel height(mm) | Vot./Hz | Power(Kw) | Kg |
| HRT-500 | 500 | 600 | 340 | 600 | 380v/50Hz | 0.09 | 42 |
| HRT-600 | 600 | 700 | 340 | 700 | 380v/50Hz | 0.09 | 59 |
| HRT-700 | 700 | 800 | 340 | 800 | 380v/50Hz | 0.09 | 71 |
| HRT-800 | 800 | 900 | 340 | 900 | 380v/50Hz | 0.09 | 82 |
| HRT-900 | 900 | 1030 | 340 | 1030 | 380v/50Hz | 0.09 | 102 |
| HRT-1000 | 1000 | 1130 | 340 | 1130 | 380v/50Hz | 0.09 | 130 |
| HRT-1100 | 1130 | 1230 | 340 | 1230 | 380v/50Hz | 0.09 | 151 |
| HRT-1200 | 1230 | 1330 | 340 | 1330 | 380v/50Hz | 0.18 | 169 |
| HRT-1300 | 1330 | 1430 | 340 | 1430 | 380v/50Hz | 0.18 | 190 |
| HRT-1400 | 1430 | 1530 | 340 | 1530 | 380v/50Hz | 0.18 | 205 |
| HRT-1500 | 1530 | 1630 | 340 | 1630 | 380v/50Hz | 0.18 | 220 |
| HRT-1600 | 1630 | 1730 | 340 | 1730 | 380v/50Hz | 0.18 | 239 |
| HRT-1700 | 1730 | 1830 | 340 | 1830 | 380v/50Hz | 0.25 | 266 |
| HRT-1800 | 1830 | 1930 | 340 | 1930 | 380v/50Hz | 0.25 | 293 |
| HRT-1900 | 1930 | 2030 | 340 | 2030 | 380v/50Hz | 0.25 | 320 |
| HRT-2000 | 2030 | 2130 | 340 | 2130 | 380v/50Hz | 0.25 | 370 |
| Model | Rotor diameter(mm) | Wheel lengt(mm) | Wheel width(mm) | Wheel height(mm) | Vot./Hz | Power(Kw) | Weight(Kg) |
HRT-2200 |
2230 |
2400 |
340 |
2400 |
380v/50Hz |
0.37 |
420 |
| HRT-2400 | 2430 | 2600 | 340 | 2600 | 380v/50Hz | 0.37 | 500 |
| HRT-2600 | 2630 | 2800 | 340 | 2800 | 380v/50Hz | 0.37 | 570 |
| HRT-2800 | 2830 | 3000 | 340 | 3000 | 380v/50Hz | 0.37 | 860 |
| HRT-3000 | 3030 | 3200 | 340 | 3200 | 380v/50Hz | 0.55 | 950 |
| HRT-3200 | 3230 | 3400 | 340 | 3400 | 380v/50Hz | 0.55 | 1039 |
| HRT-3400 | 3430 | 3600 | 340 | 3600 | 380v/50Hz | 0.55 | 1110 |
| HRT-3600 | 3630 | 3800 | 340 | 3800 | 380v/50Hz | 0.55 | 1220 |
| HRT-3800 | 3830 | 4000 | 340 | 4000 | 380v/50Hz | 0.55 | 1360 |
| HRT-4000 | 4030 | 4200 | 340 | 4200 | 380v/50Hz | 0.75 | 1500 |
| HRT-4200 | 4230 | 4400 | 340 | 4400 | 380v/50Hz | 0.75 | 1645 |
| HRT-4400 | 4430 | 4600 | 340 | 4600 | 380v/50Hz | 0.75 | 1750 |
| HRT-4600 | 4630 | 4800 | 340 | 4800 | 380v/50Hz | 1.1 | 1830 |
| HRT-4800 | 4830 | 5000 | 340 | 5000 | 380v/50Hz | 1.1 | 1980 |
| HRT-5000 | 5030 | 5200 | 340 | 5200 | 380v/50Hz | 1.1 | 2100 |
Applications
Rotary heat exchanger can built in air handling unit(AHU)as a main part of the heat recovery section. Usually
side panel of the exchanger casing is unnecessary, except that bypass has been set in AHU.
