Home > Products > Rotary Heat Exchanger > 380V/3ph/50Hz aluminium air to air Round hygroscopic heat recovery wheel

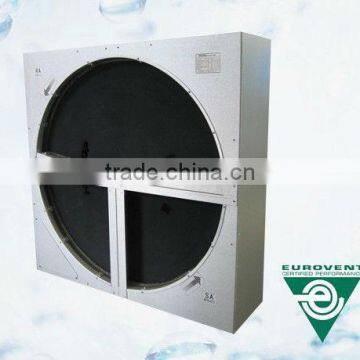

380V/3ph/50Hz aluminium air to air Round hygroscopic heat recovery wheel
- 200 Set / Sets per Month
- Tianjin China ETC
- T/T Credit Card
- Double sealing Eurovent certified Cycling energy reclaim wheel
- 3A melocular seive coating European certificated air to air energy recovery wheel
- Eurovent certified hygroscopic heat recovery wheel
- 3A coating air to air heat recovery wheel, CE approved and Eurovent certified
- aluminum rotary heat exchanger, 90% high efficiency heat exchanger
- Self-cleaning double sealing system AHU part aluminum foils air to air vent
Product Details
Place of Origin: | Beijing, China | Brand Name: | Holtop | Model Number: | HRT-500~5000 |
Structure: | Other, wheel exchanger, rotor, casing, motor etc | Liquid Flow Rate: | 1.5-5.5m/s | Maximum Working Pressure: | 500Pa |
Certification: | CE |
Packaging Details
wooden case, Polyethylene foams
Product Description
Specifications
1 Dehumidifier wheel exchanger2.Made of aluminum foils coated with 3A molecular sieve moisture
3.Manual set of rotary speed

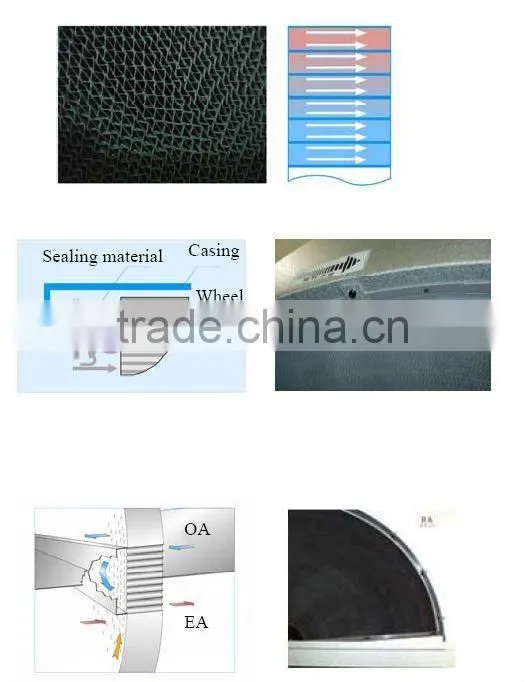

Features and specifications of 380V/3ph/50Hz 3A molecular sieve energy saving wheel exchanger
1.Double Sealing System
2..Purge Sector
3. Laminar Flow Channels
Specifications and dimensions
Model | Rotor diameter(mm) | Wheel length(mm) | Wheel width(mm) | Wheel height(mm) | Vot./Hz | Power(Kw) | Kg |
HRT-500 | 500 | 600 | 340 | 600 | 380v/50Hz | 0.09 | 42 |
HRT-600 | 600 | 700 | 340 | 700 | 380v/50Hz | 0.09 | 59 |
HRT-700 | 700 | 800 | 340 | 800 | 380v/50Hz | 0.09 | 71 |
HRT-800 | 800 | 900 | 340 | 900 | 380v/50Hz | 0.09 | 82 |
HRT-900 | 900 | 1030 | 340 | 1030 | 380v/50Hz | 0.09 | 102 |
HRT-1000 | 1000 | 1130 | 340 | 1130 | 380v/50Hz | 0.09 | 130 |
HRT-1100 | 1130 | 1230 | 340 | 1230 | 380v/50Hz | 0.09 | 151 |
HRT-1200 | 1230 | 1330 | 340 | 1330 | 380v/50Hz | 0.18 | 169 |
HRT-1300 | 1330 | 1430 | 340 | 1430 | 380v/50Hz | 0.18 | 190 |
HRT-1400 | 1430 | 1530 | 340 | 1530 | 380v/50Hz | 0.18 | 205 |
HRT-1500 | 1530 | 1630 | 340 | 1630 | 380v/50Hz | 0.18 | 220 |
HRT-1600 | 1630 | 1730 | 340 | 1730 | 380v/50Hz | 0.18 | 239 |
HRT-1700 | 1730 | 1830 | 340 | 1830 | 380v/50Hz | 0.25 | 266 |
HRT-1800 | 1830 | 1930 | 340 | 1930 | 380v/50Hz | 0.25 | 293 |
HRT-1900 | 1930 | 2030 | 340 | 2030 | 380v/50Hz | 0.25 | 320 |
HRT-2000 | 2030 | 2130 | 340 | 2130 | 380v/50Hz | 0.25 | 370 |
Model | Rotor diameter(mm) | Wheel lengt(mm) | Wheel width(mm) | Wheel height(mm) | Vot./Hz | Power(Kw) | Weight(Kg) |
HRT-2200 | 2230 | 2400 | 340 | 2400 | 380v/50Hz | 0.37 | 420 |
HRT-2400 | 2430 | 2600 | 340 | 2600 | 380v/50Hz | 0.37 | 500 |
HRT-2600 | 2630 | 2800 | 340 | 2800 | 380v/50Hz | 0.37 | 570 |
HRT-2800 | 2830 | 3000 | 340 | 3000 | 380v/50Hz | 0.37 | 860 |
HRT-3000 | 3030 | 3200 | 340 | 3200 | 380v/50Hz | 0.55 | 950 |
HRT-3200 | 3230 | 3400 | 340 | 3400 | 380v/50Hz | 0.55 | 1039 |
HRT-3400 | 3430 | 3600 | 340 | 3600 | 380v/50Hz | 0.55 | 1110 |
HRT-3600 | 3630 | 3800 | 340 | 3800 | 380v/50Hz | 0.55 | 1220 |
HRT-3800 | 3830 | 4000 | 340 | 4000 | 380v/50Hz | 0.55 | 1360 |
HRT-4000 | 4030 | 4200 | 340 | 4200 | 380v/50Hz | 0.75 | 1500 |
HRT-4200 | 4230 | 4400 | 340 | 4400 | 380v/50Hz | 0.75 | 1645 |
HRT-4400 | 4430 | 4600 | 340 | 4600 | 380v/50Hz | 0.75 | 1750 |
HRT-4600 | 4630 | 4800 | 340 | 4800 | 380v/50Hz | 1.1 | 1830 |
HRT-4800 | 4830 | 5000 | 340 | 5000 | 380v/50Hz | 1.1 | 1980 |
HRT-5000 | 5030 | 5200 | 340 | 5200 | 380v/50Hz | 1.1 | 2100 |
Selection software
Company Profile
Holtop is the leading manufacturer in China specializing in the production of air to air heat recovery equipments. Founded in 2002, it has dedicated to the research and technology development in the field of heat recovery ventilation and energy saving air handling equipments for more than 10 years.
Products
Through years of innovation and development, Holtop can supply a full range of products, up to 20 series and 200 specifications. The product range mainly covers: Heat Recovery Ventilators, Energy Recovery Ventilators, Rotary Heat Exchangers, Plate Heat Exchangers and Air Handling Units.
Quality
Holtop assures high quality products with professional R&D team, first-class production facilities and advanced management system. Holtop owns numeral control machines, national approved labs, and has successfully passed the certifications of ISO9001, ISO14001, OHSAS18001, CE and EUROVENT.
Numbers
Holtop has 400 employees and covers an area of more than 30,000 square meters. Annual production ability of heat recovery equipment reaches 100,000 sets. Holtop supplies OEM products for Midea, LG, Hitachi, McQuay, York, Trane and Carrier. As an honor, Holtop was the qualified supplier for Beijing Olympics 2008 and Shanghai World Exposition 2010.
Mission
Holtop has established business relationships with major countries in Asia, Europe and North America, and earned a worldwide reputation for providing reliable products, knowledgeable application expertise and responsive support and services.
Holtop will always committed to the mission of delivering highly efficient and energy saving products and solutions to reduce environmental pollution, to ensure people's health and protect our earth.
