Help CenterGravel Handing Equipment Conveyor Machine
Related Products
-
Industrial Belt Conveyer SystemUS$ 1,000 - 7,000MOQ: 1 Unit -
Sand Powder Belt Conveyer SystemUS$ 1,000 - 7,000MOQ: 1 Unit
-
Low Price Coal Powder Belt Conveyer SystemUS$ 1,000 - 7,000MOQ: 1 Unit
-
Tongxin Food Powder Bucket Elevator SystemUS$ 300 - 1,000MOQ: 1 Set
-
Belt ConveyerUS$ 1,000 - 5,000MOQ: 1 Set
Specifications
-For food,grain,mining,coal,sand,metal powder,packaged prodcuct-Long distance to 40m
-Large capacity,quick speed,low price

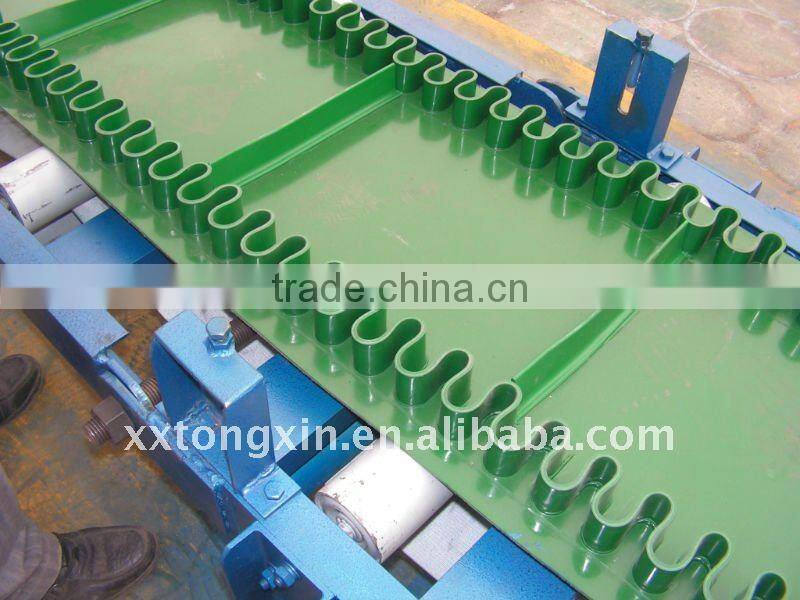

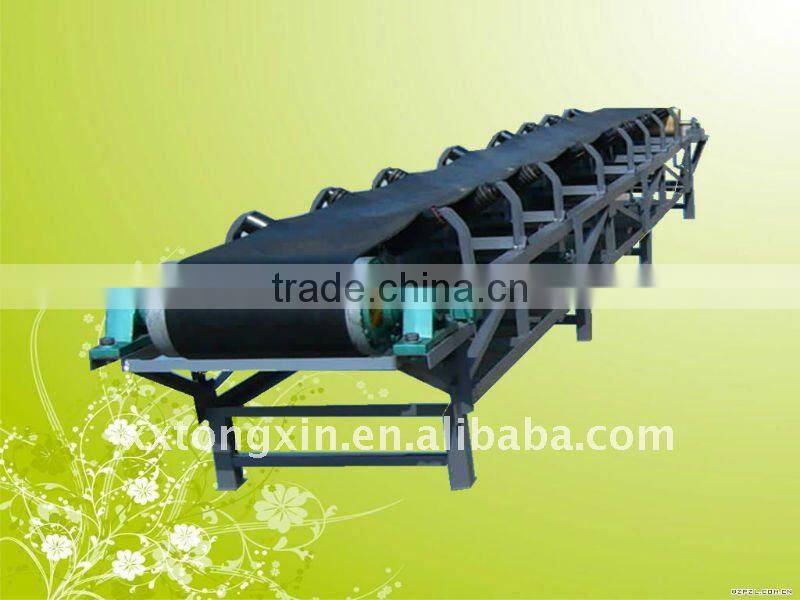

≡The pictures
≡Component
Driven Wheel, Bendwheel, Belt, Surpport, Motor, Reduction Gear,Top Roller,Bottom Roller.
≡Material
belt: rubber+canvas/plastic+canvas
trestle: steel/stainless steel
Roller:Carbon Steel
≡Features
•Conveyor has big transport capacity, long distance, but also completing a number of process operation while in the transportation process, it is widely used.
•Belt conveyor for conveying bulk whose density is less than 1.67 t /m3 .
•Sent material temperature is less than 60 °C.
≡Transport style
Conveyor can be horizontal, tilt and vertical transmission, but also the composition of space transmission lines, transmission lines are generally fixed.
≡Parameters
|
Belt Width (mm) |
Belt Length (m) |
Power (kw) |
Conveyor speed (m/s) |
Throughput (t /h) |
500 |
≤12 |
3 |
1.3-1.6 |
45-100 |
12-20 |
4-5.5 |
|||
20-30 |
5.5-7.5 |
|||
650 |
≤12 |
4 |
1.3-1.6 |
70-120 |
12-20 |
5.5 |
|||
20-30 |
7.5-11 |
|||
|
800 |
≤6 |
4 |
1.3-1.6 |
120-180 |
6-15 |
5.5 |
|||
15-30 |
7.5-15 |
|||
|
1000 |
≤10 |
5.5 |
1.3-2.0 |
160-250 |
10-20 |
7.5-11 |
|||
20-40 |
11-12 |
|||
|
1200 |
≤10 |
7.5 |
1.3-2.0 |
200-400 |
10-20 |
11 |
|||
20-40 |
15-30 |
