Specifications
-For food,grain,mining,coal,sand,metal powder,packaged prodcuct-Long distance to 40m
-Large capacity,quick speed,low price

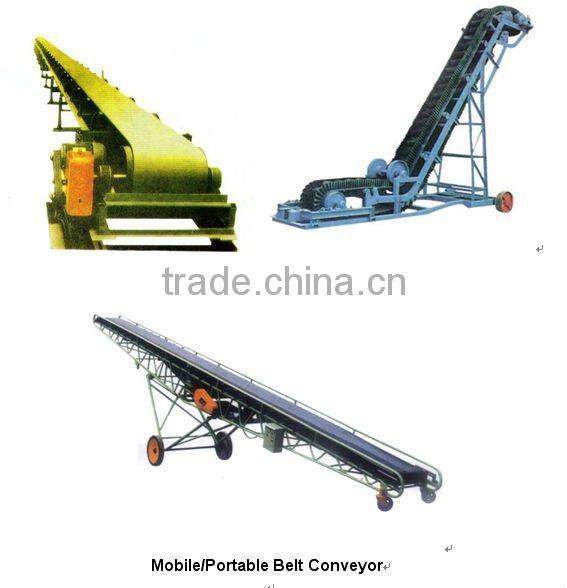

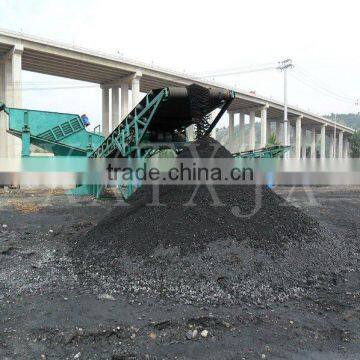

≡The pictures
≡Component
Driven Wheel, Bendwheel, Belt, Surpport, Motor, Reduction Gear,Top Roller,Bottom Roller.
≡Material
belt: rubber+canvas/plastic+canvas
trestle: steel/stainless steel
Roller:Carbon Steel
≡Features
•Conveyor has big transport capacity, long distance, but also completing a number of process operation while in the transportation process, it is widely used.
•Belt conveyor for conveying bulk whose density is less than 1.67 t /m3 .
•Sent material temperature is less than 60 °C.
≡Transport style
Conveyor can be horizontal, tilt and vertical transmission, but also the composition of space transmission lines, transmission lines are generally fixed.
≡Parameters
Belt Width (mm) | Belt Length (m) | Power (kw) | Conveyor speed (m/s) | Throughput (t /h) |
500 | ≤12 | 3 |
1.3-1.6 |
45-100 |
12-20 | 4-5.5 | |||
20-30 | 5.5-7.5 | |||
650 | ≤12 | 4 |
1.3-1.6 |
70-120 |
12-20 | 5.5 | |||
20-30 | 7.5-11 | |||
800 | ≤6 | 4 | 1.3-1.6 | 120-180 |
6-15 | 5.5 | |||
15-30 | 7.5-15 | |||
1000 | ≤10 | 5.5 | 1.3-2.0 | 160-250 |
10-20 | 7.5-11 | |||
20-40 | 11-12 | |||
1200 | ≤10 | 7.5 | 1.3-2.0 | 200-400 |
10-20 | 11 | |||
20-40 | 15-30 |
