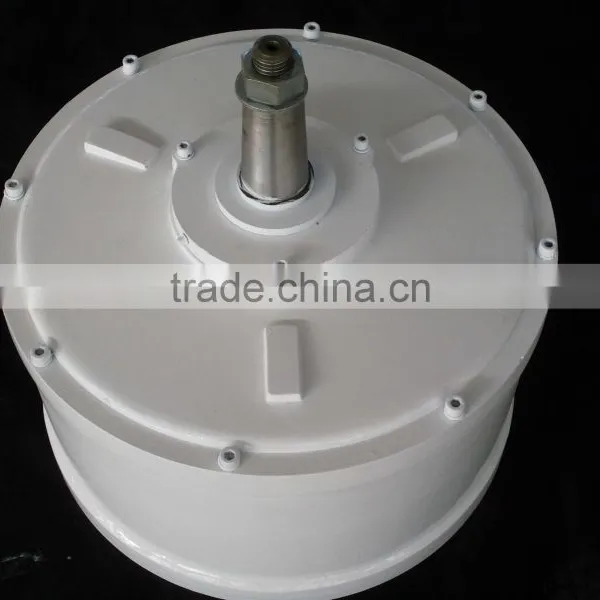

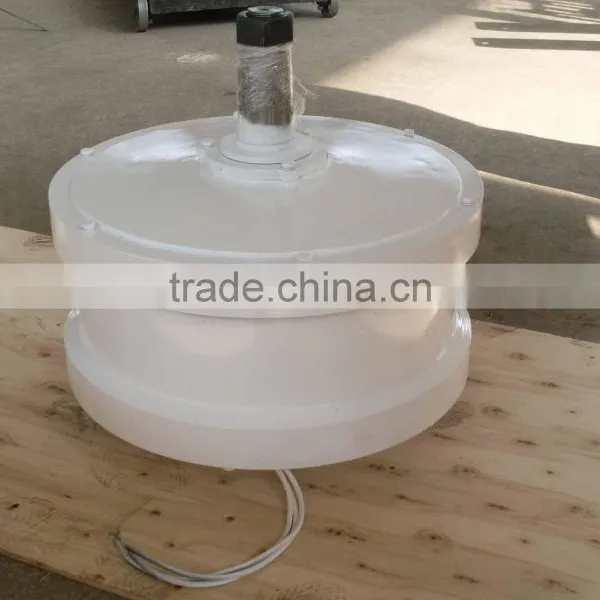

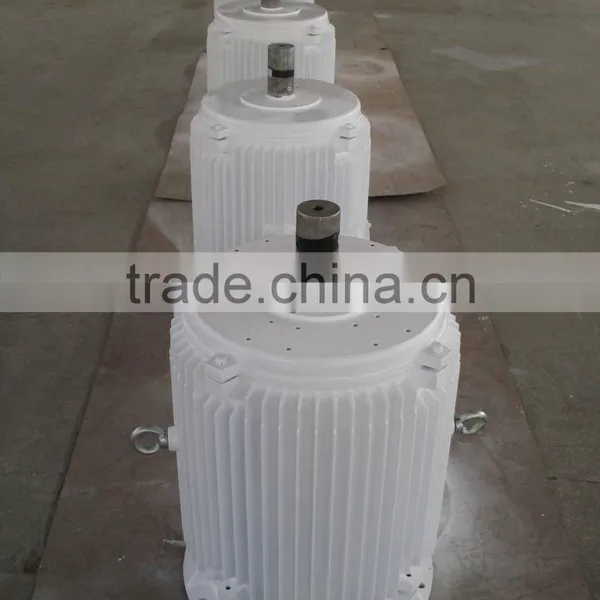

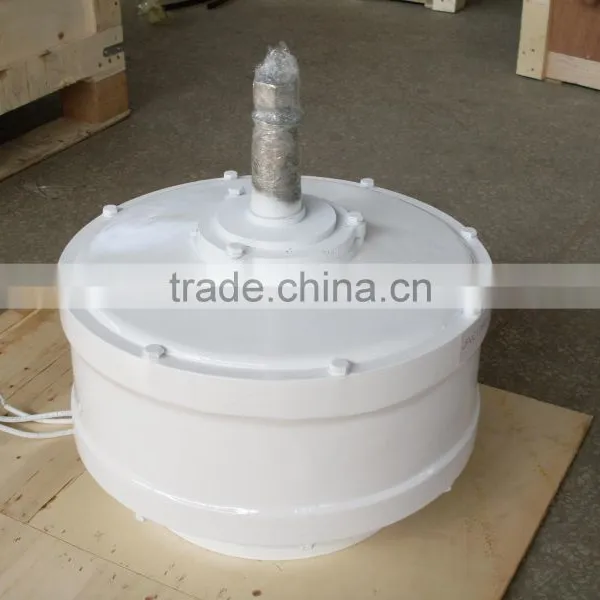

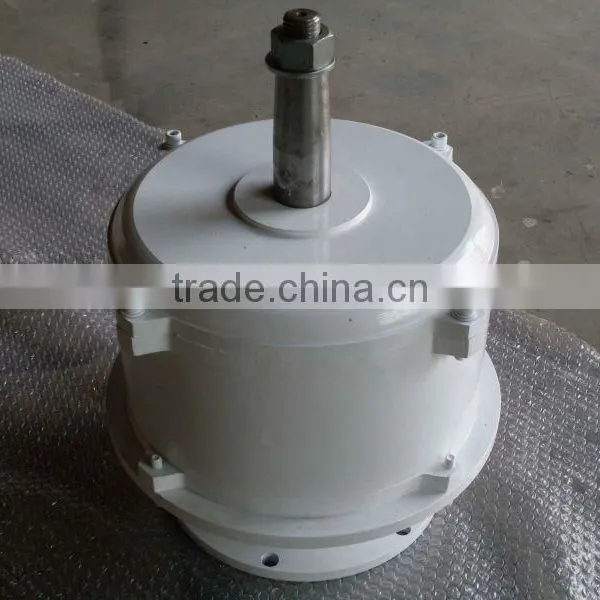

300W,500W,1KW,2KW,3KW,5KW,10KW,15KW Low Rpm Wind Turbine PMA

Name: 300W,500W,1KW,2KW,3KW,5KW,10KW,15KW Low Rpm Wind Turbine PMA
Brand: JINFAN
SKU: 140474946
Availability: InStock

US$ 440 - 9,600 MOQ: 1 Unit

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

JINFAN

Model Number:

300W-15KW

Qingdao Jinfan Energy Science & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name JINFAN

Model Number 300W-15KW

Type Wind Power Generator

300W,500W,1KW,2KW,3KW,5KW,10KW,15KW low rpm wind turbine PMA

• rated power:

300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,5KW50RPM,5KW100RPM,

10KW50RPM,15KW125RPM

• rated voltage: 12VAC/24VAC/48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC

• generator style: synchronous three phase permanent magnet AC generator

• magnetic steel material:38SH NdFeB

• Housing material: cast iron / aluminium

• shaft material:45# steel

• class of insulation:F

• grade of protection: IP54

Remark: we can design and produce the non-standard generatos according to customers's requirements.

model	JFVC-1KW (100rpm)
generator type	synchronous permanent magnet 3 phase AC
magnetic steel material	38SH NdFeB
class of insulation	F
housing material	aluminium
shaft material	45# steel
rated power(KW)	1
rated rotate speed(RPM)	100
rated voltage(VAC)	24/48/96/VAC/220/VAC
grade of protection	IP54
Weight(KG)	55
start up torque(N.M)	5.88
rated torque at rated speed(N.M)	143
number of poles	22

model	JFVC-3KW(100rpm)
generator type	synchronous permanent magnet 3 phase AC
magnetic steel material	38SH NdFeB
class of insulation	F
housing material	aluminium
shaft material	45# steel
rated power(KW)	3
rated rotate speed(RPM)	100
rated voltage(VAC)	48/96/120/220/240/360/380
grade of protection	IP54
weight(KG)	115
start up torque(N.M)	8.82
rated torque at rated speed(N.M)	380
number of poles	32

model	JFVC-5KW(100rpm)
generator type	synchronous permanent magnet 3 phase AC
magnetic steel material	38SH NdFeB
class of insulation	F
housing material	aluminium
shaft material	45# steel
rated power(KW)	5
rated rotate speed(RPM)	100
rated voltage(VAC)	48/96/120/220/240/360/380
grade of protection	IP54
weight(KG)	120
start up torque(N.M)	14.7
rated torque at rated speed(N.M)	576
number of poles	32
