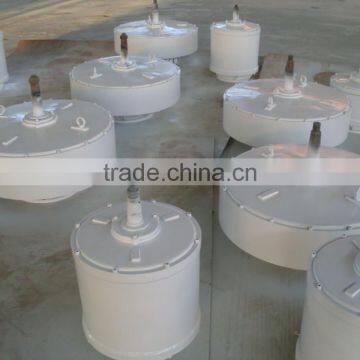

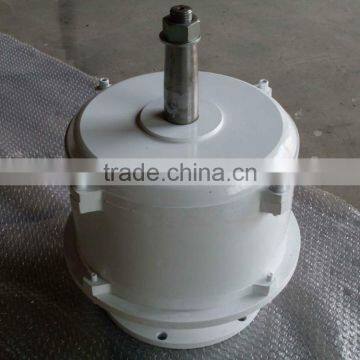

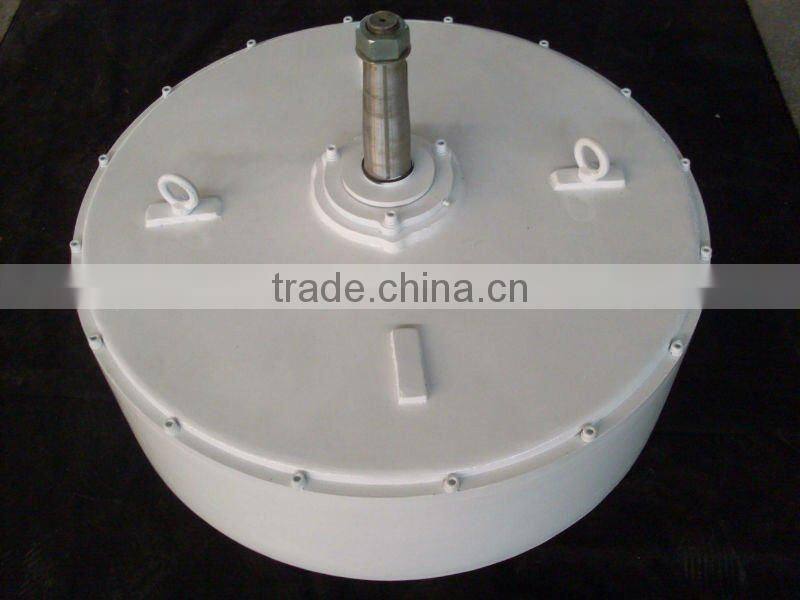

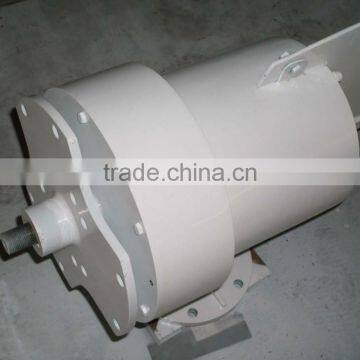

PMG / PMA / alternator for wind turbine
VERTICAL WIND TURBINE GENERATOR /ALTERNATOR/MOTOR:
Model:JFVC-300W,JFVC-500W,JFVC-1KW,JFVC-2KW,JFVC-3KW,JFVC-5KW,JFVC-10KW,JFVC-15KW
Rated power:
300W80RPM,500W80RPM,1KW50RPM,1KW100RPM,2KW50RPM,3KW50RPM,3KW100RPM,5KW50RPM,5KW100RPM,10KW50RPM,10KW100RPM,15KW125RPM
Rated voltage: 12VAC/24VAC/48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
Generator style:permanent magnetism 3 phase AC
Magnetic steel material:38SH NdFeB
Class of insulation:B
Case material: cast iron / aluminium
Protection Grade:IP54
Remark: we can design and produce the non-standard generatos according to customers's requirements.

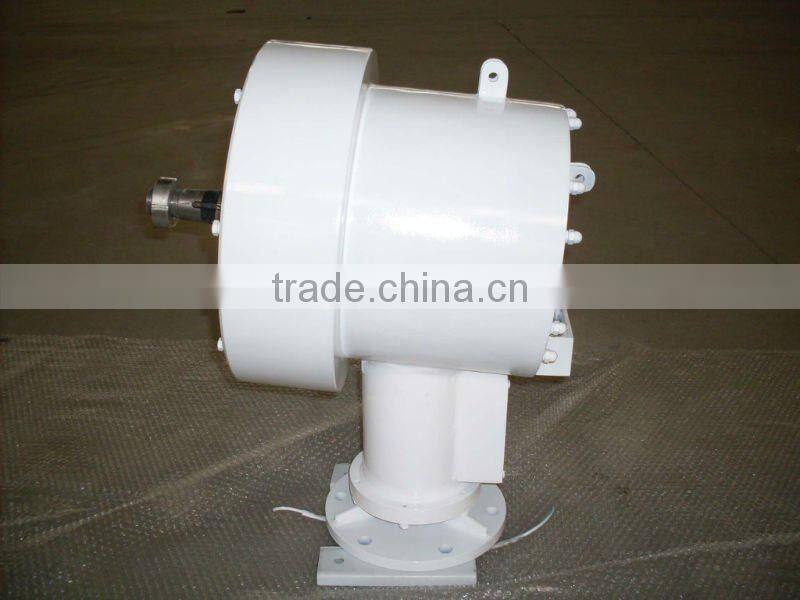

HORIZONTAL WIND TURBINE GENERATOR /ALTERNATOR/MOTOR:
Model:,JFNH-1KW,JFNH-2KW,JFNH-3KW,JFNH-5KW,JFNH-10KW
Rated power:1KW430RPM,2KW330RPM,3KW320RPM,5KW320RPM,10KW200RPM
Rated voltage: 24VAC/48VAC/96VAC/120VAC/220VAC/240VAC/360VAC/380VAC
Generator style:permanent magnetism 3 phase AC
Magnetic steel material:38SH NdFeB
Class of insulation:B
Case material: aluminium / Q235
Protection Grade:IP54
Advantage:
There are Centrifugal wheel intelligent deceleration device in front of inside of generator. It can make the wind turbine will not overspeed running at large wind spped, the generator can output power normally within the range of rated rotate speed,also avoid wind turbine braking or stopping because of large wind speed.The efficiency and safety of full system have been improved for much,and also can protect the controller and inverter,extend the working life of batteries.
Qingdao Jinfan Energy Science & Technology Co., LTD. is a professional wind turbine manufacturer.
Our hot products have following four series:
1.Vertical axis wind turbine:300W,500W,1KW,2KW,3KW,5KW
2.PMG:300W-15KW
3.Horizontal axis wind turbine:1KW,2KW,3KW,5KW,10KW
4.Wind and solar hybrid (street lamp) system
