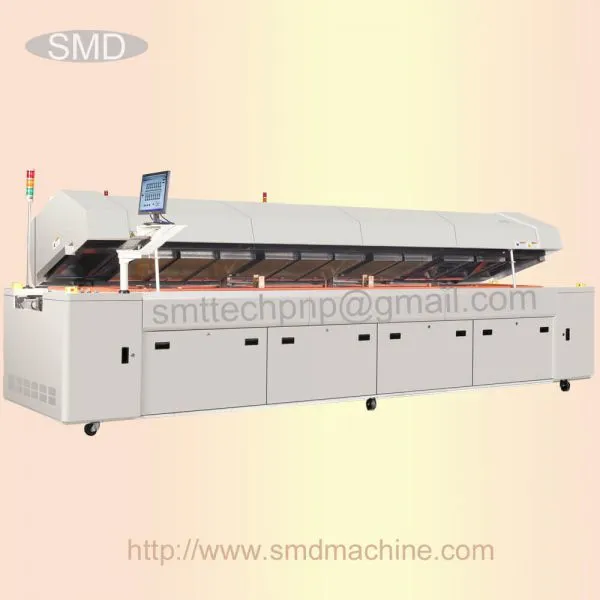

large size reflow soldering oven machine
Specification:
Model |
Jaguar F8 |
|
|
Heating System |
Number of heating zones |
Up 8/ bottom 8 |
Number of cooling zones |
2 |
|
Length of heating zones |
3100mm |
|
Heating mode |
Hot air |
|
Cooling Mode |
Forced air cooling |
|
Exhaust Volume |
10m³/min * 2 exhausts |
|
|
Conveyor System |
Max. Width of PCB |
450mm |
Mesh belt width |
500mm |
|
Transmission Direction |
L→R(option: R→L) |
|
Transmission Net Height |
900±20mm |
|
Transmission type |
Mesh and chain |
|
Range of rail width |
50-400mm |
|
Conveyor speed |
0-1800mm/min |
|
Auto/manual Lubrication |
Standard |
|
Fixed rail side |
Front rail fixed(option: rear rail fixed) |
|
Components high |
Top and bottom 25mm |
|
|
Control system |
Power supply |
5 line 3 phase 380V 50/60HZ |
Total power |
48KW |
|
Starting power |
40KW |
|
Normal power consumption |
8KW |
|
Warming time |
20 mins |
|
Temp. setting range |
From room temp. To 300℃ |
|
Temp. control method |
PID close loop control & SSR driving |
|
Temp. control precision |
±1℃ |
|
Temp. deviation on PCB |
±2℃ |
|
Data storage |
Process Data and status storage(80GB) |
|
Nozzle plate |
Aluminum Alloy Plate |
|
Abnormal Alarm |
Abnormal temperature (extra-high/extra-low temperature) |
|
Board dropped alarm |
Tower light: Yellow-warming, Green-normal, Red-abnormal |
|
|
General |
Dimension(L*W*H) |
5300*1320*1490mm |
Weight |
2000kg |
|
Color |
Computer gray |
|
