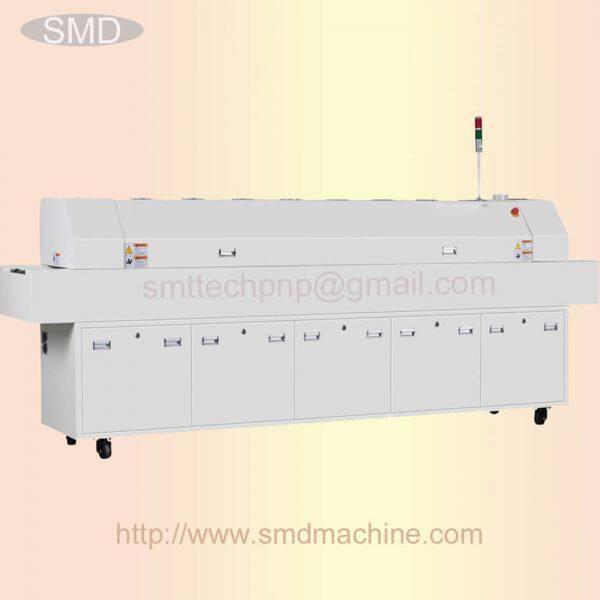

Full hot air reflow oven soldering machine
1.It adopts imported thermostat control which owns fuzzy control and PID intelligent precision control system.It can fast response the changes in external heat and ensure more temperature balanced by PID intelligent operation and automatic control heating .
2. Using thermocouple imported from Taiwan by each temperature zone, it can fast and sensitive induct the changes in each temperature zone, transfer and control timely, compensate the temperature balance in each zone .
3 .Special SSR solid state relay matched with dedicated radiator improve the heat efficiency greatly and prolong the lifetime effectively. No contact output and fuzzy control function by thermostat, can monitoring the changes of outside temperature and calorific value, controlling the heating device by minimum pulse, ensuring the high precision of the temperature control & the uniform temperature in internal and the length ,direction, temperature distribution, all of these meet IPC standards .
4. Power is abundant, heat up fast, it’s only need 20 minutes from room temperature to constant temperature.
5 .Failure diagnosis and sound light alarm.
6. Delay shutdown production function, uniform cooling after the shutdown: prevent component deformation.
Specification:
Model |
JAGUAR M6 |
JAGUAR M8 |
||
|
Heating System |
Number of heating zones |
UP 6/BOTTOM6 |
UP 8/BOTTOM8 |
|
Length of heating zones |
2500MM |
2900MM |
||
Cooling zone |
Up 1 bottom 1 |
Up 1 bottom 1 |
||
Heating mode |
hot air |
hot air |
||
Cooling Mode |
Force air |
Force air |
||
Mesh belt width |
350/400mm |
350/400mm |
||
Transmission Direction |
L→R(or R→L) |
L→R(or R→L) |
||
Transmission Net Height |
880±20mm |
880±20mm |
||
Transmission type |
Mesh and chain |
Mesh and chain |
||
Range of rail width |
0-250/300mm |
0-250/300mm |
||
Conveyor speed |
0-1000mm/min |
0-1500mm/min |
||
Auto/manual Lubrication |
standard |
standard |
||
Upper hood method |
Manual(option:auto) |
|||
Fixed rail side |
Front rail fixed(option: rear rail fixed) |
|||
Components high |
Top and bottom 25mm |
|||
|
Control system |
Power supply |
5line 3phase 380V 50/60Hz |
||
Total power |
28kw |
38kw |
||
Starting power |
28kw |
28kw |
||
Normal power consumption |
4KW |
5kw |
||
Warming time |
About 20 mins |
|||
Temp. setting range |
Room temperature-300℃ |
|||
Temp. control method |
PLC & PC |
|||
Temp. control precision |
±1℃ |
|||
Temp. deviation on PCB |
±2℃ |
|||
Data storage |
Process Data and status storage(80GB) |
|||
Nozzle plate |
Aluminum Alloy Plate |
|||
Abnormal Alarm |
Abnormal temperature. (extra-high/extra-low temp.) |
|||
Board dropped alarm |
Tower light: Yellow-warming, Green-normal, Red-abnormal |
|||
machine with long heating zones make sure the pcb soldering quality.
different machine with different features. different machine with different function.
we can also customize according our customer's requirement.
