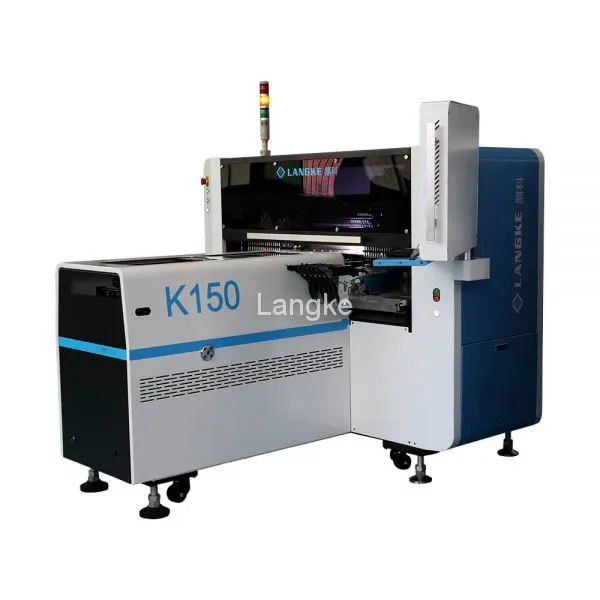

SMT high speed pick and place chip mounter machine
RFQ：
1. What is the MOQ？
1 set.
2. How long for the warranty?
12 months.
3. How can I get the support for the after-sales service?
If you have any using problem for the machines, we are welcome you to make a call or send email to us for the help.
We promise that we will offer the spare part free for our customer if any part is broken when the machine still in the guarantee.
4. What is the payment terms?
We accept T/T, Western union etc…
But we request that all the payment should be received before we ship the machine to you.
5. What is the trade term your company offer?
We accept FOB Shenzhen, CFR，CIF
Description:
1.Our most cost-effective LED mounter,equiped with 2 modules and 36 electric feeders,can mount 2 kinds of component meanwhile,the actual capacity can reach 150K CPH.
2.Adopt imported linear motor and grating ruler to locate the position, make sure the machine mounting with high speed and high accuracy.We promise to provide 2 years guarantee for the linear motor.
3.Integrated machine frame,welded into a whole by industrial class steel tubes and panels,greatly increase the machine's stability.
Specification:
| Item |
Parameter |
| Mounting head |
2 arms, 36 pcs nozzles, 18 nozzles per arm |
| Mounting component range |
0805,1206,2835,3014,3528,5050,5630,5730,RGB and other LEDstrip material. |
| Mounting Pattern |
Group picking and group mounting |
| Driver of mounting head(Y Axis) |
Linear motor(magnetic) |
| Mounting height |
13mm |
| PCB position |
CCD vision and MARK locating |
| PCB conveying speed |
320MM/S |
| PCB conveying direction |
Front to Back |
| Mounting accuracy |
±0.05MM |
| Min mounting distance |
13mm |
| Mounting speed |
75000CPH*2=150000CPH(Using 36 pieces nozzle condition) |
| Rail size |
1300MM(L)-340mm(W) |
| PCB size |
1200MM(L)-320mm(W) |
| FEEDER amount |
18(8mm)*2=36pcs |
| PCB thickness |
0.5mm-5.0mm |
| Power supply | 220V AC 50HZ 2 phase |
| Max power consumption |
3KW |
| weight | 1500kg |
Machine detailed:

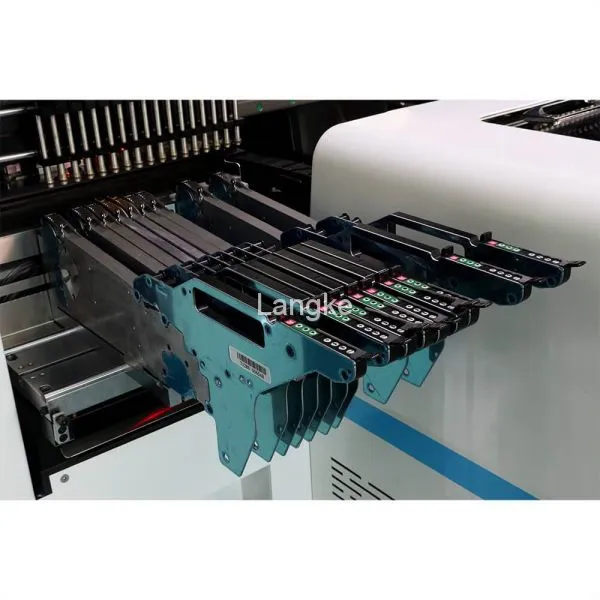

Guide rail

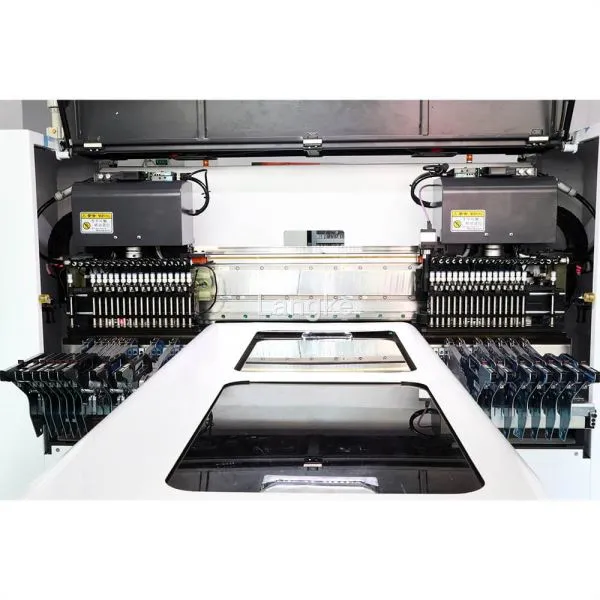

mounting head
Package:
keywords:pick and place machine, chip mounter, high speed pick and place machine, placement machine, pnp machine, chip shooter, smd machines, smt machine, pnp machine, smt machine manufacturer, smt machine factory,pick and place machine, led pick and place machine, pnp machine, smt machine, placement machine, pick and place soldering machine, pick and place machine smt, pick and place robot machine, pick and place machine in electrics production machinery, pick and place machine Yamaha, pick and place machine Juki, smt machine pick and place machine, smt machine feeders, smt machine in electrics production, smt machine set, led machine, led machine light, led light making machine, chip mounter, chip shooter, smt chip mounter, smt chip shooter, smd machine, smd placement machine, pick and placer machine,mounter machine, mounter
Welcome to contact for more detailed:
Please scan the following code and save
+86 18898671670
QQ: 2277025763
Contact information:
Elaine
Tel: 86-755-29605790
Fax: 86-755-89473482
Mob: +86 18898671670
+86 15811817234
Skype:elaine19920114
Wechat: czsffy1223
Email: smttechpnp@gmail.com
Description:
1. Our most cost-effective LED mounter,equiped with 2 modules and 36 electric feeders,can mount 2 kinds of component meanwhile,the actual capacity can reach 150K CPH.
2.Adopt imported linear motor and grating ruler to locate the position, make sure the machine mounting with high speed and high accuracy.We promise to provide 2 years guarantee for the linear motor.
3.Integrated machine frame,welded into a whole by industrial class steel tubes and panels,greatly increase the machine's stability.
Specification:
Item |
Parameter |
Mounting head |
2 arms,36 pieces nozzle totally,18 nozzle per arm |
Mounting component range |
0805,1206,2835,3014,3528,5050,5630,5730,RGB and other LED strip material. |
Mounting Pattern |
Group picking and group mounting |
Driver of mounting head(Y Axis) |
Linear motor(magnetic) |
Mounting height |
13mm |
PCB position |
CCD vision and MARK locating |
PCB conveying speed |
320MM/S |
PCB conveying direction |
Front to Back |
Mounting accuracy |
±0.03MM; |
Min mounting distance |
13MM |
Mounting speed |
75000CPH*2=150000CPH(Using 36 pieces nozzle condition) |
Rail size |
13000MM(L)-300mm（W) |
PCB size |
1200MM(L)-300mm（W) |
PCB thickness |
0.5mm-5.0mm |
FEEDER amount |
18（8mm)*2=36 pcs;Electrical FEEDER |
Electric |
220V AC/50Hz/2 Phase |
Max power consumption |
3.0 KW |
Air pressure |
5kg |
Dimension |
(L)：2650mm |
(W)：1850mm | |
(H)：1500mm | |
Weight |
1500kg |
Operator |
1 person(single side operation) |
