Automatic Liquid Juice Filling Machine Price

Automatic Liquid Juice Filling Machine Price photo-1
Automatic Liquid Juice Filling Machine Price photo-2
Automatic Liquid Juice Filling Machine Price photo-3
Automatic Liquid Juice Filling Machine Price photo-4
US$ 20,000 - 30,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Juice Or Tea
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB SHANGHAI FOR liquid juice filling machine
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Other, Beverage, Juice Or Tea
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Pneumatic
Voltage 220V
Power 3KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number RCGF
Dimension(L*W*H) 2500*1800*2550mm
Weight 2T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product descriptionAutomatic liquid juice filling machine price
 Introduction

Hot sale automatic juice packaging and bottling machine is used to fill juice, tea and other non-gas beverage.



All the machine part which contact with liquid is high quality stainless steel 304. The relative fittings are from international famous brand.



The automatic juice packaging and bottling machine was equipped with suspension type air conveyor and frequency control of motor speed.



This machine is comprised of rinsing, filling and capping system. Rinsing: grip the bottle neck, rotate filling plate, inverse bottle; internal rinsing and external spraying make bottles be cleaned completely. Filling: hot filling with holding bottle neck; the special backflow type of the filling valve can avoid leakage after filling and also control liquid level accurately. Capping: magnetic torque bottle holding type can minimize the cap damage rate and make the capping performance the best.



This machine owns the reasonable, stable and safe design. Under the condition that the bottle neck size is the same, only the output star wheel needs to be changed if bottles are different. It improves the efficiency a lot.



We are the automatic juice packaging and bottling machine manufacturer from China.

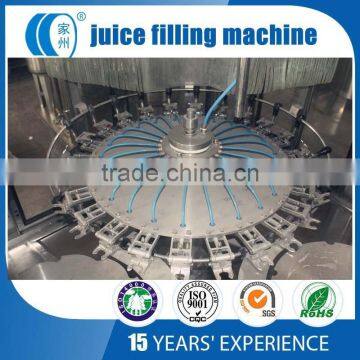

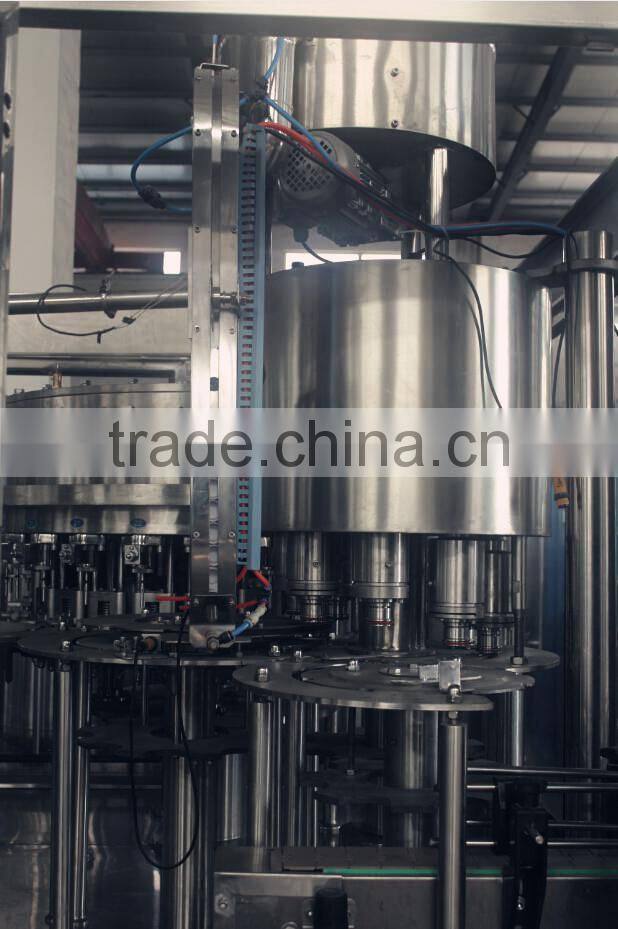

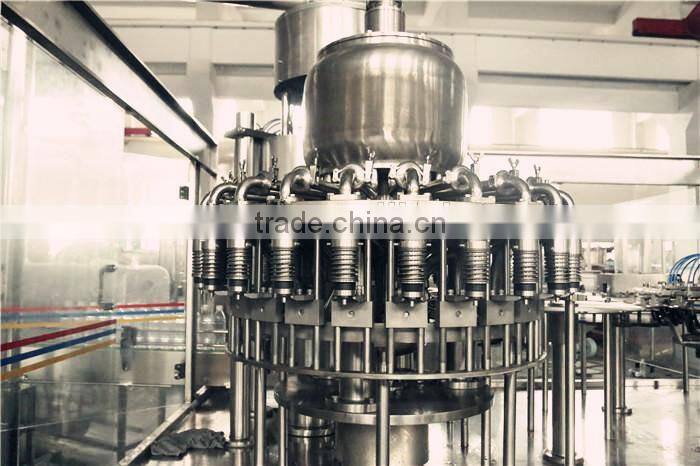

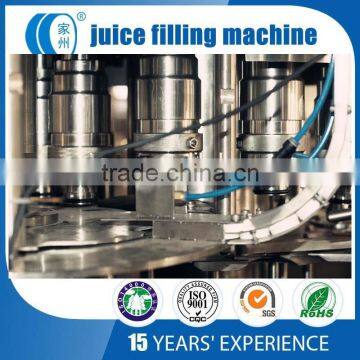

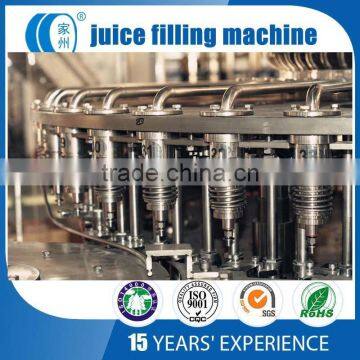

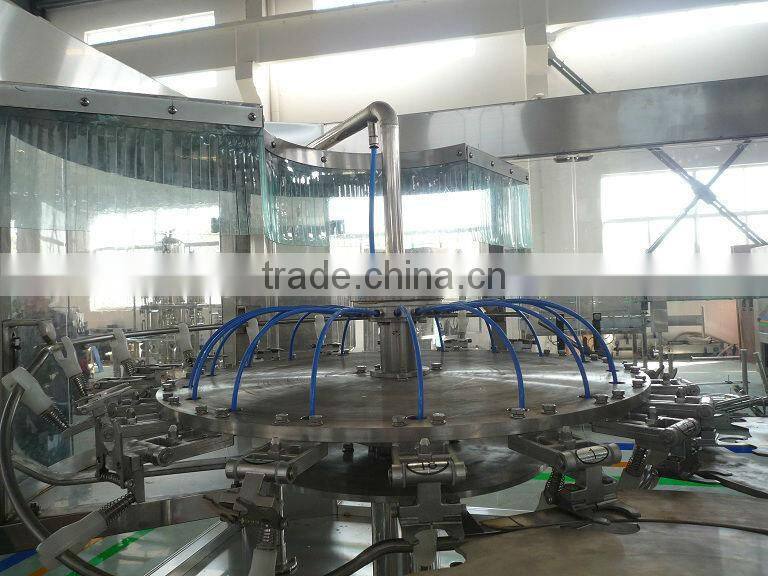

Product displayAutomatic liquid juice filling machine price

Automatic liquid juice filling machine price



Automatic liquid juice filling machine price



Automatic liquid juice filling machine price

Product ParametersAutomatic liquid juice filling machine price

Model

Washing

heads

Filling

heads

Capping

heads

Capacity(b/h)

500ml

Motor power

(KW)

Overall dimension

(mm)

CFG14-12-5

14

12

5

2000-4000

1.5KW

2100x1400x2500

CFG18-18-6

18

18

6

5000-7000

2.2KW

2460x1720x2650

CFG24-24-8

24

24

8

8000-12000

3KW

3100x2100x2650

CFG32-32-10

32

32

10

12000-15000

4KW

3500x2500x2650

CFG40-40-10

40

40

10

16000-20000

7.5KW

4600x1800x2650

CFG48-48-12

48

48

12

20000-24000

9.5KW

5200x4500x3400

CFG60-60-15

60

60

15

25000-30000

12KW

6500x4500x3400
