Plastic Bottle Juice Hot Filling Equipment Price

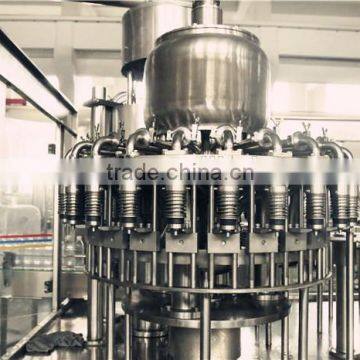

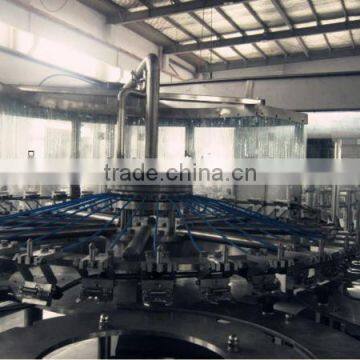

Plastic Bottle Juice Hot Filling Equipment Price photo-1
Plastic Bottle Juice Hot Filling Equipment Price photo-2
Plastic Bottle Juice Hot Filling Equipment Price photo-3
Plastic Bottle Juice Hot Filling Equipment Price photo-4
US$ 1,000 - 12,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Beverage, Drinking Water
Packaging Type:
Bottles
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shanghai for juice hot filling equipment
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Beverage, Other, Beverage, Drinking Water
Packaging Type Bottles
Packaging Material Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V
Power 2.2KW
Place of Origin Jiangsu, China
Brand Name JZ
Model Number RCGF
Dimension(L*W*H) 2900*2700*2950mm
Weight 3T
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas

P/roduct informationZhangjiagang Jiazhou Machinery Co., Ltd.

Product descriptionPlastic bottle juice hot filling equipment price

1)The machine is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic. The machine is used in filling juices, mineral water and purified water in bottles made of polyester and plastics.



2)The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.



3) The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machines of the same specifications. The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.



4) It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.



5)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage makers.

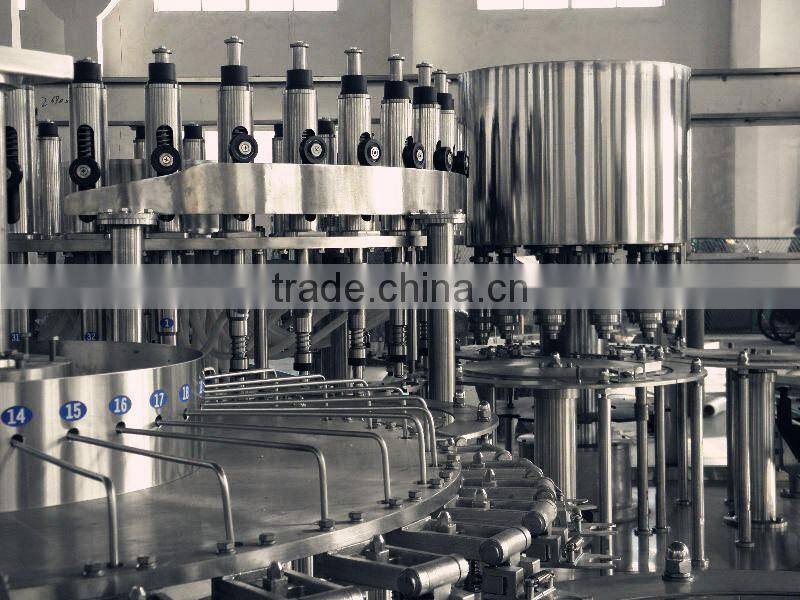

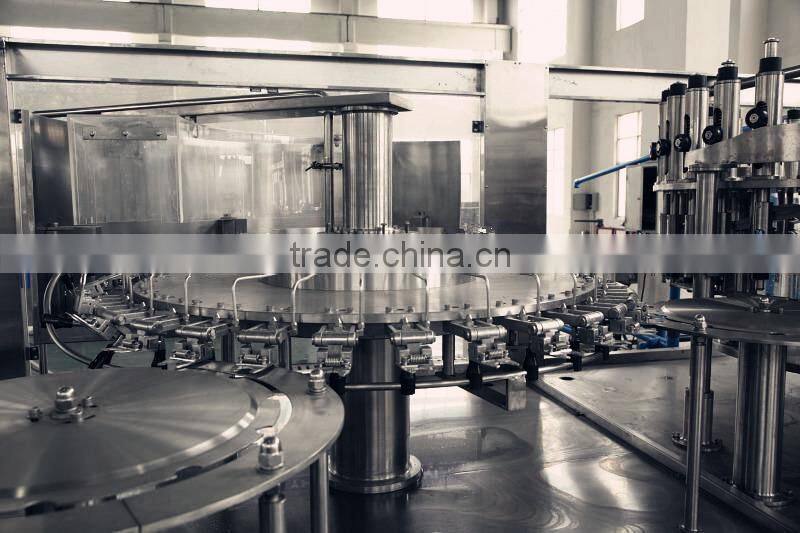

Product displayPlastic bottle juice hot filling equipment price

Plastic bottle juice hot filling equipment price



Plastic bottle juice hot filling equipment price



Plastic bottle juice hot filling equipment price

Product ParametersPlastic bottle juice hot filling equipment price
ModelRCGF
18186
RCGF
24248
RCGF
323212
RCGF
404015
RCGF
505018
RCGF
606020
Head of washing, filling, sealing18-18-624-24-832-32-840-40-1050-50-1860-60-20
Production capacity (bottle/hour)  3000-40005000-60007000-80009000-1000011000-1200015000
Suitable bottle diameter(mm)φ=50-100 H=150-310 330-1500mlφ=50-100 H=150-310 330-1500mlφ=50-100 H=150-310  330-1500mlφ=50-100 H=150-310  330-1500mlφ=50-100 H=150-310  330-1500mlφ=50-100  H=150-310  330-1500ml
Filling precision≤±5mm≤±5mm≤±5mm≤±5mm≤±5mm≤±5mm
Motor power3.84kw4.1kw5.6kw7.5kw9kw11kw
Filling pressure≤0.4≤0.4≤0.4≤0.4≤0.4≤0.4
Overall dimension     (mm)2400×1900
×2300
2800×2100
×2300
4200×2300
×2300
5000×2800
×2400
5900×3100
×2400
6500×3500
×2400
Weight(Kg)3000400050007500900011000
