Home > Products > Filling Machine-Fruit juice/Tea > pipe type sterilizer
pipe type sterilizer
- 100 Unit / Units per Month
- Shanghai
- T/T
- High Quality Hot Milk Juice Tubular Type Uht Sterilizer Pasteurization Equipment Machine
- Factory Dairy making machine/mini pasteurized milk & yogurt processing plant/long life UHT milk production line machinery
- 500l-1000 L/H Multi Tube Uht Sterilizer Tubular Type Pasteurizer Juice Sterilizer Machine
- Water Bath Vacuum Packaged Food Pasteurizer Machine/Tunnel Tomato Paste Pasteurization Machine
- Dairy Greek Yogurt Make Machine 1000L Milk Pasteurizer Pasteurizadora De Leche Milk Sterilizer Machine
- Factory Dairy making machine/mini pasteurized milk & yogurt processing plant/long life UHT milk production line machinery
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | JIAZHOU |
Processing Types: | Juice | Certification: | CE,ISO9001 | Warranty: | One year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

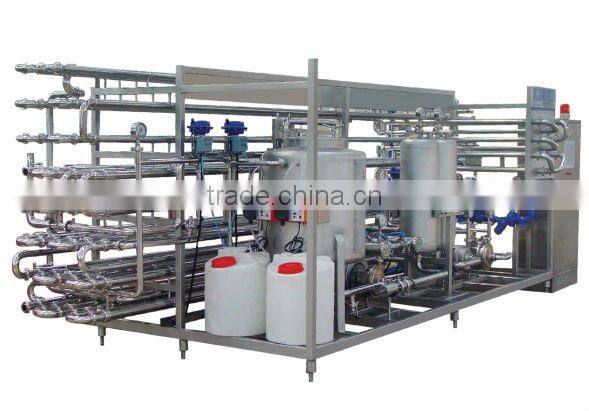

pipe type sterilizer
The whole set of tube-style sterilization machine is especially used for one-off sterilization of liquid substances such as milk ,juice and drinks to make them last for a longer period through sterilization and cooling.
In accordance with different requirement for heating,sterilization, heat preservation and cooling ,the flow can be designed in combination, with various safety measures and high degree of automation for precise and stable control.
GS-UHT-1 | GS-UHT-2 | GS-UHT-3 | GS-UHT-4 | GS-UHT-5 | |
Production Capacity(T/H) | 1 | 2 | 3 | 4 | 5 |
Heat Exchanging Area(m2) | 16 | 26 | 38 | 46 | 56 |
Material Inlet Temperature(°c) | 5 | 5 | 5 | 5 | 5 |
Material Outlet Temperature(°c) | 5 | 5 | 5 | 5 | 5 |
Sterilizing Temperature(°c) | 137 | 137 | 137 | 137 | 137 |
Warm Keeping Time(S) | 4 | 4 | 4 | 4 | 4 |
Ice Water Temperature(°c) | 1 | 1 | 1 | 1 | 1 |
Ice Water Consumption(T/H) | 3 | 4 | 4 | 4 | 4 |
Joint Size(mm) | Φ25 | Φ38 | Φ38 | Φ51 | Φ51 |
Weight(Kg) | 980 | 1080 | 1160 | 1350 | 1680 |
Dimension(L*W*Hmm) | 1500*1500*2000 | 1900*1800*2200 | 2100*2200*2500 | 2300*2200*2500 | 2600*2200*2500 |
Power(kw) | 3 | 4 | 5 | 6 | 7 |
