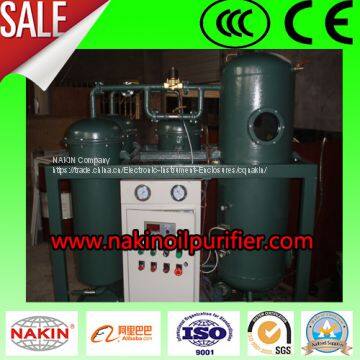

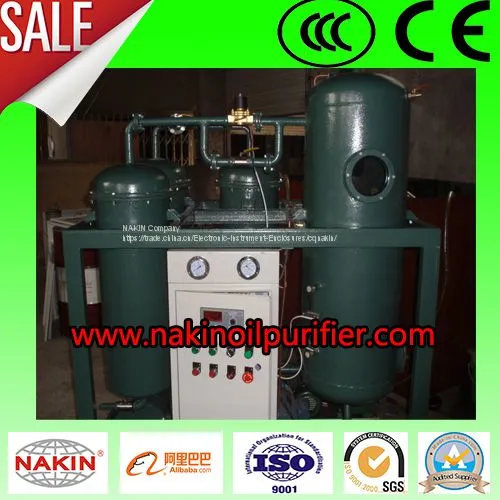

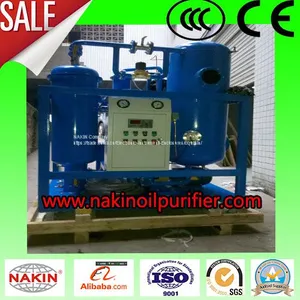

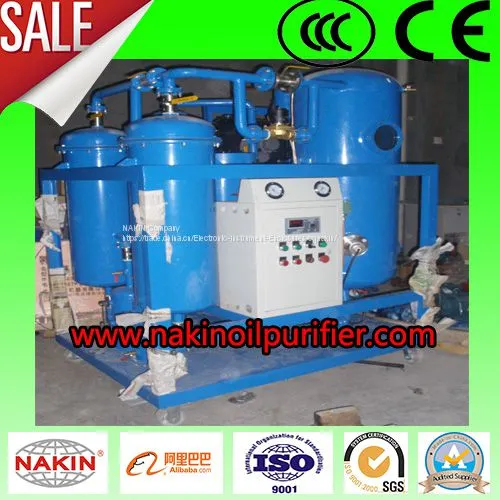

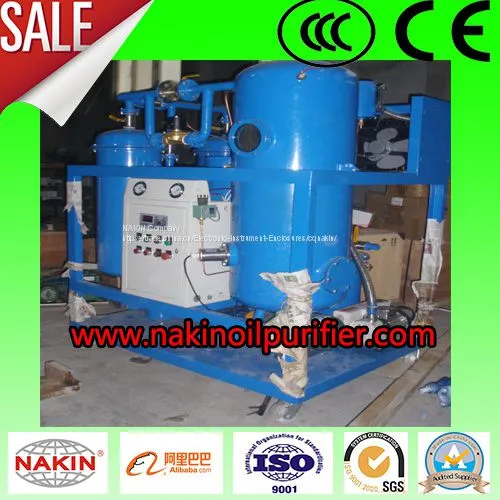

Series TY Turbine oil purifier



Application:

Turbine oil is widely applied in industries, TY vacuum turbine oil purifier is mainly used for purifying unqualified turbine oil, especially for serious emulsion turbine oil, it can quickly and efficiently demulsify, separate water, gas, particles from oil, make sure quality of treated oil to achieve new oil's standard, ensure whole turbine system work safely. This equipment use the special polymer materials as filter medium combined with vacuum separating technology to break emulsification, dewater, degas, remove acid and particles, make the badly turbid turbine oil becomes clear transparent. Series TY is a perfect turbine oil purifier for live line work; also it can purify low viscosity hydraulic oil and lube oil.

Technical Parameters:

Index Name

Unit

TY-10

TY-20

TY-30

TY-50

TY-100

TY-150

TY-200

TY-300

Flow rate

L/H

600

1200

1800

3000

6000

9000

12000

18000

Working vacuum

MPa

-0.06～-0.095

Working pressure

MPa

≤ 0.4

Temperature range

C

20 ～80

Demulsifying value

min

≤ 15/min(GB/F7035)

Water content

ppm

≤ 80

Gas content

%

≤ 0.1

Cleanness

≤ NAS 6 grade

Power supply

380V 50HZ 3Ph (As per user's option)

Working noise

dB(A)

≤65～80

Heating power

Kw

24

24

24

30

45

60

72

84

Total power

Kw

27

27

27

33

48

66

81

97

Inlet(Outlet)

mm

Φ25

Φ25

Φ25

Φ32

Φ42

Φ50

Φ50

Φ60

Weight

kg

400

450

500

600

800

1000

1100

1550


Product Tags: oil purifier , ty
