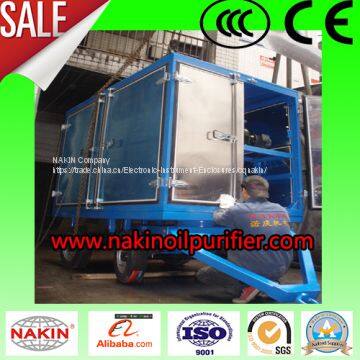

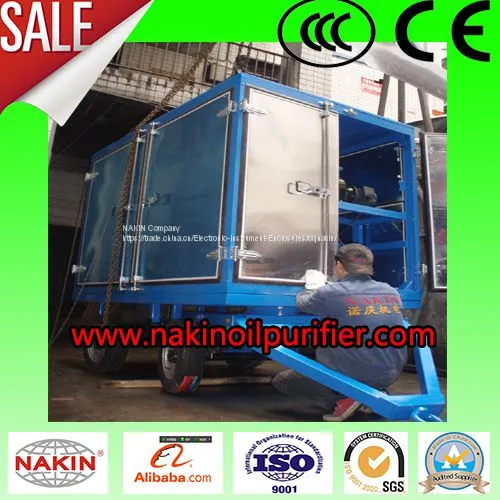

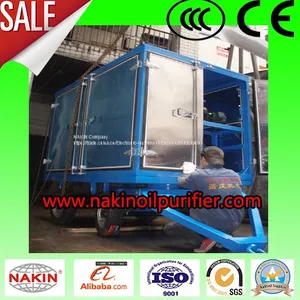

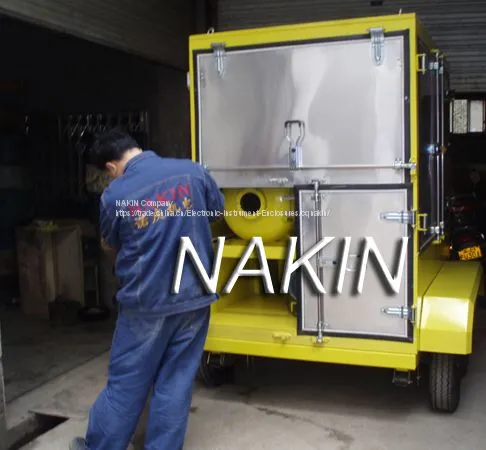

Series ZYM Mobile type vacuum insulating oil purifier
Application:
ZYM is vacuum transformer oil filtration plant, which is special for treating various insulating oil, it can remove water, gas, impurity from insulating oil effectively, Improve oil performance, treated oil will reuse again. ZYM Mobile transformer oil purifier, It is very good for outdoor working, like the outdoor transformer oil treatment, ZYM is easy to move the far-way place, it is waterproof, dustproof.
Features:

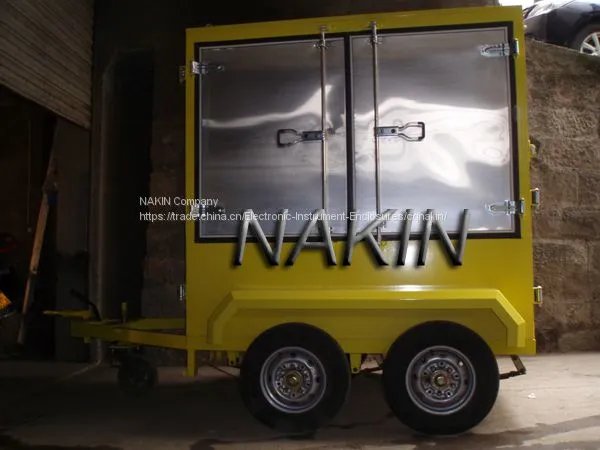

1. Mobile (trailer) type, completely closed structure, waterproof, dustproof, move easy.
2. Installation of car tyres, Bridge shock absorber, braking system and steel welding of entire trailer guarantee 60km/h speed.
3. Dealing with unqualified insulating oils, rapidly remove water, gas, particles from oil
4. Multi-stage precision filtration system, mesh filtration combined with molecular adsorption technologies
5. Efficient electric heating system, heating uniformity, less power consumption, safe, and reliable.
6. Double-infrared liquid level sensor, pressure protective system to ensure machine operation easy and safely.
7. Adopt interlocked protective system, which connect oil pump, heater and liquid level sensor, avoiding blank heating, blank pumping, oil leak and electricity leak. If there is any fault, machine will be power off automatically.
Technical Parameters:
Index name |
Unit |
ZYM-30 |
ZYM-50 |
ZYM-65 |
ZYM-100 |
ZYM-150 |
Flow rate |
L/H |
1800 |
3000 |
4000 |
6000 |
9000 |
Working vacuum |
MPa |
-0.08～-0.099 |
||||
Working pressure |
MPa |
|||||
Temperature range |
C |
20 -80 |
||||
Dielectric strength |
KV |
> 70 |
||||
Water content |
ppm |
|||||
Gas content |
% |
|||||
Particles size |
μ |
|||||
Power supply |
380V 50HZ 3Ph (As per user's option) |
|||||
Working noise |
dB(A) |
≤65～85 |
||||
Heating power |
Kw |
24 |
30 |
40 |
60 |
90 |
Total power |
Kw |
27.5 |
35.5 |
48.5 |
66 |
105 |
