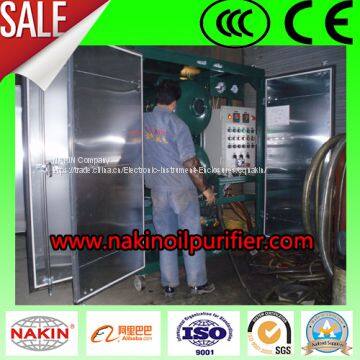

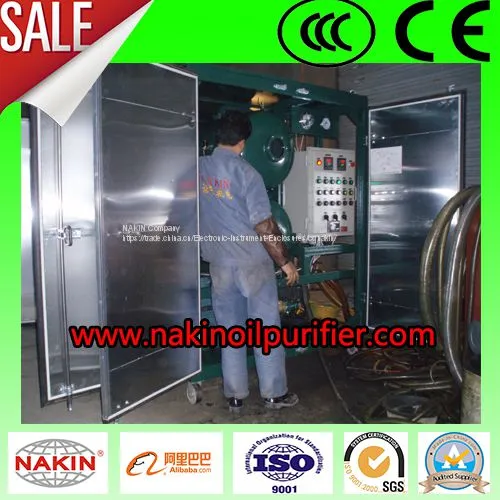

Series ZYD Double-stage Vacuum Transformer Oil Purifier photo-5
US$ 1 - 10000 MOQ: 1 Set
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2007
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
NAKIN Company
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
30 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

Series ZYD Double-stage vacuum transformer oil purifier



Application:

ZYD double stages vacuum transformer oil purifier is mainly used for removing trace water, gas and impurities from insulating oil, improving the insulating oil performance index. It is mainly applied to purification of 110KV, 220KV, 500KV, 750KV, 1000KV power transmission equipment insulating oil, also applied to treat low viscosity oils, like insulating oil, turbine oil, and hydraulic oil in the transmission equipment which is lower than 110KV. Meanwhile, Series ZYD oil purifier can be used as independent vacuum source with functions of vacuum drying and vacuum oiling. Insulating oil performance mainly decided by oil’s water content, If the water is not saturation in the oil, it appears as the molecular states; If water is saturation in the oil, it appears as the liquid states and stay at the bottom of container. Under the vacuum states, because the less gas content, the water and gas in the oil will be escaped from the oil and evacuated by the vacuum pump. The higher vacuum value (Close to 0 Pa), the higher speed of water molecular volatilization (The latest technology, the Vacuum oil purifier can reach to 1Pa Working vacuum value). The gas and water which dissolved in the oil will become gaseity and exhausted by vacuum pump. The oil temperature affect vacuum oil purifier working efficiency, the higher temperature, the water molecular get more kinetic energy, so it is higher diffused speed of water molecular. But, exorbitant temperature will cause fracture of carbon chain for oil molecular, if that will make oil bad. So we don’t suggest the oil temperature excess 80℃. Also the impurity will affect oil dielectric strength, so the vacuum oil purifier requires high filtration precision.



Technical Parameters:

Index name

unit

ZYD-30

ZYD-50

ZYD-100

ZYD-150

ZYD-200

ZYD-250

ZYD-300

Flow rate

L/H

1800

3000

6000

9000

12000

15000

18000

Working vaccum

MPa

-0.08- -0.099

Working pressure

MPa

Temperature range

C

20 - 80

Dielectric strength

KV

>70

Water content

ppm

Gas content

%

Particles size

μ

Power supply

380V 50HZ 3Ph (As per user's option)

Working noise

dB(A)

-85

Heating power

Kw

24

30

60

90

125

136

151

Total power

Kw

27

35.5

68

105

135

148

168
