Multi-langauges Tuning Tool V54 FG Tech Galletto 4 Master
BDM-OBD Function FG Tech ECU Programmer
skype :berylliu3 mail :beryl@autodiagtech.com
Why Buy FG TECH V54 from us?
We are factory for this tool. Price is factory price.
We offer the latest version of software,and free update.
We do best quality control,we use best quality plastic and chips for it.
We test every single pc before we send to clients,almost ZERO bad feedback.
We stock plenty to avoid any shortage,not like trade companies,take money frist and let clients wait.
We can put your logo on it and any other OEM requirments.
A Life-time warranty
Top 6 Reasons To Get FGTech Galletto 4
1. Latest Version: 2014 V54
2. Supported Operating System: windows XP. more friendly than Fgtech v53 , much easier to operate
3. Unlock Version: Can Use Directly. No Need To Activate
4. FGTECH V54 PCB board
5. Supported Language: English, Italian, German, French, Spanish, Portuguese, Czech, Turkish
6. Support Tricore Function
FG Tech Galletto 4 Master V54 BDM-OBD is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode , checksum. This item cannot only work as FGTech Galletto 4 Master, but can also work for BDM-OBD.
Note:The device we update to V54, but it is hardware update, not software.

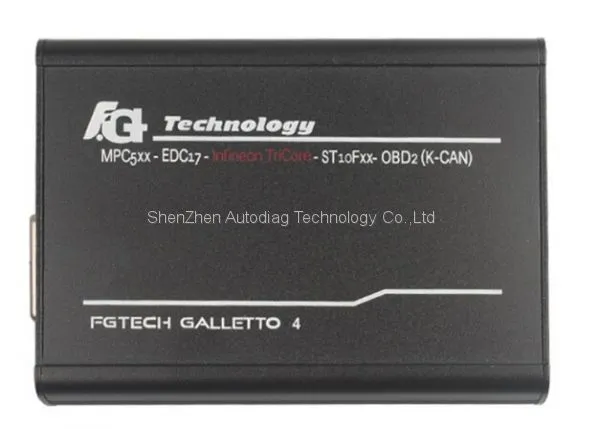

FG Tech Galletto 4 Master v54 Description:
FG Tech Galletto 4 Master this new system developed with high-speed USB2 technology is the fastest and
most secure product on the market, it is easy to install and use by anyone. Our system comes furnished
complete with all Car, Truck, Motorbyke, Marine, BDM MPCxx , BDM Boot Mode , checksum.
Boot Mode System :
NEW JTAG - BDM - for MOTOROLA - FREESCALE - INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 - Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
for Motorola Freescale MPC 555/556/561/562/563/564/565
for Motorola MC 68332 - MC YQQCU - MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
for Motorola MC 68376 Campi 01 Lamborghini - Lotus
for Motorola MC 68336 MEMS D5 ROVER
for Motorola ZC 439615 - ZC 439507 IAW FIAT - VAG
New Line OBD protocols VPM GM - Hummer-Corvette-Munstang-Blazer-Cadilac.
New Line OBD protocols Tx-Rx - Subaru - Mitsubischi - Hitachi - Denso ecu.
Automatic Checksum
All old protocols included for Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password for Bosch , Siemens
for Motorola MC68332 - MCYQQCU - MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
for Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM
5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,
Master Version
Recovery Mode Completa
Funzione scan tool per eliminare i DTC
Function scan tool for erase the DTC
Controllo tensione di batteria auto in tempo reale
Check tension of battery car in real time

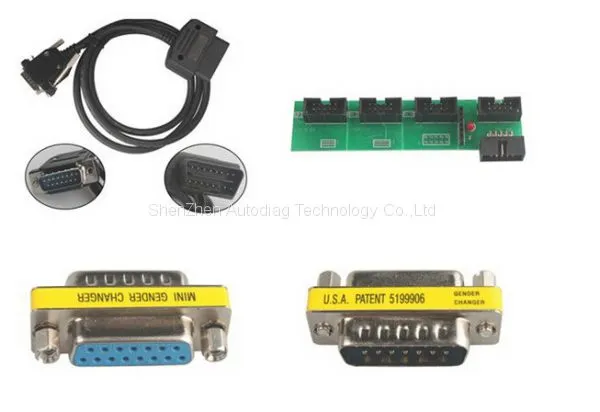

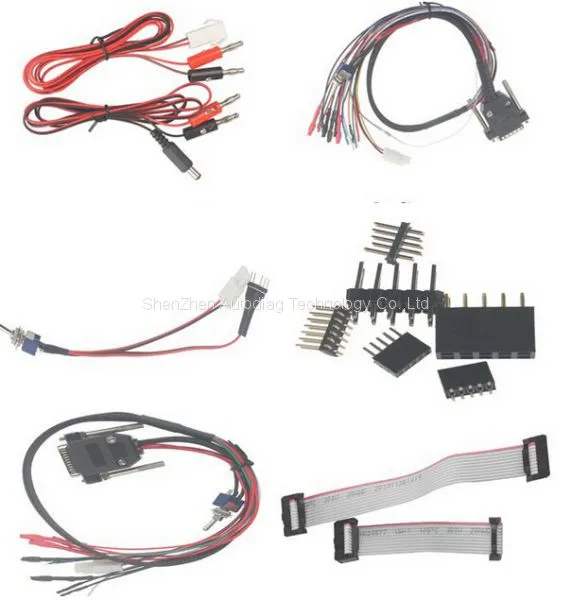

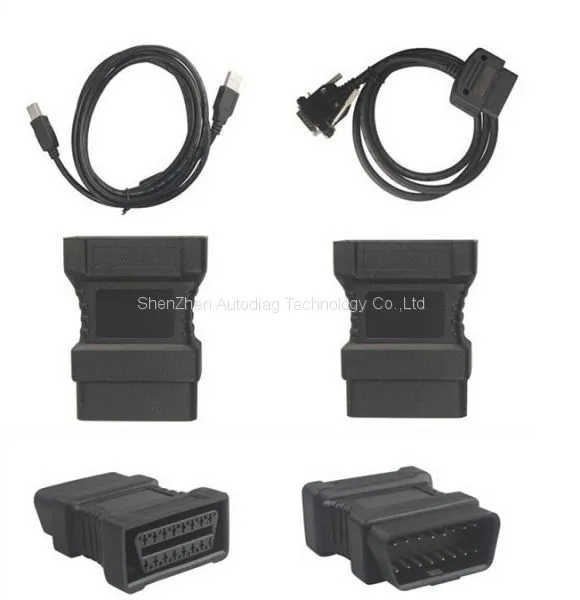

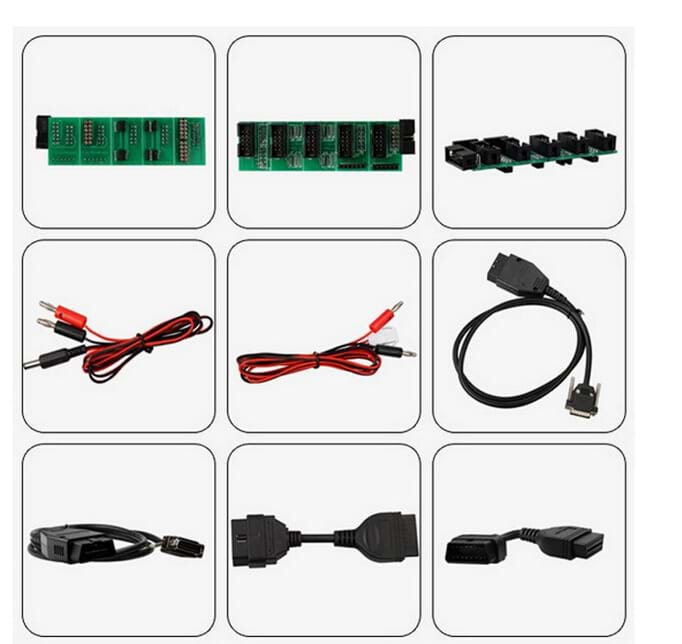

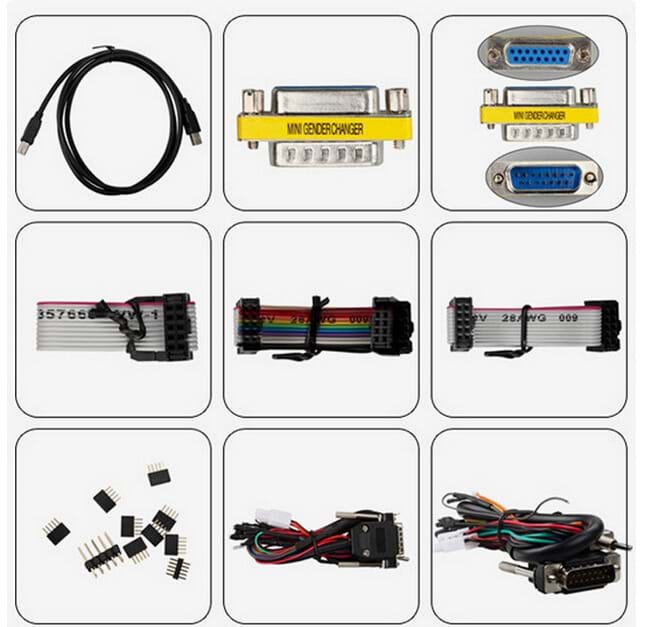

Package including
1pc x New version main interface
1pc x ECU cable for boot
1pc x Adapter for BDM to CMD with bdm cables
3pcs x BDM adapters
6pcs x BDM connectors
2pcs x Power cable
1pc x OBD2 cable
1pc x USB cable (1.5meter)
1pc x CD (2012 version SW -MASTER, documents pdf, pictures, etc.)
FGTech Galletto FAQ
Q1: FGTech Galletto 4 can cancel EGR gestion via OBD?
A1: Sorry, at present it still can not do this function, it just can read and write the Data of Engine ECU
Q2: Can Fgtech V53 update directly to Fgtech Galletto 4? and use Fgtech Galletto 4 software?
A2: Sorry, it can not update directly. If you want fgtech v54, you need to buy new fgtech.
Q3: Can Fgtech V54 do this ecu for Bosch EDC16 for BMW(P3)?
A3: Yes, it can do.
Q4: After i install the software. it ask me to update it. can i ?
A4: Please do not update it. just close that notice.
