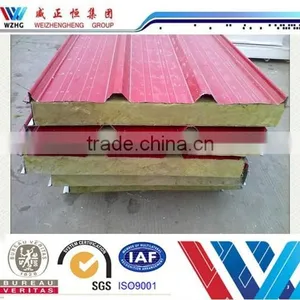

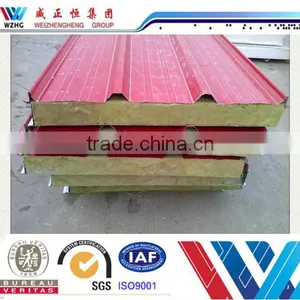

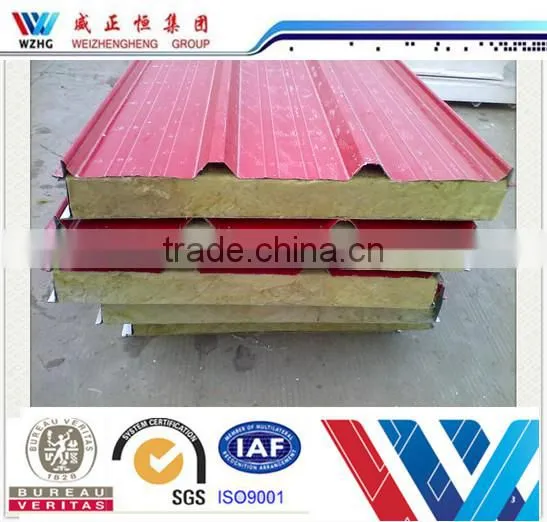

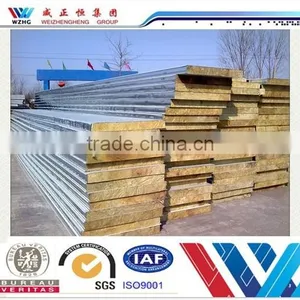

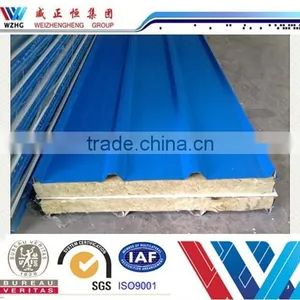

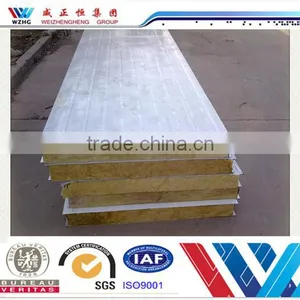

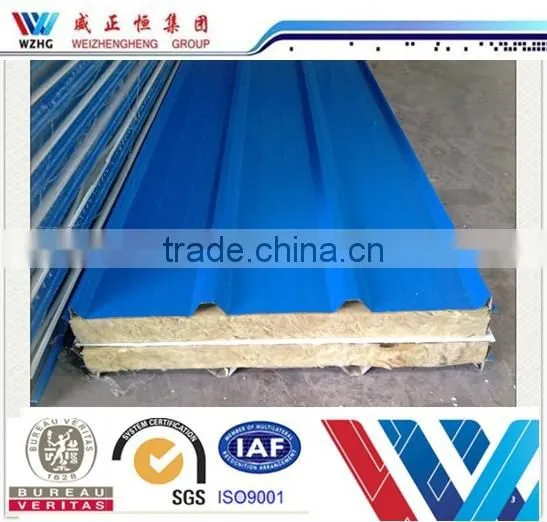

Good quality eps sandwich panel 100mm building material eps sandwich panel,building panel eps in China
- 10000 Piece / Pieces per Month
- TIANJIN XINGANG Port
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Place of Origin: | Hebei, China | Brand Name: | wzh | Model Number: | WZH-SD-2015 |
| Panel Material: | Metal | Type: | EPS Sandwich Panels |
Product Description
Good quality eps sandwich panel 100mm building material eps sandwich panel,building panel eps in China
Specification
1.Name:EPS Sandwich Panel for roof&wall
2.Other Type:Rock wool/PU/Fiberglass
3.Brand:WZH EPS sandwich panel
4.Surface:Color Steel sheet
5.EPS:Light weight,hot&sound insulation,waterproof
Polystyrene sandwich panel (EPS Sandwich Panel) is a new type of construction panel which made of outer layer both sides of preprinted steel coil and inner layer of polystyrene. EPS sandwich panel is composite two layers prepainted steel sheets and (EPS) polystyrene hard foams.It is usually used as roof; wall and cold room materials.
Models of EPS sandwich panel
EPS sandwich Roof panel: WZH-SD-2015-960
EPS sandwich Wall panel: WZH-SD-2015-950 WZH-SD-2015-1000/1150
1.EPS sandwich wall panel
-Wall panels
50mm-200mm EPS sandwich wall panel
Effevctive Width-950mm,1000mm for wall
Length-Max 11800mm

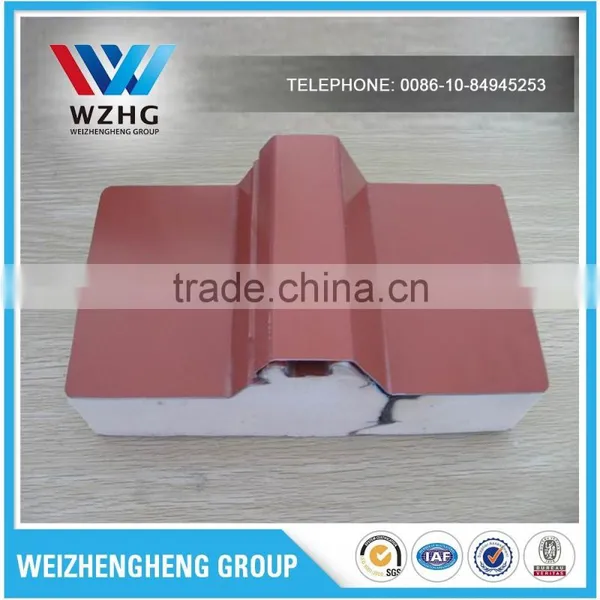

2.EPS sandwich roof panel
-Roof panel
-960mm for roof
75mm-200mm EPS sandwich roof panel
Rib height-8mm for wall-40mm for roof
Wave span-30mm for wall-320mm for roof
Wave no.-20 for wall-3 for roof
Connection ways:
1.Joint hidden roof panel;
2.Z clock;over lap roof panel;
3.tongue and groove wall panel
The machine of producing EPS sandwich panel
Technical Parameters
Steel Thickness | 0.2~1.2 mm |
Panel thickness | 50/75/100/125/150 mm |
Effective width | (1) 960mm---for roof (2) 950/1150mm---for wall |
Length | 1200mm(5.8 m. MAX. for 20'GP and 11.8m.MAX.for 40'HQ or according to the buys’ request) |
Materials | Inner is Polystyrene foam,two sides are Color steel sheets |
Structure | three layers: (1)upper layer is steel sheet, (2)the inner layer is Polystyrene foam, (3)the bottom layer is also steel sheet. |
EPS density | 12kg/m³,etc |
color | red,tephrosious,blue,white. or according to RAL color |
parts | Steel line for easy connect one by one Film covering in order to protect the steel of panels |
lifetime | 15~20 years |
Character | Light in weight,heat insulation,waterproof,saving energy |
Application | various roofs and walls referring to the large size factory building,storages, exhibition halls,gymnasiums,etc |
Packing | EPS Sandwich panels Packed by shipping Container or according to your demands |
1.Light in weight: 8-20kg/m3, easy to install(donnot need crane),save more construction period and low the cost.
2.Excellent Sound Insulation,heat insulation,waterproof and damp resistant with it's good appearance.
3.Large load: Used as supporting structure and defense device for it's characteristic of high intension rigidity.
4.Panel length is according to the buyer's request,and the steel color is flexible based on the RAL standard, that makes your building more beautiful.
5. Eco-friendly
The surface of steel sheet on our EPS sandwich panel
Color steel foam sandwich panel / EPS sandwich panel | ||
Type | color steel foam sandwich panel (overlap joint) | |
Dimensions | Total thickness | 50-200mm |
Width | 950/960mm (effective width) | |
Length | Less than 11.8m | |
External face | Material | PPGI |
Thickness | 0.4-1.2mm | |
Thickness of the zinc | 80g/m2 | |
Corrosion protection | Galvanized/coated | |
Coating | Polyester | |
Thickness of coating | 20 micron | |
Color | According to the RAL | |
Pattern | Nearly plain | |
Insulation | Optional foam Material | Rock wool/PU/Glassfiber |
Thickness | 50-200mm | |
Density | 8-20kg/m3 | |
Thermal conductivity | 0.02~0.03w/mk | |
Internal face | Material | PPGI |
Steel thickness | 0.1-0.8mm | |
Color | As your request | |
Corrosion protection | Galvanized | |
Coating | Polyester | |
Thickness of coating | 7micron | |
Pattern | Plain | |
Features of eps sandwich panel
1) Light Self-weight-Installation is convenient and flexible without the large-size lifting devices so that the construction period is limited with the lower comprehensive costs.
2) Heavy Load-bearing Capacity:It features high strength and high rigidness and is suitable either for the weight-bearing structure or for the protective structure.
3) Good Temp-keeping&Heat Insulation:With hard polystyrene foams, average thermal conductivity 0.021w/m.k.
4) Fine fireproof-Test by national quality inspection center for fireproof building material,polystyrene sandwich panel index reach grade B2 and grade A of GB8624 respectively.
5) Flexible Application-As the continuous production line is controlled by the computer system, the length of the compound sheets will be decided and selected according to the designing requirement,transportation and installation conditions. It is possible to select the different thickness of the composite panels in accordance with the roof load-bearing and purline distance.
Shipping and packing
Application of eps sandwich panel
gymnasium, warehouse, hospital, supermarket, shelter, commercial and industrial facilities, Worshop, temporary office/buiding, gymansia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.
Other sandwich panels in our factory
Our service:We can supplier a service for the follow products Steel Structure,Prefabricated House,Galvanized Steel Coil,Galvalume Steel Coil,PPGI/PPGL,Galvanized Steel Sheet , Galvalume Steel Sheet,Cold Storage Panel,Prepainted Corrugated Steel Sheet | Floor Decking | EPS Sandwich Panel,Rock Wool Sandwich Panel | PU Sandwich Panel | Cleanroom Panel | FPR Panel the best service :
1.Sample free.the freight cost will be paid by customers.
2.You are very welcome to visit our factory before the order,or during the prodction or after the production before loading.
3.We are very professional in all kinds of different payment terms,FOB,CIF,CFR,CIP by sea container or by train.
4.For the steel frame you are very welcome to offer your own design,or you give us your ideas,we can supplies our design,the production,the loading all for you.
