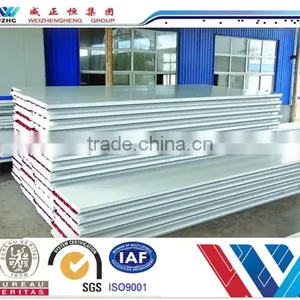

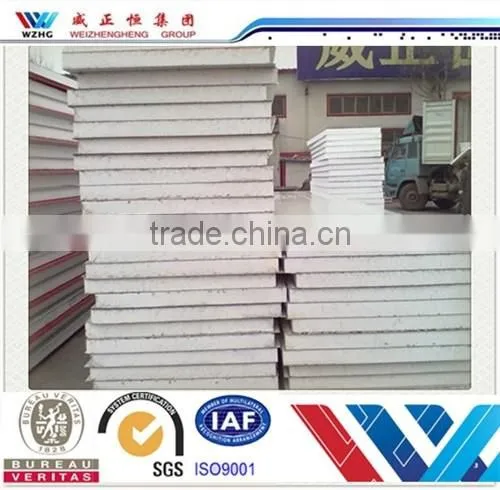

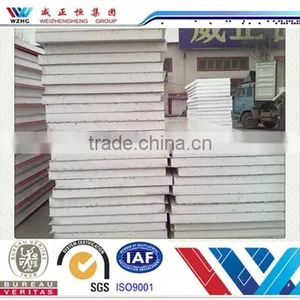

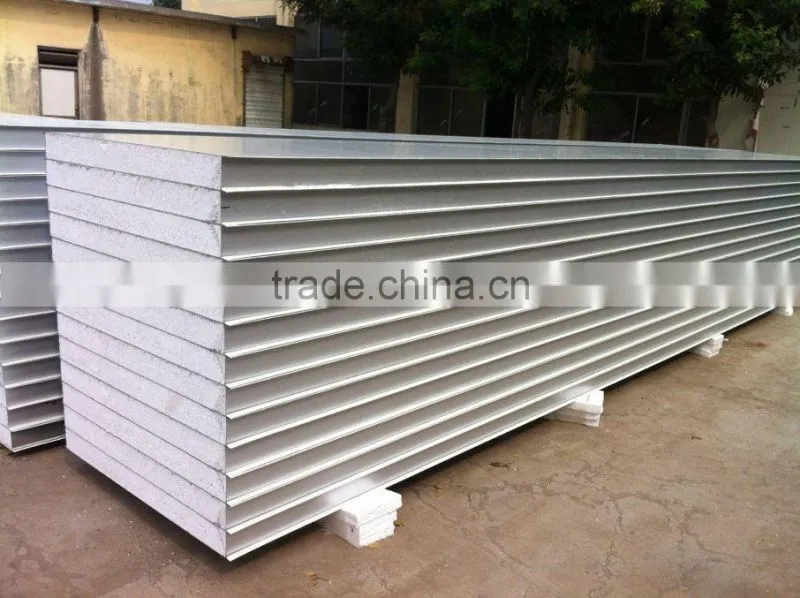

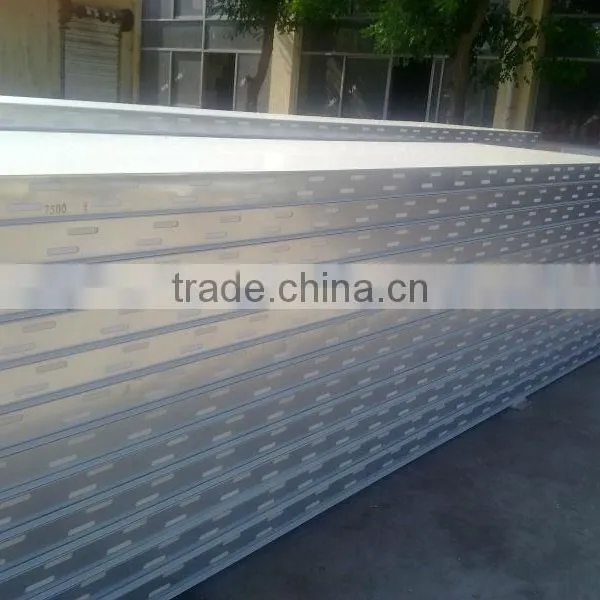

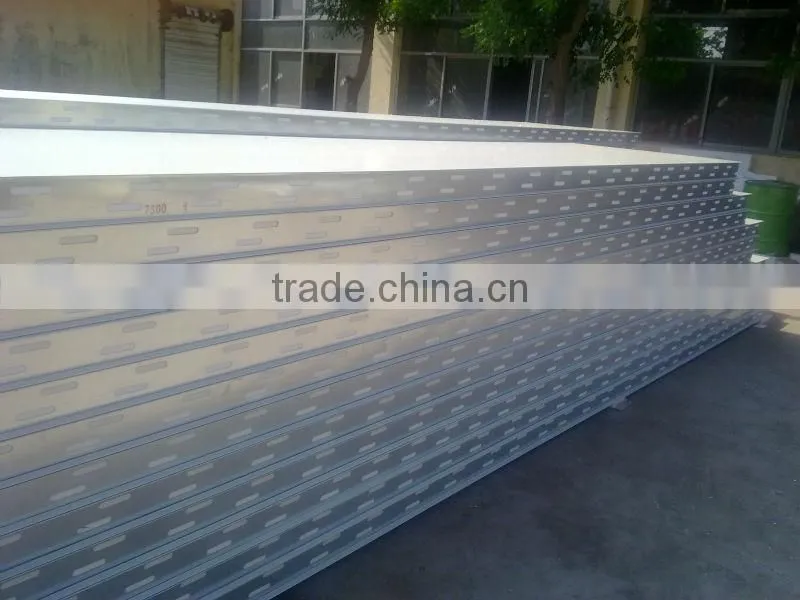

Clean Room Sandwich Panel/Cold Room Panels/ wall sandwich panel
Introduction:

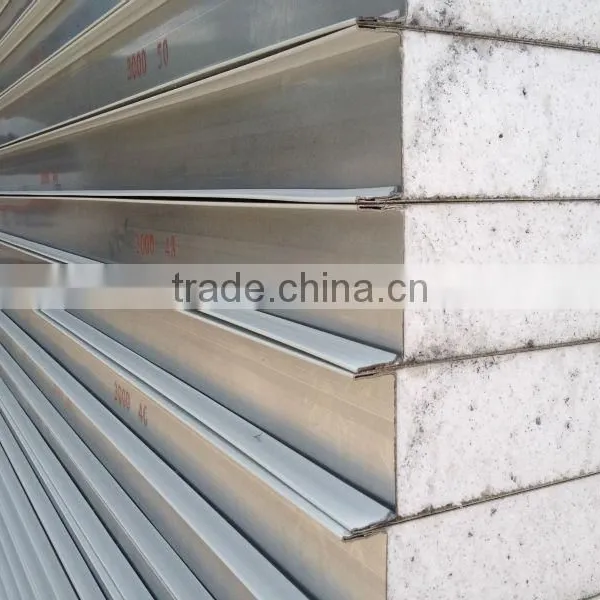

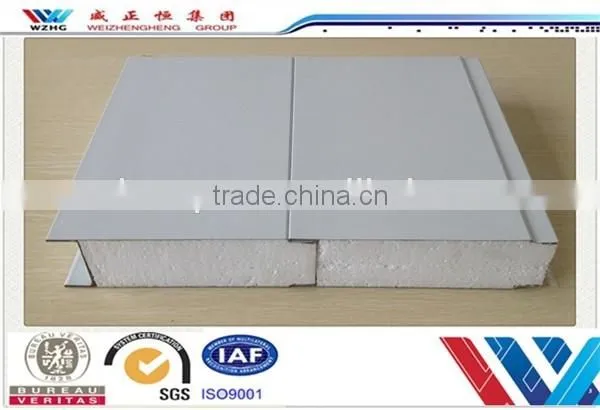

EPS Sandwich Panel production process adopts the colored steel plate as surface board , and the core material is the self-extinguishing closed cell polystyrene foam, it is kind of high-strength composited building materials , and it was formed in the automated continuous molding machine, by combining the pressed colored steel with the high strength adhesives.
Heat Insulate Panel/EPS Sandwich Panel/EPS Composite Sandwich Panel
- Name: EPS Sandwich Panel
- Other Type: ROCK WOOL/GLASS WOOL
- Brand: Weizhengheng.
- Materials: Hot Galvanised Steel
- EPS: Fireproof, hot & sound insulation, waterproof
- Working life: More than 20 years...
Specification
Color steel foam sandwich panel / EPS sandwich panel | ||
Type |
color steel foam sandwich panel (overlap joint) |
|
Dimensions |
Total thickness |
50-200mm |
Width |
950/1150mm (effective width) |
|
Length |
Less than 11.8m |
|
External face |
Material |
PPGI |
Thickness |
0.2-0.6mm |
|
Thickness of the zinc |
80g/m2 |
|
Corrosion protection |
Galvanized |
|
Coating |
Polyester |
|
Thickness of coating |
20 micron |
|
Color |
According to the RAL |
|
Pattern |
Nearly plain |
|
Insulation |
Optional foam Material |
EPS |
Thickness |
50-200mm |
|
Density |
8-20kg/m3 |
|
Thermal conductivity |
0.02~0.03w/mk |
|
Internal face |
Material |
PPGI |
thickness |
0.2-0.6mm |
|
Thickness of zinc |
80g/m2 |
|
Corrosion protection |
Galvanized |
|
Coating |
Polyester |
|
Thickness of coating |
7micron |
|
Pattern |
Plain |
|
Advantage:
1.Light in weight: 8-20kg/m3, easy to install(donnot need crane), save more construction period and low the cost.
2. Excelent Sound Insulation, heat insulation, waterproof and damp resistant with it's good appearance.
3. Large load: Used as supporting structure and defense device for it's characteristic of high intension rigidity.
4. Panel length is according to the buyer's request, and the steel color is flexible based on the RAL standard, that makes your building more beautiful.
5. Eco-friendly
Features
1. Light weight: Save cost
2. Easy installation
3. Safety: Fire-proof materials
4. Good sound insulation
5. Meet specials designs due to it is easy to form and cut
Application
Worshop, temporary office/buiding, gymansia, villa, mobile building, guard booth, wall & roof materials for steel building or structure.
