Minor error 1mm automatic edm wire cutting machine
Model |
GT4-12 |
Dia. mm |
5-12 |
Cut length |
500-12000mm |
Cut error |
±10mm |
Speed |
45m/min |
Straight motor |
11kw |
Cutting motor |
4kw |
Overall size |
2.3*0.8*1.1M |
Weight |
1200KG |

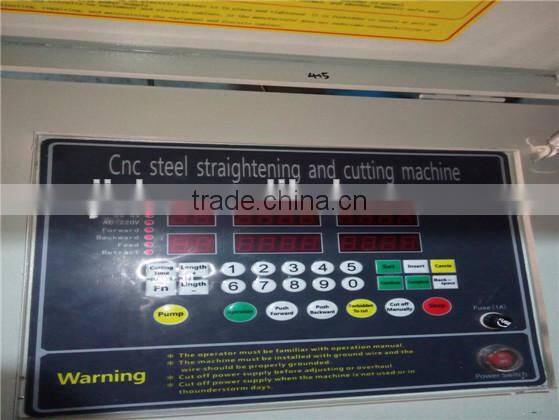

1.This machine mainly consists of tray bar rack,straightening rack,tractor cutting device,base support, motor rotation facility and control box of electric appliances.
2.This machine is applicable to straighten and to cut all types of metal wire.
Minor error 1mm automatic edm wire cutting machine
Model |
SC1.5-3.5 |
SC2-5 |
SC4-8 |
GT4-12 |
GT6-14 |
Dia.mm |
1.5-3.5 |
2-5 |
4-8 |
4-12 |
6-14 |
Cut Length mm |
30-2000 |
30-6000 |
200-6000 |
500-12000 |
800-12000 |
Cut Error mm |
±1 |
±1 |
±1 |
±5 |
±5 |
Speed m/min |
25 |
30 |
35 |
45 |
55 |
Straight Motor kw |
1.5 |
1.5 |
4 |
11 |
11 |
Cutting Motor kw |
0.75 |
0.75 |
3 |
4 |
4 |
Overall Size M |
1.7*0.4*0.8 |
1.2*0.4*0.9 |
7.3*0.6*1.2 |
2.3*0.8*1.1 |
2.7*0.8*1.2 |
Weight KG |
130 |
150 |
650 |
1000 |
1200 |
1.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2.Within guarantee time, if any components are broken under normal condition, we can change for free.
3.We can send our best technician to buyer’s factory for installation, debugging and training.
4.Complete installation instructions, circuit diagram, manual operations and machine layout.
5.24 hours technical support by e-mail.
Welcome to our factory!!!
