Help CenterContinuous Wire Drawing Machine
Related Products
Specifications
continuous wire drawing machineMax. Dia. Of Inlet Wire:6.5mm
Min. Dia. Of Outlet Wire:2.0

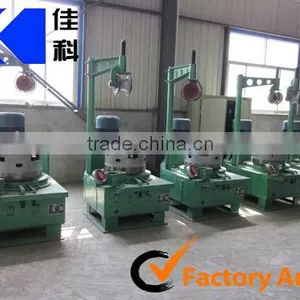

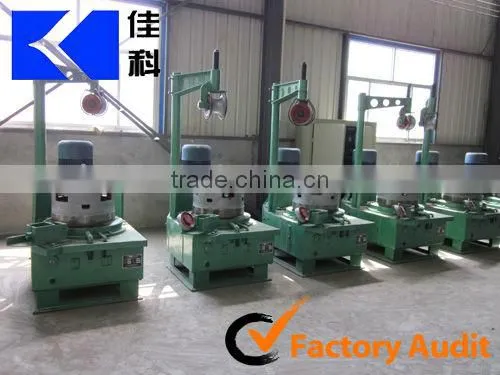

continuous wire drawing machine
Our Wire Drawing Machine is used to draw wire of low, medium and high steel, copper and aluminum,etc.
Wire Drawing Machine
Type |
560 |
550 |
450 |
350 |
Material Intensity |
δb≥110kg/mm2 |
120kg/mm2 |
128kg/mm2 |
δb≤140kg/mm2 |
Max. Dia. Of Inlet Wire |
6.5mm-4.4mm |
6.5mm |
4mm |
2.6-1.5mm |
Min. Dia. Of Outlet Wire |
2.6mm-1.8mm |
2.2mm |
1.6mm |
1.2-0.8mm |
Block |
1 |
1 |
1 |
1 |
Max. average condensation |
0.3 |
20% |
20% |
21% |
Total Condensation |
78-88.5% |
78% |
77.90% |
78% |
Max. Speed of Block |
245m/min |
260m/min |
280m/min |
200m/min |
Total Power |
22/30kw |
18.5/22kw |
11/15kw |
5.5/7.5kw |
Accessory Equipment
Name |
Model |
Range of Dia. |
Discharging Machine |
|
|
Pointing Machine |
F-96 |
6.5-1.5mm |
Pointing Machine |
F-80 |
3.5-1.0mm |
Butt-Welding Machine |
UN-10 |
8--2mm |
Butt-Welding Machine |
UN-3 |
6.5-1.5mm |
Butt-Welding Machine |
UN-1 |
3.5-1.0mm |
Automatic Discharging Machine |
XB-600 |
capacity 800kg |
Automatic Discharging Machine |
XB-360 |
capacity 400kg |
Removable Spool Reeling Mahine |
SG-800 |
capacity 800kg |
Removable Spool Reeling Mahine |
SG-630 |
capacity 500kg |
Descaling Machine |
SW650 |
|
Descaling Machine |
with steel brush |
|
Well Type Furnace |
RJ-90-9 |
|
