Specifications
Automatic Steel wire Straightening and Cutting machinemulti models
certain length
easy to operate
long service life

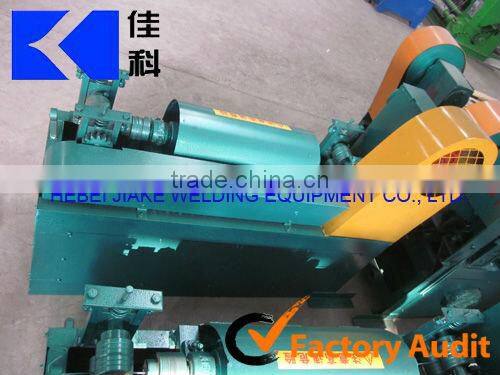

2014 Direct Factory !!! Automatic Steel Wire Straightening and Cutting Machine
1.This kind of machine has four specifications, and the diameter is from 1.5 to 12mm
2.The length could adjust according to customers demand. It used in straightening-cutting stainless steel wire, aluminum wire, cold-drawing wire, and steel wire with plastics.
3.This machine has many advantages, such as neat cutting mouth, less error and good functions.
2014 Direct Factory !!! Automatic Steel Wire Straightening and Cutting Machine
Wire Diameter: 4-8mm
Cut Length: 200-6000mm
Cut Error: ±1mm
Speed: 35 m/min
Straight Motor: 4Kw
Cutting Motor: 3Kw
Overall Size: 7.3m*0.6m*1.2m
Weight: 650Kg
Other models:
Model |
SC1.5-3.5 |
SC2-5 |
SC3-6 |
SC4-12 |
SCHB5-12 |
Dia.mm |
1.5-3.5 |
2-5 |
3-6 |
4-12 |
5-12 |
Cut Length mm |
30-2000 |
30-6000 |
30-6000 |
200-6000 |
700-9000 |
Cut Error mm |
±1 |
±1 |
±1 |
±1 |
±10 |
Speed m/min |
25 |
30 |
35 |
30 |
45 |
Straight Motor kw |
1.5 |
1.5 |
2.2 |
7.5 |
11 |
Cutting Motor kw |
0.75 |
0.75 |
0.75 |
4 |
4 |
Overall Size M |
1.7*0.4*0.8 |
1.2*0.4*0.9 |
1.3*0.55*1.1 |
8*0.8*1.3 |
1.9*0.6*1.4 |
Weight KG |
130 |
150 |
200 |
1000 |
900 |
2014 Direct Factory !!! Automatic Steel Wire Straightening and Cutting Machine
2014 Direct Factory !!! Automatic Steel Wire Straightening and Cutting Machine
We have many types of welding machines: Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, electric mesh welding machine, mechanical mesh welding machine, cage making machine, steel grating welding machine, spot grating welding machine, pneumatic mesh welding machine, pneumatic spot welding machine, wedged wire screen welding machine, 3D panel machine.
Is there anyone machine you need, you can contact with me.
