Specifications
2-5mm automatic wire straightening cutting machine1.High speed and high quality
2.Certain length
3.Adjustable length
4.CE

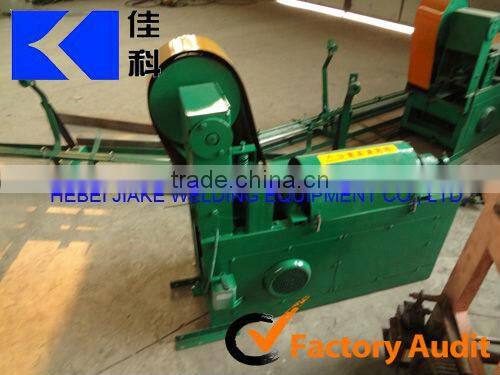

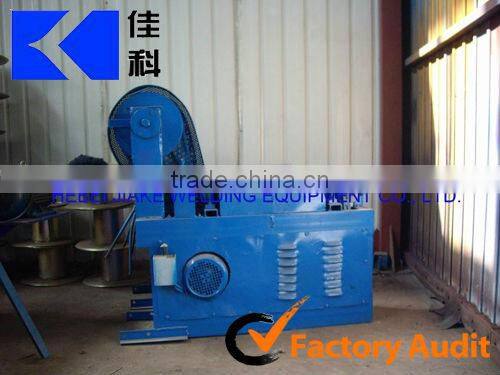

2-5mm automatic wire straightening cutting machine
Hebei Dapu Import & Export Trade Co.,Ltd is engaged in designing, manufacturing and exporting metal & wire mesh processing machinery, different kinds mesh weaving and wire mesh welding machine which located in Shijiazhuang Hebei China.It has own factory-Hebei Jiake Welding Equipment Co.,Ltd located in industrial zone ,Anping, Hebei ,China.It is the leading manufacturer of mesh machine in China and we always offer advanced wire mesh technology.
2-5mm automatic wire straightening cutting machine
Model | SC2-5 |
Dia.mm | 2-5 |
Cut Length mm | 30-6000 |
Cut Error mm | ±5 |
Speed m/min | 30 |
Straight Motor kw | 1.5 |
Cutting Motor kw | 0.75 |
Overall Size M | 1.0*0.45*1.1 |
Weight KG | 170 |
2-5mm automatic wire straightening cutting machine
Other models
Model | SC1.5-3.5 | SC3-6 | SC4-8 | SC4-12 | SCHA5-12 | SCHB5-12 |
Dia.mm | 1.5-3.5 | 3-6 | 4-8 | 4-12 | 5-12 | 5-12 |
Cut Length mm | 30-2000 | 30-6000 | 200-6000 | 200-6000 | 700-12000 | 700-9000 |
Cut Error mm | ±1 | ±5 | ±1 | ±1 | ±10 | ±10 |
Speed m/min | 25 | 35 | 35 | 30 | 45 | 45 |
Straight Motor kw | 1.5 | 2.2 | 4 | 7.5 | 11 | 11 |
Cutting Motor kw | 0.75 | 0.75 | 3 | 4 | 4 | 4 |
Overall Size M | 1.7*0.4*0.8 | 1.3*0.55*1.1 | 7.3*0.6*1.2 | 8*0.8*1.3 | 2.1*0.7*1.3 | 1.9*0.6*1.4 |
Weight KG | 130 | 200 | 650 | 1000 | 1200 | 900 |
2-5mm automatic wire straightening cutting machine
We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, wire mesh welding machine, welded wire mesh machine.
1. Worry-saving: The main components can LAST FOR TEN YEARS which almost cost you nothing for maintenance.
2. Time-saving: TWO TIMES THE CUTTING NUMBER of the normal steel bar cutter.
3. Labor-saving: Cut different sizes of steel bar WITHOUT CHANGING the blade.
4. Easy to operate.
Send Inquiry to This Supplier
