2014 New type wire straightening and cutting machine
Machine

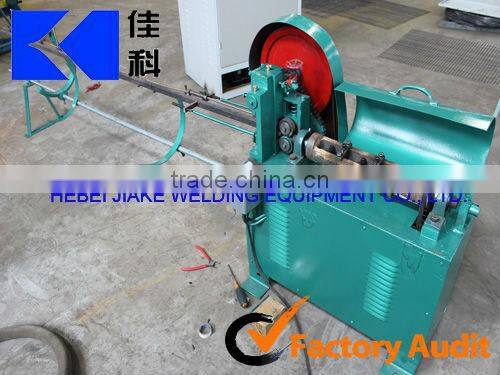

This machine mainly consist of tray bar rack,straightening rack, cutting device,base support and control box of electric appliance,
Usage
the machine is used to straightening and cutting all types of metal wire
we have 6 model:
SC1.5-3.5MM for 1.5-3.5mm wire
SC2-5MM for 2-5mm wire
SC4-8MM for 4-8mm wire
SC5-12MM Mechanical for 5-12mm wire
SC5-12MM Hydraulic for 5-12mm wire
2014 New type wire straightening and cutting machine
Model | JK-SC3-6 |
Dia.mm | 3-6 |
Cut Length mm | 30-6000 |
Cut Error mm | ±1 |
Speed m/min | 35 |
Straight Motor kw | 2.2 |
Cutting Motor kw | 0.75 |
Overall Size M | 1.3*0.55*1.1 |
Weight KG | 200 |
Other Models:
Model | JK-SC1.5-3.5 | JK-SC2-5 | JK-SC4-8 | JK-SC4-12 | JK-SCH5-12 |
Dia.mm | 1.5-3.5 | 2-5 | 4-8 | 4-12 | 5-12 |
Cut Length mm | 30-2000 | 30-6000 | 200-6000 | 200-6000 | 700-9000 |
Cut Error mm | ±1 | ±1 | ±1 | ±1 | ±10 |
Speed m/min | 25 | 30 | 35 | 30 | 45 |
Straight Motor kw | 1.5 | 1.5 | 4 | 7.5 | 11 |
Cutting Motor kw | 0.75 | 0.75 | 3 | 4 | 4 |
Overall Size M | 1.7*0.4*0.8 | 1.2*0.4*0.9 | 7.3*0.6*1.2 | 8*0.8*1.3 | 1.9*0.6*1.4 |
Weight KG | 130 | 150 | 650 | 1000 | 900 |
2014 New type wire straightening and cutting machine
Products:
2014 New type wire straightening and cutting machine
We can offer installation and training the workers for you.Our guarantee time is one year since the machine was installed at the buyer's factory but within 18 months against B/L date.
Hebei Jiake Welding Equipment Co.,Ltd
Address:Wire Mesh Insdustrial Zone, Anping County, Hebei Province, China
Sales: Jenny
QQ:3050875416
Skype: dapu_machine
If you need the machine, Just contact me anytime !
