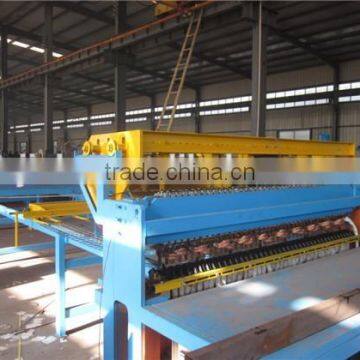

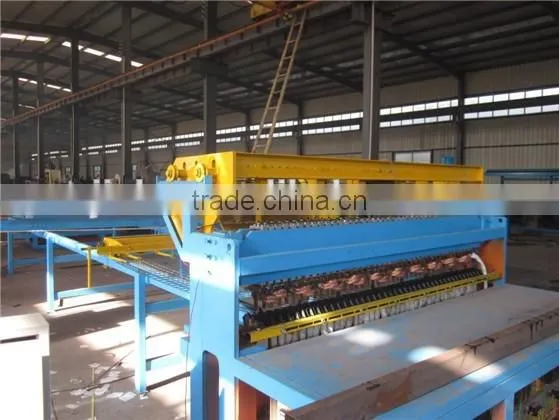

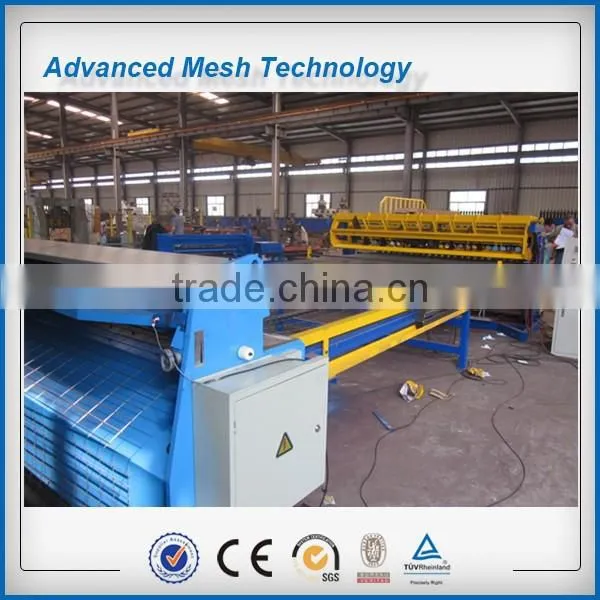

Automatic Reinforcing Building material Wire Mesh Machine/ reinforcing welded mesh machine China factory
full automatic wire mesh welding machines
| Model No. | units |
Main machine | Wire mesh machine | 1set |
Auxiliary machine | Wire straightening and cutting machine | 1 set |
Mesh rolling machine | 1set | |
Optional machine | Mesh shearing machine (optional) | 1set |
1.Main parameter:
Drawn wire rolls, cross wire precut.
3-5mm thick
3m width, 25m length
Square:50-300mm, and when the wire more than 4mm, the square should be more than 100mmX100mm
Input power:380V 50HZ
Rated capacity:85KWX8
Welding spot:61
Welding speed:0-45 times/min
Work area:25MX8M
Loading container:40ft
2.Main features:
1.PLC control, HMI, touch screen input and button input, more intelligent and convenient.
2.Electrical and electronic synchronous control technique, both welding time and separate-control welding is composed of digital and integrated electric circuit.
3.Cross wire is pre-straightened and pre-cut, fed by hopper-feeding system, automatic feed.
4.Line wire is in coil, continuously fed.
5. Mesh drawing system, driven by servo motor, more precision.
6.The line wire spacing and cross wire spacing both be adjustable.
C.Auxiliary machine
1.Wire straightening and cutting machine
Wire diameter: 3-5mm
Motor power: wire straightening motor:1.5KW wire cutting motor0.75kw
Speed:30m/min
2. Mesh Rolling machine
3. Mesh shearing machine (optional)
1.Wire Mesh Welding Machines JK-RM-2500B for reinforcing mesh or steel bar mesh
| |
2. Wire Mesh Welding Machines JK-FM-2500S for fence mesh or construction mesh
| |
3. Full Automatic Wire Mesh Welding Machine JK-AC-1200S for construction mesh or poultry cage mesh
| |
4. electric welded mesh machines for construction mesh
| |
All our machines could be customized, please contact us for much more details
Our company has a sound service system, from customer requirements gathering, pre-sales technical consulting, installation and commissioning in sales, and after sales maintenance of equipment. All of service system only for your satisfaction.
A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
1.Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2.Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer’s requirement.
C: after-sale service; supply spare parts and provide after-sale services
1.supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2.Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange technician to the user factory in the soonest time, solve the trouble and resume production in time.
Tell us your need, we will surprise you with best price, best quality and best service!
We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, wire mesh welding machine, welded wire mesh machine, chain link fence machine, hexagonal wire netting machine, gabion mesh machine, stone mesh machine, expanded metal mesh machine, barbed wire machine, razor barbed wire machine and so on, please do not hesitate to contact us.
