Welded Wire Mesh Fence Making Machine for BRC Fence Mesh
- 10 Set / Sets per Month
- xingang
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Hebei, China | Brand Name: | JIAKE | Model Number: | JK-FM-2500B |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

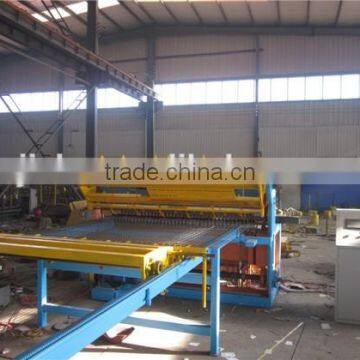

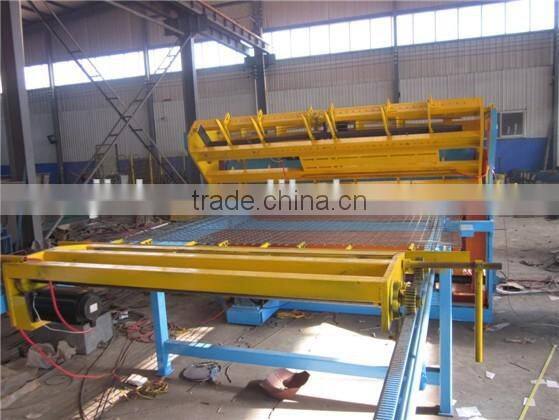

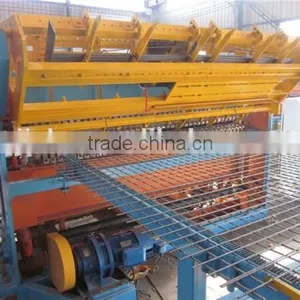

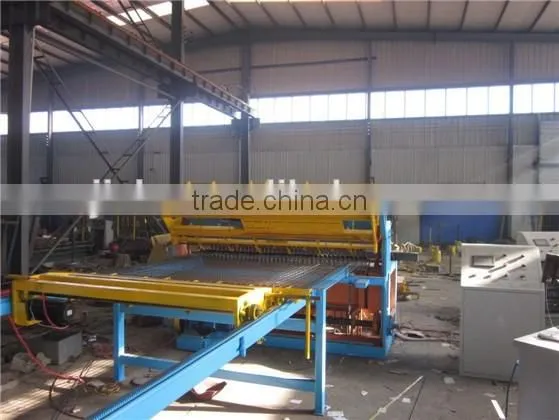

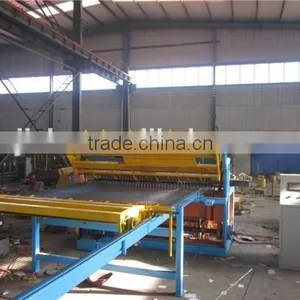

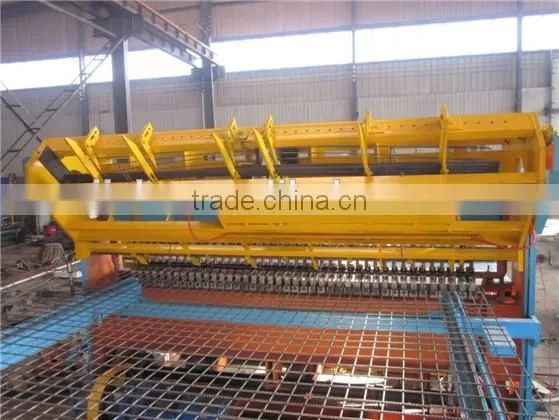

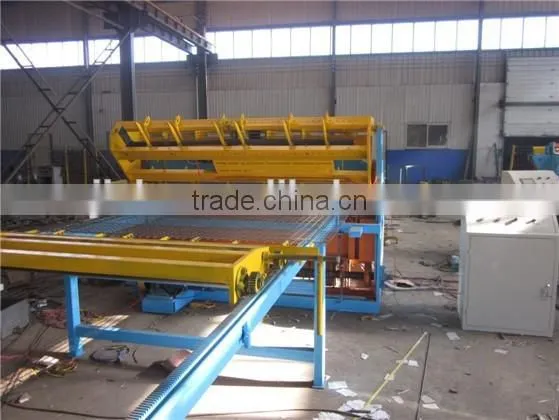

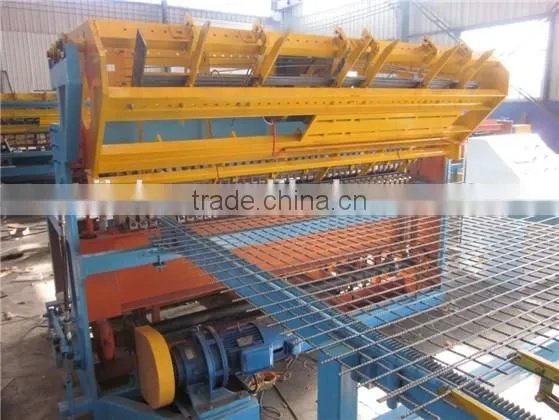

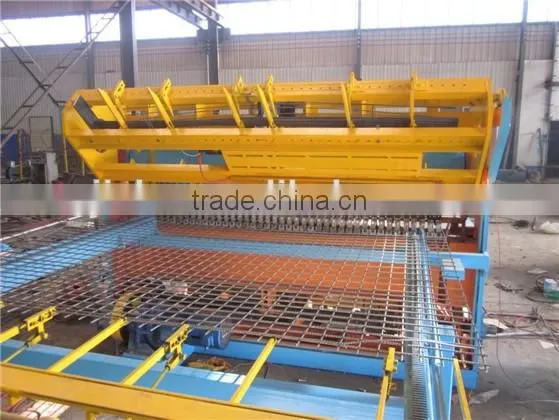

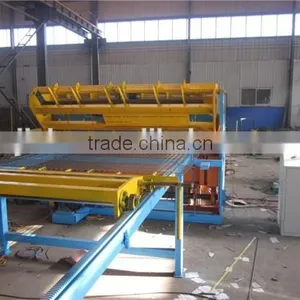

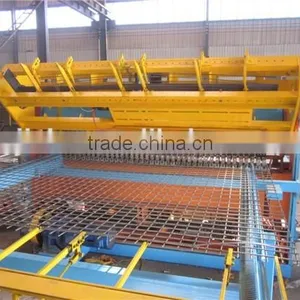

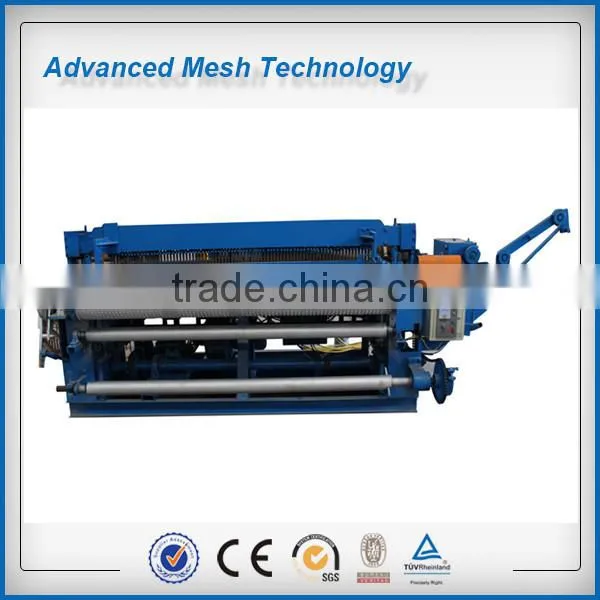

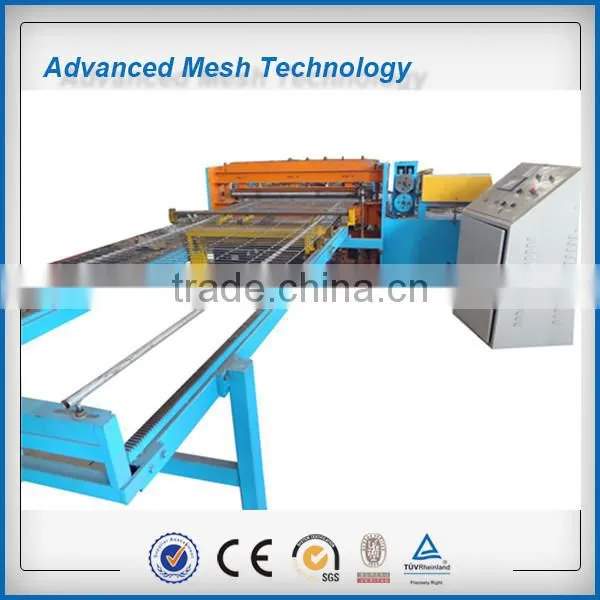

Welded Wire Mesh Fence Making Machine for BRC Fence Mesh
The machine could be customized, so please tell us your needs about the wire diameter, aperture, mesh width and so on.
Let me introduce type JK-FM-2500B and type JK-FM-2500S

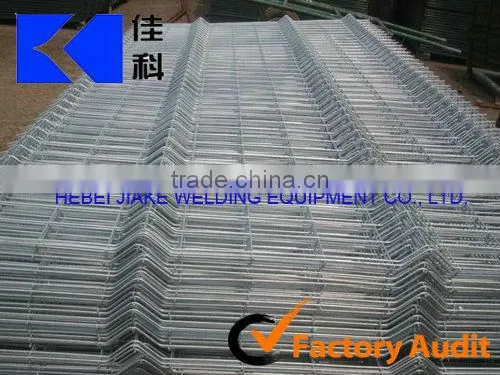

Both these two types for making fence mesh used in road fence, railway fence, garden fence, residence fence, highway fence, 3D fence, roll top fence mesh and so on.
The main difference is
JK-FM-2500B with step motor powered the mesh drawing device, and with higher type cross wire hopper
JK-FM-2500S with servo motor powered the mesh drawing device, and with lower type cross wire hopper

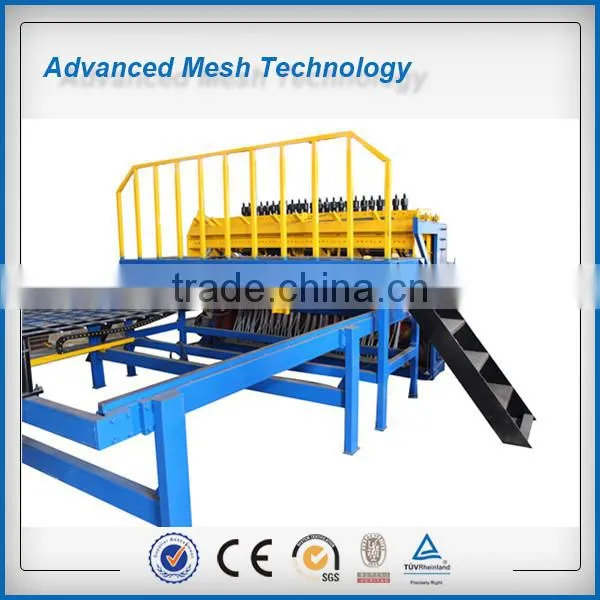

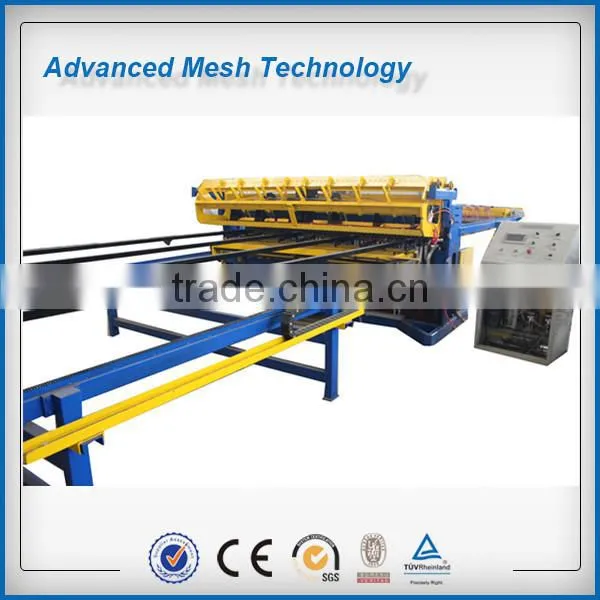

JK-FM-2500B | JK-FM-2500S |
Main Parameter of Fence Mesh Welding Machine JK-FM-2500B AND JK-FM-2500S
Model | JK-FM-2500B | JK-FM-2500S |
wire diameter | 3-6mm | 3-6mm |
mesh width | 1.2m, 1.5m, 1.8m, 2m, 2.5m or as required | 1.2m, 1.5m, 1.8m, 2m, 2.5m or as required |
line wire space | 50-300mm | 50-300mm |
cross wire space | 25-300mm | 25-300mm |
welding speed | 40-75 cross wires/min | 50-75 cross wires/min |
transformer | 125KVA*6 | 125KVA*6 |
power | 380V 50hz 3PHASE OR AS REQUIRED | 380V 50hz 3PHASE OR AS REQUIRED |
mesh length | max 5m | max 12m |
Description of Fence Mesh Welding Machines:
1. Easy to operate: to finish the products only need to turn one auto-run button.

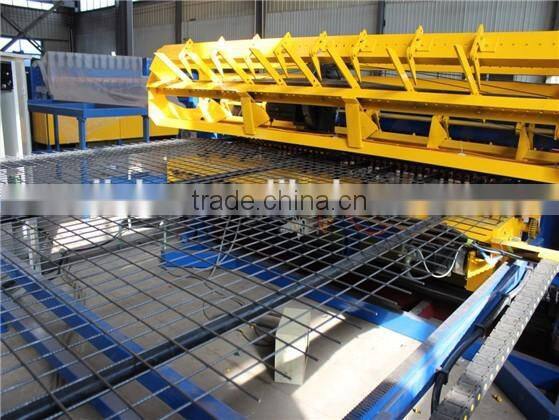

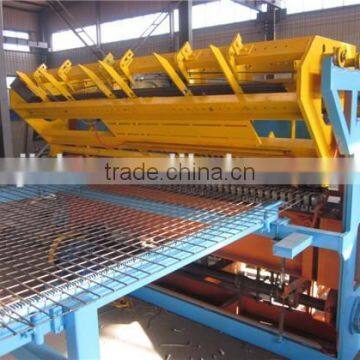

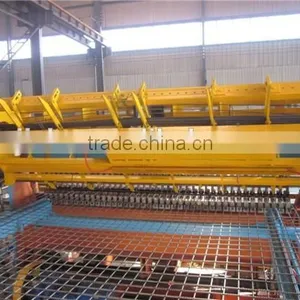

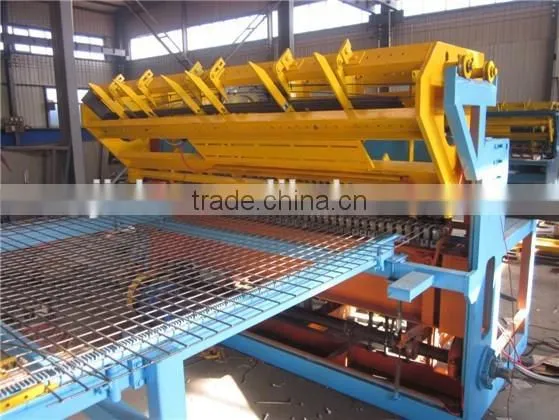

2. Cross wire hopper: powered with step motor, JK-FM-2500B with higher type cross wire hopper, JK-FM-2500S with lower type wire hoper.
3. Welding stop function: when welding, the main motor will stop temporarily, after finishing welding, it will run again, which ensure the welding quality.
4. Main motor with servo control: with DELTA VE high-end frequncy changer+PG which makes main motor 0-1500r/min accelerate and decelerate 0.02s, ensure the machines' quick reaction
5. Helical gear reducer: ensure the machine high-load running and outside installation, easy for maintanance.
6. Failure display: if the machine shows failure, it will show on the touch screen(HMI), easy for maintanance.
7. all the components and parts are famous brand.
1.Wire Mesh Welding Machines JK-RM-2500B for reinforcing mesh or steel bar mesh
|
2. Wire Mesh Welding Machines JK-FM-2500S for fence mesh or construction mesh
|
3. Full Automatic Wire Mesh Welding Machine JK-AC-1200S for construction mesh or poultry cage mesh
|
4. electric welded mesh machines for construction mesh
|
All our machines could be customized, please contact us for much more details
Our company has a sound service system, from customer requirements gathering, pre-sales technical consulting, installation and commissioning in sales, and after sales maintenance of equipment. All of service system only for your satisfaction.
A: Pre-sale service; plant layout design, technical consulting, feasibility studies, cost and ROI analysis;
B: sales services: installation and commissioning, operator training, electrician and mechanic training;
1.Equipment installation and commissioning: assist and guide customer coordinate the equipment layout according to the actual situation, make reasonable arrangements for the overall planing of the installation location. Assigned technician to provide equipment installation, operation, ancillary facilities, production, repair, maintenance services and answer the relevant questions.
2.Training operation and maintenance personnel: our company will provide training of the operation and maintenance personnel according to customer’s requirement.
C: after-sale service; supply spare parts and provide after-sale services
1.supply of spare parts: keep records for each customer, provide long-term supply of spare parts, and send it to customers hand with the fastest speed according to customers’ requirement.
2.Unexpected emergency repair service: once the equipment have malfunction, and the user unable to rule out, we will arrange technician to the user factory in the soonest time, solve the trouble and resume production in time.
Tell us your need, we will surprise you with best price, best quality and best service!
