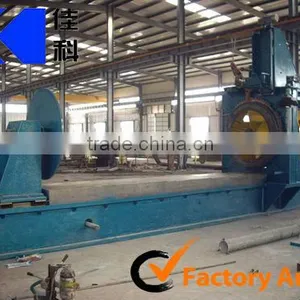

Johnson screen welding machine
Main parameter:
Features:
Johnson screen mesh welding machine are combined by CD61100 lathe, welding control cabinet, transformer, roller and wire rolling unit. It has strongpoint of standard welding slot distance.
Usage: welding wire wrapped screen pipe, mineral filtrating mesh, coal washing mesh, water filtration mesh, water well screen etc.
Machine functions:
Machine’s working mode: Automatic mode and Adjustable mode
a). Automatic mode, input correct variable values then the machine will working in automatic cycle.
b). Adjustable mode, every parts movement could be adjustable.
Main parameters:
Model |
φ50-200mm |
φ100-400mm |
φ400-1200mm |
Power |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
3Phase 380V 50Hz |
Rated capacity |
100 KVA |
100 KVA |
100 KVA |
Wire distance |
≥0.2mm |
≥0.2mm |
≥0.25mm |
Canister length |
≤6000mm |
≤6000mm |
≤4000mm |
Weld material |
Stainless Steel Wire & Low Carbon Steel Wire |
||
V-wire size |
1.8-5.0mm |
1.8-5.0mm |
1.8-5.0mm |
Support rod size |
1.8-5.0mm |
1.8-5.0mm |
1.8-5.0mm |
Overall dimension |
13000*1500*3300mm |
13000*1600*3400mm |
11000*2100*3800mm |
Weight |
10000KGS |
11000KGS |
13000KGS |
