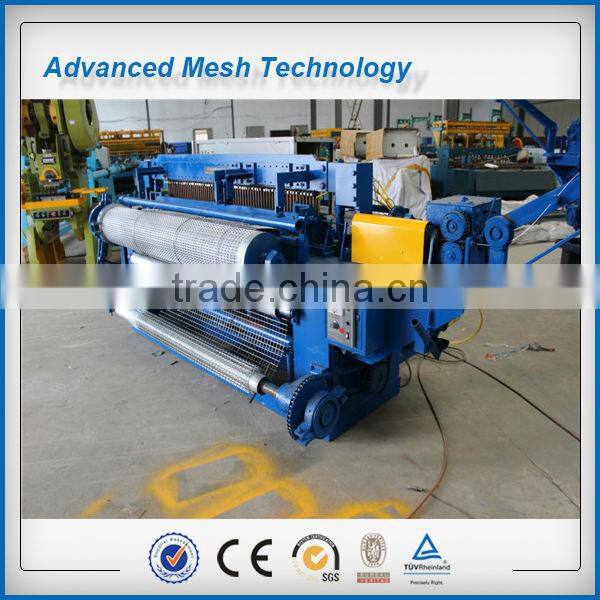

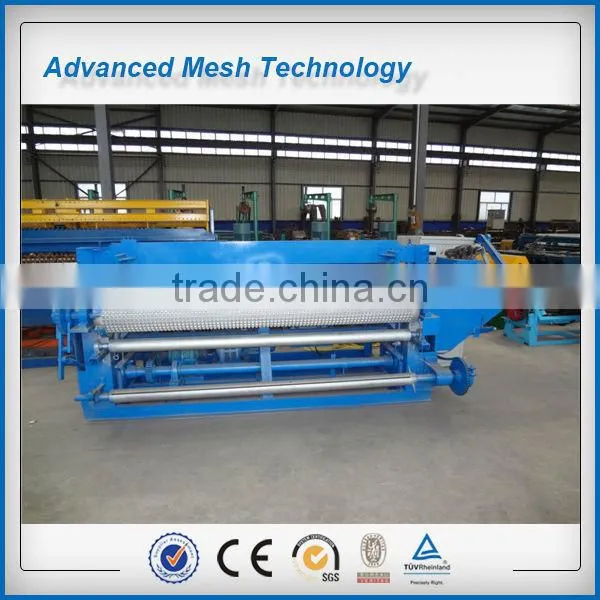

electric welded wire mesh machine JK-DNW-2
Both longitude wire and cross wire was feeding from wire coils automatically. The raw material is applicable for low-carbon steel wire or stainless steel wire. It has advantage such as design reasonable, low noise, more stable, easier operate and electrode-magnetism adjustable speed for welding. The mesh size is precise and the machine can be set the width of length according to customer’s requirement.
Type |
JK-DNW-2 |
Mesh width |
1219.2mm; 1524mm (4feet, 5feet) |
Aperture/pitch |
12.7mm—101.6mm(1/2”-4”) |
Wire diameter |
0.65—1.8mm |
Voltage |
3-phase, 380V, 50Hz or according to the client’s voltage |
Motor |
2.2KW |
Welding speed |
≤120rows/min |
Measurement of machine |
2.5M*1.3M*1.4M 2.9M*1.3M*1.4M |
Weight |
2.0T; 2.5T |
Welded transformer capacity |
60kva*4; 60kva*5 |
It’s made up of main welding machine, electrical control cabinet, repairing table, repairing machine, bracket for longitude wires, wire rolling machine and plastic rollers.
