Wire Mesh Machines
There are many types of wire mesh machines for your choice, and we need to confirm with you about the wire diameter, mesh width, wire spacing and so on, before we could quote you the best machines.
| Model | Wire Diameter | Mesh Width | Wire spacing | mesh type |
| JK-RM-2500B | 5-12MM | 2.5M or as required | 100-300mm | panel mesh |
| JK-FM-2500B | 3-6mm | 2.5m or as required | 50-200mm | panel mesh |
| JK-FM-2500S | 3-6mm | 2.5M or as required | 50-200mm | panel mesh or roll mesh |
| JK-FM-2500S+ | 4-8MM | 2.5M or as required | 100-300mm | panel mesh |
| more types unlisted | -- | -- | -- | -- |

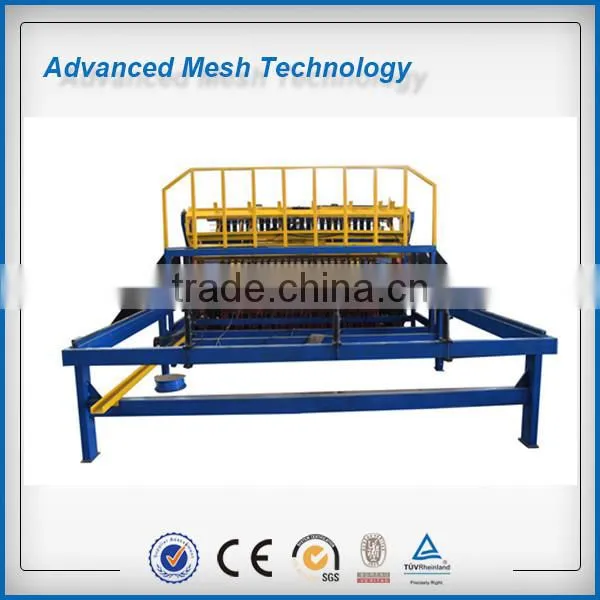

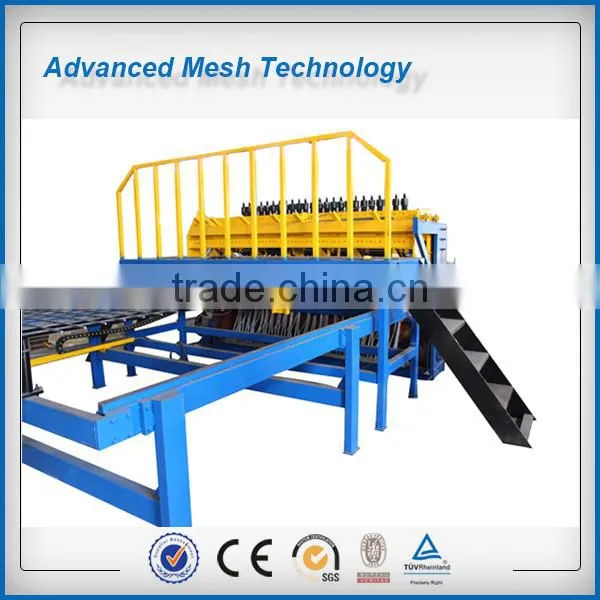

Type JK-RM-2500B INTRODUCTION:
Wire Mesh Machines JK-RM-2500B paramter:
| Model | JK-RM-2500B |
| wire diameter | 5-12mm |
| mesh width | 2500mm |
| line wire spacing | 100-300mm mechanical adjusted |
| cross wire spacing | CNC fine adjusted |
| rated voltage | 3 phase 380V/440V/415V 50HZ/60HZ or as required |
| rated power | 150KVA*12 |
| welding speed | 45-75cross wires/minute |
| dimensions | 20000mm*5000mm*2300mm |
| weight | 8500kg |
Wire Mesh Machines JK-RM-2500B characteristic:
1. flexibility for producing the most different type and sizes of wire mesh with fast and simple change-over.
2. line wire infeed section: mounted on servo motor automatic infeed the line wire to the welding position(optional)
3. cross wire infeed section: automatic wire loading carriage with wire hopper for loading pre-cut wires.
4. welding section: based on the wire spacing, the machine can adjust the electrodes and gripping pliers, fully adjustable welding parameter, time, current, etc.
5. mesh output section: mounted on servo motor, gripping pliers move based on the wire spacing set, carrying the welded mesh to the next work station.

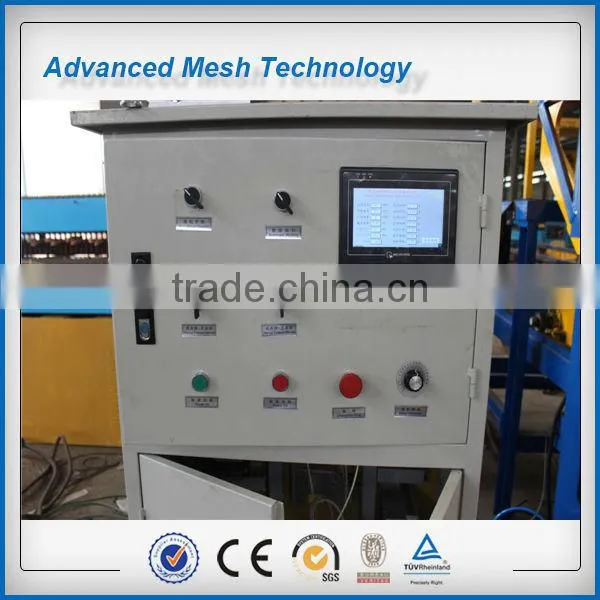

6. machine control systen: HMI(human-machine interface) links wirh P.L.C all parameter are set using the touch scree, easy to operate and maintain.
Contact: Miss lee
Skype: qq1815361000
Mobile/Wechat:+86 15324391556
Hebei Jiake Welding Equipment Co.,Ltd
Address:Wire Mesh Insdustrial Zone, Anping County, Hebei Province, China
Inquires now, and we will reply ASAP, welcome to visit our factory
