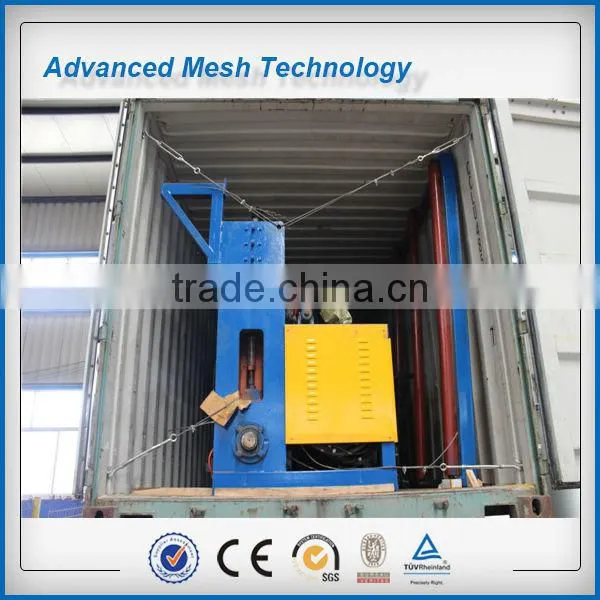

Help CenterAutomatic 3-8mm Galvanized Steel Wire Mesh Welding Machine/ Steel Bar Mesh Making Machines (JIAKE Factory)
Related Products
-
5-12mm CNC Welded Steel Wire Mesh Machines With Cold Rolling Ribbed Machines Wire Straightening and Cutting MachineUS$ 40,000 - 100,000MOQ: 1 Set -
All Kinds of Wire Mesh Machines JIAKE SupplierUS$ 30,000 - 1,000,000MOQ: 1 Set
-
All Kinds of Welding Wire Mesh Machines JIAKE Manufacturer Made in ChinaUS$ 30,000 - 1,000,000MOQ: 1 Set
-
5-12mm CNC Reinforcing Mesh Welded Machines With Cold Rolling Ribbed Machines Wire Straightening and Cutting MachineUS$ 40,000 - 100,000MOQ: 1 Set
-
Low Carbon Steel Wire Mesh Welding Machines Used in Mines or Fence ProtectionUS$ 60,000 - 100,000MOQ: 1 Set

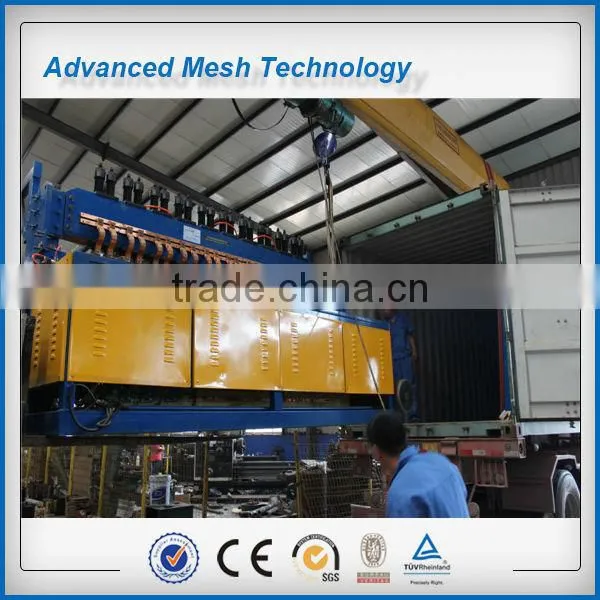

Steel Wire Mesh Welding Machine
Steel Wire Mesh welding machine woking process:
1. use wire straightening and cutting machine pre-striaghtened and pre-cut the line wire and cross wire.
2. cross wire input: loading the cross wire into the cross wire input hopper, then when welding the cross wire will input automaitcally, power from step motor.
3. line wire input: choice one, manually input the line wires into the wire trunking to the welding part. choice two, input by the line wire input device, power from Servo motor, automatically move the line wires trhough the wire trunking to the welidng part.
4. parameter set, HIM, touch screen input the parameter needed, then start the machine.
5. the machine begain to welding automatically. and the mesh output device, power from Servo motor, drawing the finished mesh forward to the next work station.
Steel Wire mesh welding machine characteristic:
1. HMI, touch screen, easy to learn and operate the machine.
2. high welding speed, 40-60cross wires/min
3. cross wire input hopper applied patent technology
4. the welding pressure comes from spring, brake motor matching helical gear reducer connect the main shaft, ensure the welding stable.
5. famous brand apparatus:

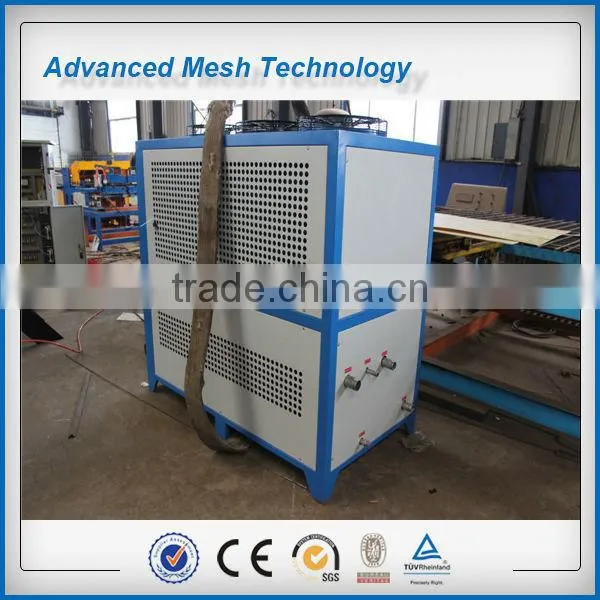

auxiliary equipment for the steel Wire Mesh Welding Machine
|
|
|
|
|
|
