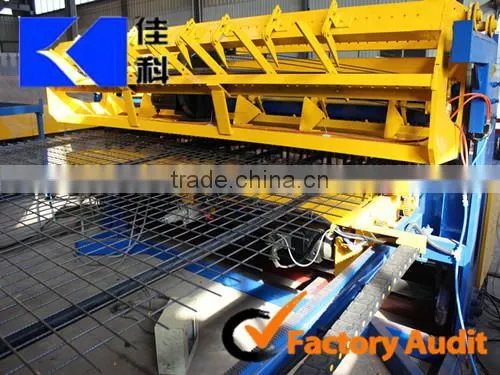

4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh

4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh thumbnail-1
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh thumbnail-2
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh thumbnail-3
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh thumbnail-4
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh thumbnail-5
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh thumbnail-6
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh photo-1
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh photo-2
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh photo-3
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh photo-4
4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh photo-5

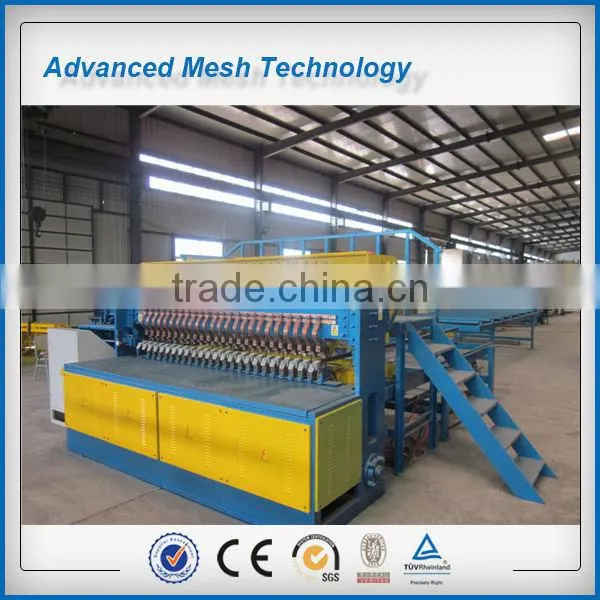

4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh photo-6
US$ 40,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Model Number:
JK-FM-2500S+
Contact Supplier Request Quote Chat Now
Hebei Jiake Welding Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name JIAKE
Model Number JK-FM-2500S+
Voltage 380V 50HZ 3PHASE or as required
Current 11
Rated Capacity 150KVA*12
Rated Duty Cycle 10
Dimensions 20m*3.6m*2.1m
Weight 8500kg
Usage weld reinforcing mesh
Certification CE
After-sales Service Provided Engineers available to service machinery overseas

4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh

wire diameter range:4-8mm adjustable

pitch wire:100-300mm adjustable

dimension of the mesh:2.5W*6mL or 12mL adjustable

4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh



Product Description

4-8mm automatic welded mesh machines for concrete reinforcing mesh A. PLC control, HMI, Touch screen parameter input, easy to operate

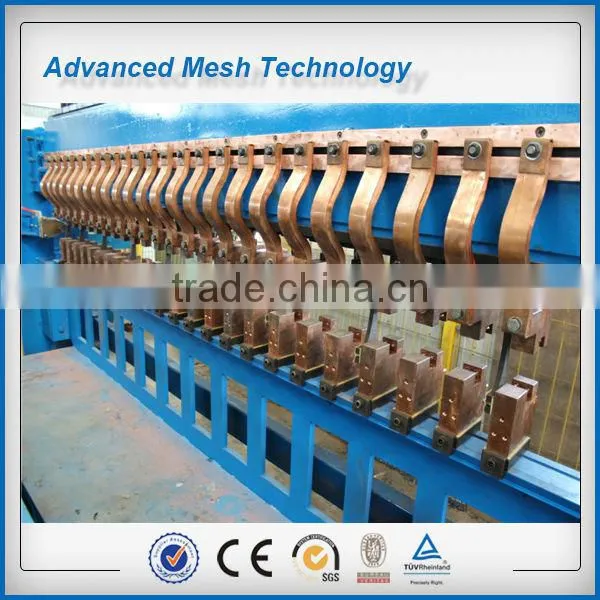

B. water cooling transformer,  welding firm

C. wire pitch, line wire pitch adjusted by moveing electrode, cross wire pitch set through touch screen.

D. welding speed, 45-75 cross wires/min

4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh

4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh

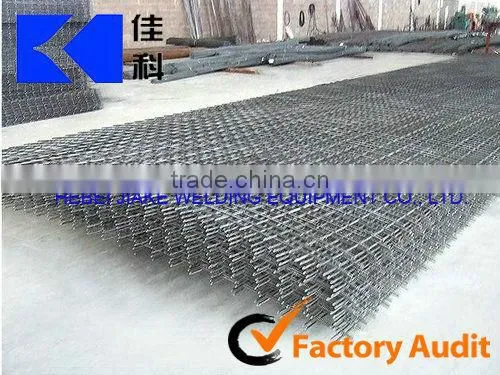

Finished Products
Wire Meshused in construction reinforcing mesh, highway, railway, bridge, fencing and so on.

Some size this kind of welded mesh machine could weld:

Wire diameter(mm)

Pitch wire(mm)

Dimension of the mesh(mm)

Overlaps(mm)

Weight

Along

Transversal

along

transversal

length

width

along

transversal

1m2(kg)

1ks(kg)

4

4

100

100

3000

2000

50

50

1.98

11.88

4

4

150

150

3000

2000

75

25

1.35

8.12

4

4

200

200

3000

2000

100

100

0.99

5.94

5

5

100

100

3000

2000

50

50

3.08

18.48

5

5

200

200

3000

2000

100

100

1.54

9.24

5

5

150

150

3000

2000

75

25

2.10

12.63

6

6

150

150

3000

2000

75

25

3.03

18.20

6

6

100

100

3000

2000

50

50

4.44

26.64

6

6

200

200

3000

2000

100

100

2.22

13.32

8

8

100

100

3000

2000

50

50

7.9

47.40

8

8

150

150

3000

2000

75

25

5.4

32.39

8

8

200

200

3000

2000

100

100

3.95

23.70

8

8

150

150

6000

2400

75

75

5.27

75.84

8

8

100

100

5000

2150

50

25

7.89

85.91



4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh



Related Products

1.Wire Mesh Welding Machines JK-RM-2500B for reinforcing mesh or steel bar mesh

  • wire diameter 5-12mm
  • mesh width 2.5m
  • mesh length max 12m
  • aperture 100-300mm
  • welding electrode 24pcs
  • welding transformer 150KVA*12
  • welding speed: 30-65 cross wires/min
 4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh

2. Wire Mesh Welding Machines JK-FM-2500S for fence mesh or construction mesh



  • wire diameter 3-6mm
  • mesh width 2.5m
  • mesh length max12m
  • aperture 50-200mm
  • welding electrode 48pcs
  • welding transformer 150KVA*12
  • welding speed  45-75 cross wires/min
  • mesh drawing device, powered by Servo motor
  • line wire: pre-straightened and precut or coil wire
  • cross wire:pre-straightened and precut
  • end products: roll mesh or panel mesh
 4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh



3. Full Automatic Wire Mesh Welding Machine JK-AC-1200S for construction mesh or poultry cage mesh

  • wire diameter 2-3.5mm
  • mesh width 1.2m
  • mesh length as required
  • aperture 50-200mm as required
  • welding electrode :16pcs or 25pcs as required
  • welding speed: 80-90corss wires/min
  • mesh drawing device, powered by Servo motor
  • line wire and cross wire: both from coil wire
  • end products: panel mesh or roll mesh
 4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh



4. electric welded mesh machines for construction mesh

  • Wire diameter 0.8-2.0mm
  • mesh width 1.2-1.8m
  • mesh length as required
  • aperture 1/2"-4" as required
  • welding speed:80-120 cross wire/min
  • line wire and cross wire: both from coil wire
  • end products: roll mesh
 4-8mm Automatic Welded Mesh Machines for Concrete Reinforcing Mesh



All our machines could be customized, please contact us for much more details
