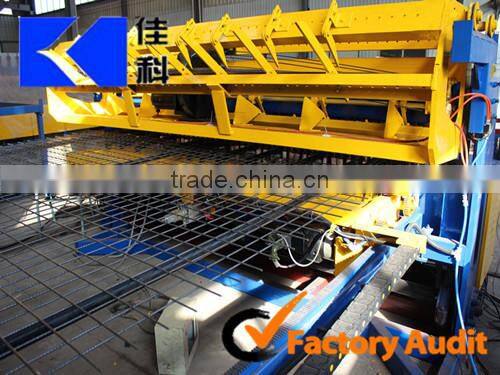

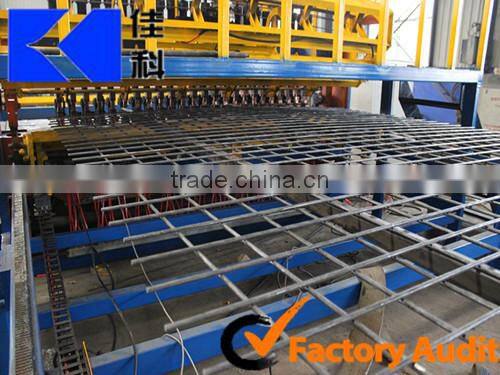

4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines

4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines thumbnail-1
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines thumbnail-2
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines thumbnail-3
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines thumbnail-4
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines thumbnail-5
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines thumbnail-6
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines photo-1
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines photo-2
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines photo-3
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines photo-4
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines photo-5
4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines photo-6
US$ 60,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Model Number:
JK-FM-2500S+
Contact Supplier Request Quote Chat Now
Hebei Jiake Welding Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
xigang
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name JIAKE
Model Number JK-FM-2500S+
Primary Voltage 380V
Rated Duty Cycle 10
Rated Capacity 150KVA*12
Dimensions 20m*3.6m*2.5m
Usage welding steel wire mesh
After-sales Service Provided Engineers available to service machinery overseas

4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines

wire diameter:4-8mm

mesh width:2.5m

line wire spacing:100-300mm

cross wire spacing:100-300mm

welding spot:24pcs

The machine could be customized, please contact us for much more details

4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines



Product Description

4-8mm mesh weld machines for steel wire mesh welding machines description



1. High welding speed: 45-75 cross wires /min

2. PLC control, HMI(human machine interface), easy to operate and maintainance

3. wire spacing: easy to adjust

4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines
Finished Products

 the wire mesh is widely used in construction reinforcement, the ground for tunnels, bridges, highway, airport and so on.

4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines

Packaging & Shipping

 4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines





Our Services

 4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines

Related Products

1.Wire Mesh Welding Machines JK-RM-2500B for reinforcing mesh or steel bar mesh

  • wire diameter 5-12mm
  • mesh width 2.5m
  • mesh length max 12m
  • aperture 100-300mm
  • welding electrode 24pcs
  • welding transformer 150KVA*12
  • welding speed: 30-65 cross wires/min
 4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines

2. Wire Mesh Welding Machines JK-FM-2500S for fence mesh or construction mesh



  • wire diameter 3-6mm
  • mesh width 2.5m
  • mesh length max12m
  • aperture 50-200mm
  • welding electrode 48pcs
  • welding transformer 150KVA*12
  • welding speed  45-75 cross wires/min
  • mesh drawing device, powered by Servo motor
  • line wire: pre-straightened and precut or coil wire
  • cross wire:pre-straightened and precut
  • end products: roll mesh or panel mesh
 4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines



3. Full Automatic Wire Mesh Welding Machine JK-AC-1200S for construction mesh or poultry cage mesh

  • wire diameter 2-3.5mm
  • mesh width 1.2m
  • mesh length as required
  • aperture 50-200mm as required
  • welding electrode :16pcs or 25pcs as required
  • welding speed: 80-90corss wires/min
  • mesh drawing device, powered by Servo motor
  • line wire and cross wire: both from coil wire
  • end products: panel mesh or roll mesh
 4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines



4. electric welded mesh machines for construction mesh

  • Wire diameter 0.8-2.0mm
  • mesh width 1.2-1.8m
  • mesh length as required
  • aperture 1/2"-4" as required
  • welding speed:80-120 cross wire/min
  • line wire and cross wire: both from coil wire
  • end products: roll mesh
 4-8mm Mesh Weld Machines for Steel Wire Mesh Welding Machines



All our machines could be customized, please contact us for much more details
