Specifications
galvanized steel automatic feeding welded wire mesh machinehigh automatic and speed
easy to operate
guarantee: 1 year
CE
galvanized steel automatic feeding welded wire mesh machine
Hebei Dapu Import & Export Trade Co.,Ltd is engaged in designing, manufacturing and exporting metal & wire mesh processing machinery, different kinds mesh weaving and wire mesh welding machine which located in Shijiazhuang Hebei China.It has own factory-Hebei Jiake Welding Equipment Co.,Ltd located in industrial zone ,Anping, Hebei ,China.It is the leading manufacturer of mesh machine in China and we always offer advanced wire mesh technology.
galvanized steel automatic feeding welded wire mesh machine
automatic feeding welded wire mesh machine

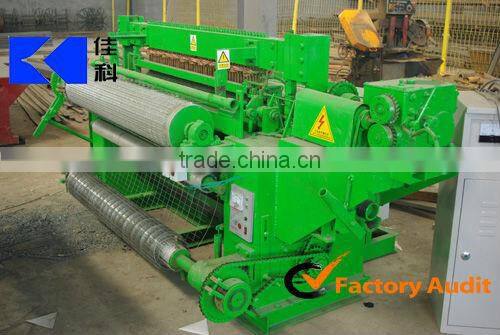

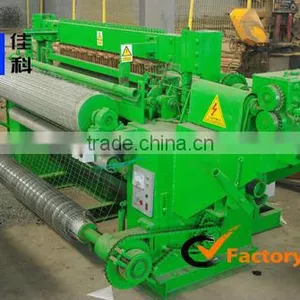

1.It is made up of main welding machine, electrical control cabinet, repairing table, repairing machine, bracket for longitude wires, wire rolling machine and plastic rollers.
2.Both longitude wire and cross wire are fed from wire coils automatically.
3.It has advantage such as design reasonable, low noise, more stable, easier to operate.
4.The mesh size is precise and the machine can set the width of length according to customers’ requirements.
5.The raw material is applicable for low-carbon steel wire or stainless steel wire.It has the board machine frame, electromagnetism stepless time, the distance of wire is wide, small noise, stabilization and save electricity, the mesh is standard. The machine can be used to weld low carbon steel wire, stainless steel wire mesh and other kinds of welded wire mesh.
welded wire mesh machine
Model |
JK-DNW-1 |
Mesh width |
914.4mm,1000mm |
Aperture/Pitch |
6.35mm-12.7mm |
Wire Diameter |
0.4mm-0.65mm |
Voltage |
3-phase,380V,50Hz or according to client’s voltage |
Motor |
2.2KW |
Welding Speed |
≤75 rows/min |
Measurement of Machine |
2.3m*1.3m*1.4m |
Weight |
1.5T |
Welded Transformer Capacity |
50kva*3 |
Model |
JK-DNW-2 |
Mesh width |
1219.2mm,1524mm (4feet, 5feet) |
Aperture/Pitch |
12.7mm-101.6mm |
Wire Diameter |
0.65mm-1.8mm |
Voltage |
3-phase,380V,50Hz or according to client’s voltage |
Motor |
2.2KW |
Welding Speed |
≤120rows/min |
Measurement of Machine |
2.5m*1.3m*1.4m 2.9m*1.3m*1.4m |
Weight |
2.0T, 2.5T |
Welded Transformer Capacity |
60kva*4; 60kva*5 |
Model |
JK-DNW-3 |
Mesh width |
1219.2mm,1524mm, 1828.8mm,2133.6mm (4feet,5feet,6feet,7feet) |
Aperture/Pitch |
25.4mm-101.6mm |
Wire Diameter |
1.0mm-2.2mm |
Voltage |
3-phase,380V,50Hz or according to client’s voltage |
Motor |
2.2KW,4.0KW |
Welding Speed |
≤80 rows/min |
Measurement of Machine |
2.5m*1.3m*1.4m 2.9m*1.3m*1.4m |
Weight |
2.0T, 2.5T,3.0T, 3.5T |
Welded Transformer Capacity |
60kva*4,60kva*5,60kva*6,60kva*7 |
galvanized steel automatic feeding welded wire mesh machine
It is widely used for construction mesh and poultry cage.
galvanized steel automatic feeding welded wire mesh machine
We have many types of welding machines: Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, electric mesh welding machine, mechanical mesh welding machine, cage making machine, steel grating welding machine, spot grating welding machine, pneumatic mesh welding machine, pneumatic spot welding machine, wedged wire screen welding machine, 3D panel machine.
We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, wire mesh welding machine, welded wire mesh machine.
We can offer installation and training the workers for you.Our guarantee time is one year since the machinewas installed at the buyer's factory but within 18 months against B/L date.
automatic feeding welded wire mesh machine
JK-DNW-1
JK-DNW-2
JK-DNW-3
