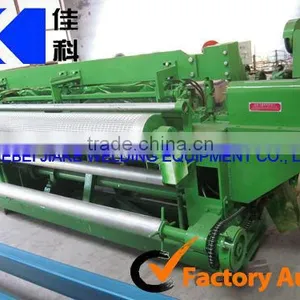

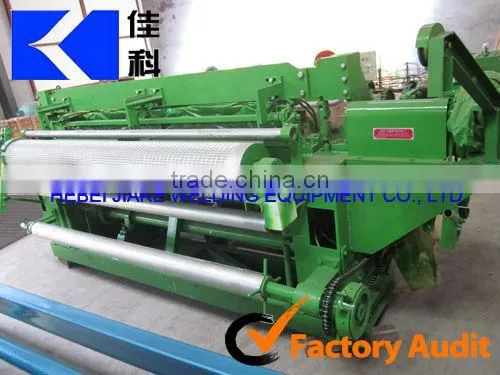

Hot dip galvanizing wire mesh welding machinehigh speed and automatic
good quality and stable function
easy to operate
CE
wire mesh welding machine
Characteristics:
1.It is made up of main welding machine, electrical control cabinet, repairing table, repairing machine, bracket for longitude wires, wire rolling machine and plastic rollers.
2.Both longitude wire and cross wire are fed from wire coils automatically.
3.It has advantage such as design reasonable, low noise, more stable, easier to operate.
4.The mesh size is precise and the machine can set the width of length according to customers’ requirements.
Parameter:
Model |
JK-DNW-2 |
Mesh width |
1219.2mm,1524mm (4feet, 5feet) |
Aperture/Pitch |
12.7mm-101.6mm |
Wire Diameter |
0.65mm-1.8mm |
Voltage |
3-phase,380V,50Hz or according to client’s voltage |
Motor |
2.2KW |
Welding Speed |
≤120rows/min |
Measurement of Machine |
2.5m*1.3m*1.4m 2.9m*1.3m*1.4m |
Weight |
2.0T, 2.5T |
Welded Transformer Capacity |
60kva*4; 60kva*5 |
Other models:
Model |
JK-DNW-1 |
JK-DNW-3 |
Mesh width |
914.4mm,1000mm |
1219.2mm,1524mm, 1828.8mm,2133.6mm (4feet,5feet,6feet,7feet) |
Aperture/Pitch |
6.35mm-12.7mm |
25.4mm-101.6mm |
Wire Diameter |
0.4mm-0.65mm |
1.0mm-2.2mm |
Voltage |
3-phase,380V,50Hz or according to client’s voltage |
3-phase,380V,50Hz or according to client’s voltage |
Motor |
2.2KW |
2.2KW,4.0KW |
Welding Speed |
≤75 rows/min |
≤80 rows/min |
Measurement of Machine |
2.3m*1.3m*1.4m |
2.5m*1.3m*1.4m 2.9m*1.3m*1.4m |
Weight |
1.5T |
2.0T, 2.5T,3.0T, 3.5T |
Welded Transformer Capacity |
50kva*3 |
60kva*4,60kva*5,60kva*6,60kva*7 |

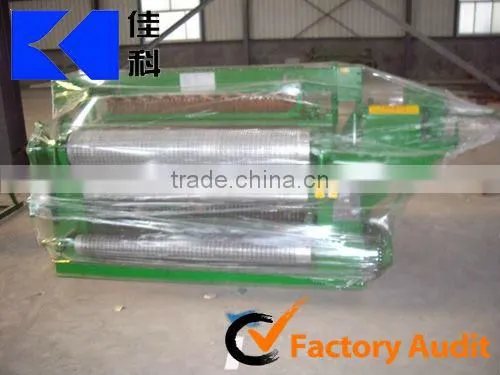

Hot dip galvanizing wire mesh welding machine
machine
loading
products
