Model | DP-DNW-1 | DP-DNW-2 | DP-DNW-3 |
Wire diameter | 0.4mm-0.65mm | 0.65mm-2.2mm | 1.0mm-2.5mm |
Aperture/pitch | 6.35mm 12.7mm 1/4” 1/2” | 12.5mm 25mm 50 mm 1/2’ ’ 1’’ 2’’ | 25mm 50mm 75mm 100mm 1’’ 2’’ 3’’ 4’’ |
Mesh width | Max.914mm , 1000mm | 1.2m 1.5m 1.8m 2m | 1.2m-2.5m |
Motor | 2.2 kw | 3kw;4kw | Max5.5kw |
Welding speed | Max .75rows/min | Max .180 rows/min | Max . 180rows/min |
Measurement | 2.3*1.3*1.4m | 2.5/2.9*1.3*1.4m | 2.5/2.9*1.3*1.4m |
Weight | 1.5T | 2T,2.5T | 2T,2.5T,3T,3.5T |
Transformers | 50kva*3 | 60kva*4/5/6/7 | 60kva*3/4/5/6/7/8 |

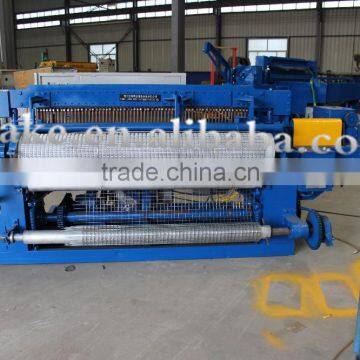

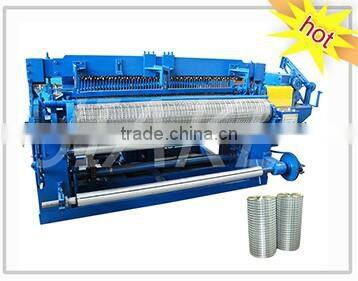

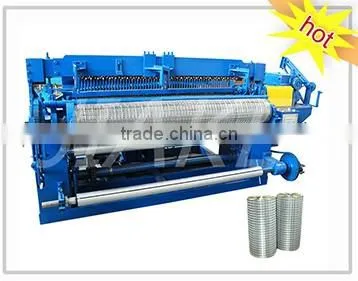

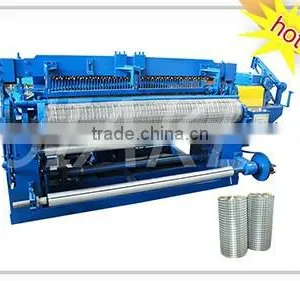

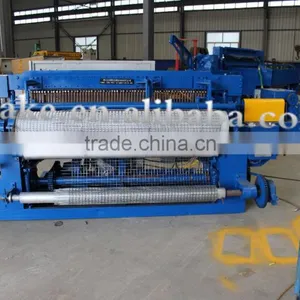

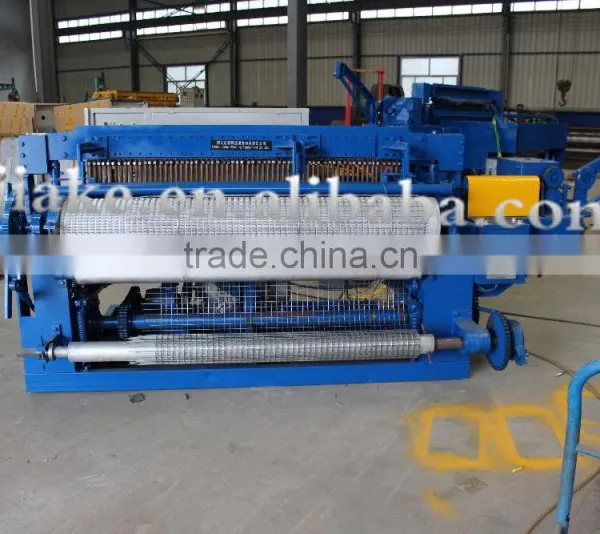

1. This machine can weld 0.4-2.5mm ,the raw material can be blace wire , galvanized wire , stainless steel wire
2. For the wire feeding ,both longitude wire and cross wire are feed automatically from wire coils

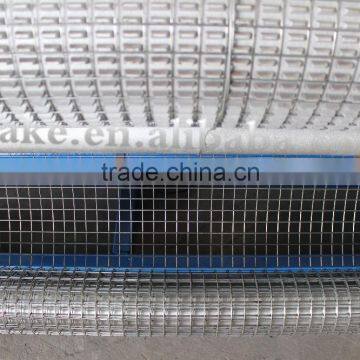

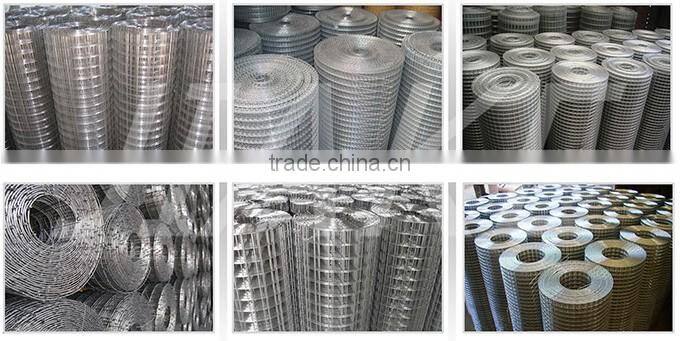

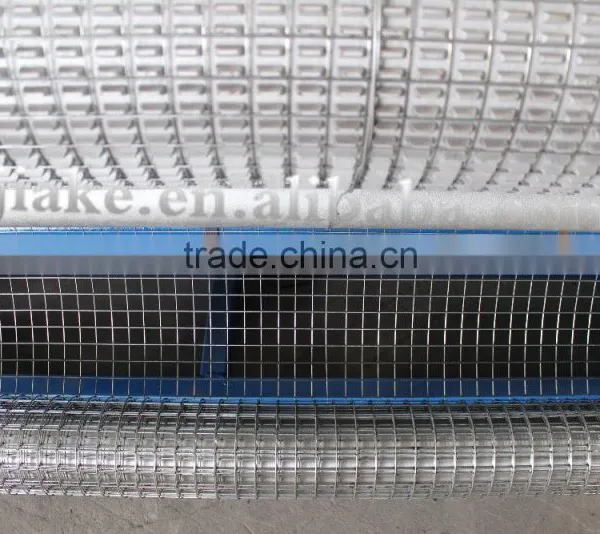

3.The edge cutter and middle cutter can adjust freely , So you can get regular edge and 2 or 3 rolls mesh at the
same time
4.You can set the mesh roll length by counter switch on the control panel

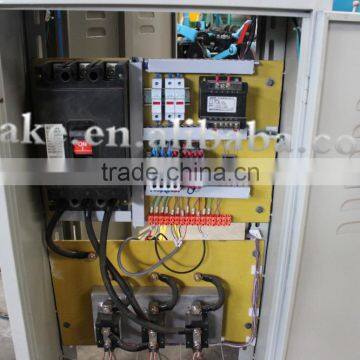

5.Both welding time and welding current is adjustble on control panel to adjust the welding degree
Contact us >>
Contact us>>
1.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2.Within guarantee time, if any components are broken under normal condition, we can change for free.
3.We can send our best technician to buyer’s factory for installation, debugging and training.
4.Complete installation instructions, circuit diagram, manual operations and machine layout.
5.24 hours technical support by e-mail.
Hebei Jiake Welding Equipment Co.,Ltd. is engaged in designing,manufacturing and exporting
metel &wire mesh processing machinery,different kinds of wire mesh weaving machine and wire
mesh welding machine which is located in Shijiazhuang,Hebei,China. It's the leading manufacturer
of wire mesh machines in China and we always offer ADVANCED WIRE MESH TECHNOLOGY.
