Automatic galvanized welded wire mesh machine buy
Type | DP-DNW-1 | DP-DNW-2 | DP-DNW-3 |
Mesh width | 914.4mm;1000mm | 1219.2mm;1524mm | 1219.2mm;1524mm; 1828mm;2133mm |
Aperture /pitch | 6.35mm-12.7mm | 12.7mm-101.6mm | 25.4mm-101.6mm |
Wire diametre | 0.4mm-0.65mm | 0.65mm-1.8mm | 1.0mm-2.2mm |
Motor | 2.2KW | 2..2KW | 2.2KW;4.0KW |
Welding speed | <=75rows/min | <=120rows/min | <=80rows/min |
Measurement of machine | 2.3M*1.3M*1.4M | 2.5M*1.3M*1.4M 2.9M*1.3M*1.4M | 2.5M*1.3M*1.4M 2.9M*1.3M*1.4M |
Weight | 1.5T | 2.0T;2.5T | 2.0T;2.5T;3.0T;3.5T |
Welded transformer capacity | 50kw*3 | 60kw*4;60kw*5 | 60kw*4;60kw*5;60kw* 6;60kw*7 |
1.Both longitude wire and cross wire are feeding from wire coils automatically.
2.The raw material is appliable for low-carbon steel wire,stainlesswire or galvanized steel wire.
3.The mesh size is precise and the machine can be set the width and length according t o customer’s requirement.
4.It is made up of main welding machine, electrical control cabinet, repairing table, repairing machine, bracket for longitude wires, wire rolling machine and plastic rollers.
Mesh Repairing Machine Mesh Repairing Table
Wire Rolling Machine Bobbin stand-off
Low-carbon wire,black wire,stainless wire, galvanized wire.

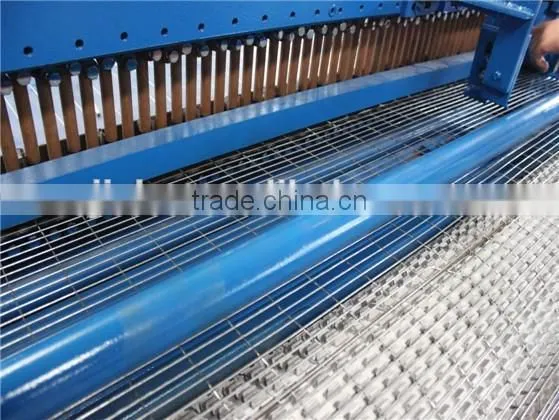

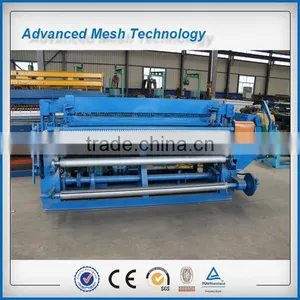

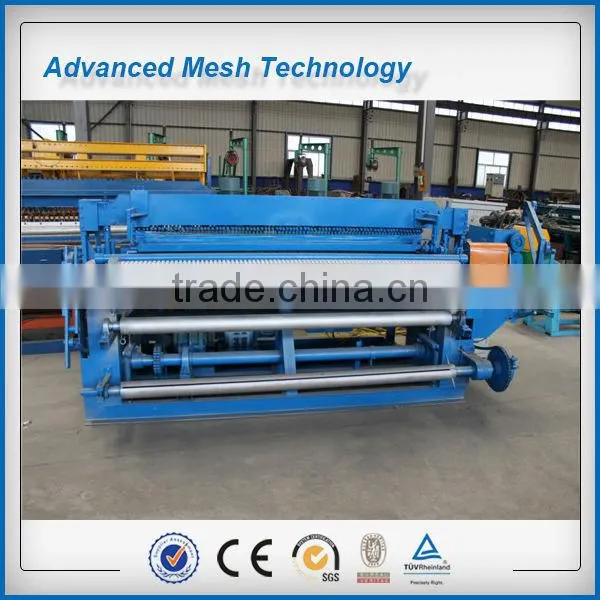

Main machine
Welding electrodes

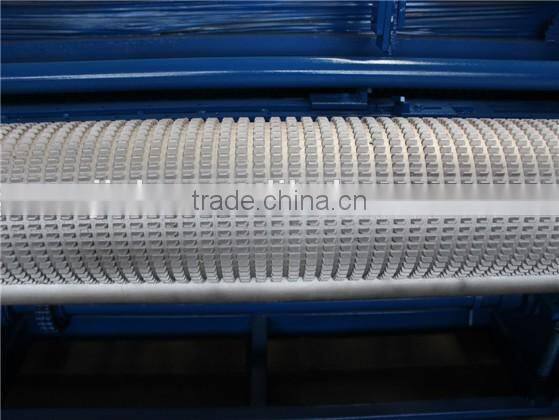

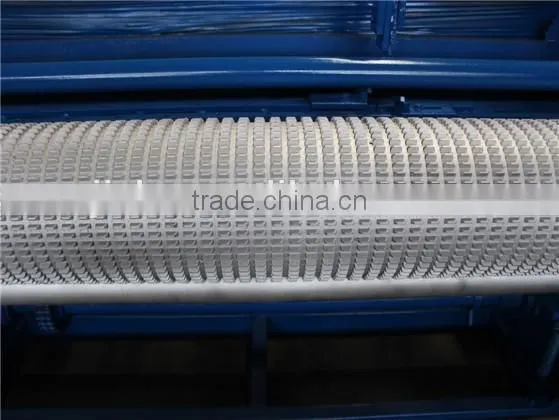

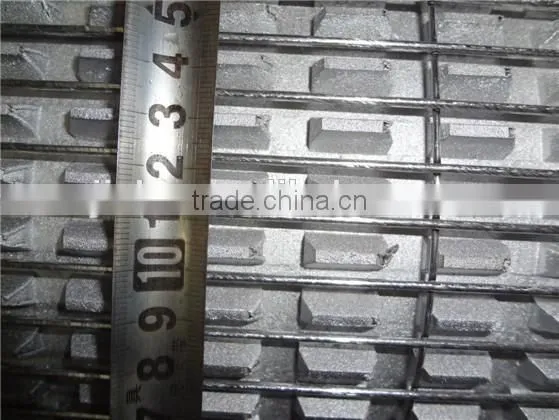

Mesh mould
Mould size(can be made according to your requirement)

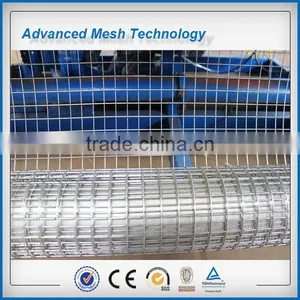

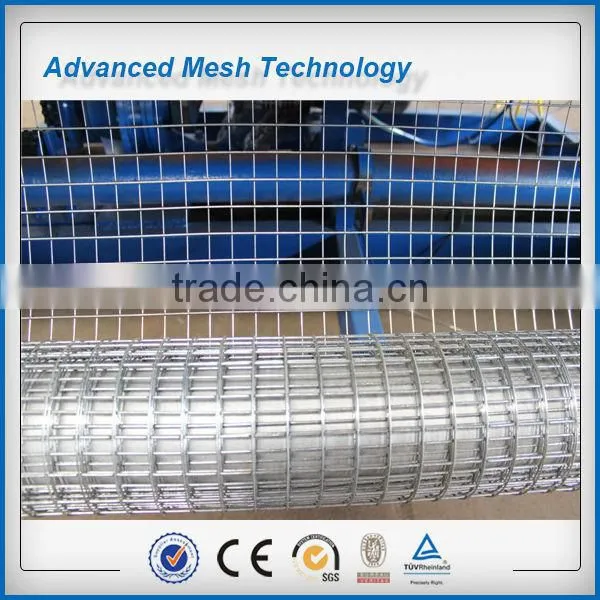

Mesh rolling
1.Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date.
2.Within guarantee time, if any components are broken under normal condition, we can change for free.
3.We can send our best technician to buyer’s factory for installation, debugging and training.
4.Complete installation instructions, circuit diagram, manual operations and machine layout.
5.24 hours technical support by e-mail.
