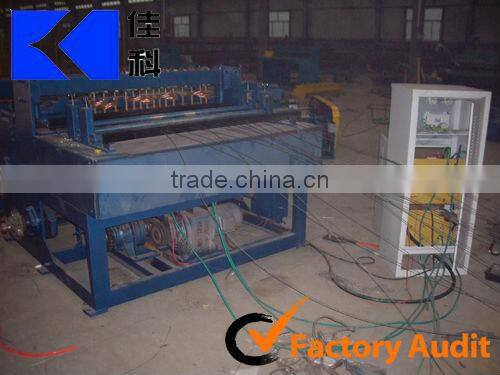

Mechanical chicken cage mesh welding machines(for bottom cage) JK1200
A. Application:
Hebei Jiake chicken cage mesh welding machines (for bottom cage) JK-1200 is specially used for welding chicken cages.
B. Characteristic:

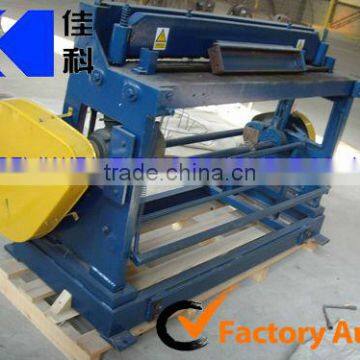

This machine adopts electrical and electronic synchronous control technique both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is accurate, it has stable function,firm welded point and without welded tracks. The longitude wires are fed from coils. The cross wires are fed from coils while the diameter of cross wire 1.8-2.5mm. Also the cross wires should be pre-straightened and pre-cut when the diameter of cross wire 2.6mm to 3.0mm. This machine is equipped with precise equipment for weft cutting and position, so the length of wefts is identical and regular, it is unnecessary to slice the side. Mesh pulling system adopts elastic tension link and opening positioning mesh, it is easy to regulate the mesh hole and mesh opening size is rather accurate. Welding aperture could adjust randomly with range. Not only welding speed is fast but also it is easy to learn and operate. Only one worker can finish the operation.
C. Specification:
Model | JK-1200 |
Wire diameter | 1.8-3.0mm |
width | Max1200mm or as required |
Line wire spacing | 50mm—200mm |
Cross wire spacing | 25mm-200mm |
Welding electrode | 16pcs |
Rated electrical power | 60KVAX2pcs |
Rated capacity | 380v 50hz 3phase or as required |
Welding speed | 45-65times/min |
Dimension | 4mX15m |
Weight | 2500kgs |
Hebe Jiake Welding Equipment Co.,Ltd mainly produce reinforcing mesh welding machine, fence mesh welding machine, construction mesh welding machine, chicken cage mesh welding machine, 3D panel production line, filter mesh welding machine, steel bar cage making machine, chain link fence machine, gabion mesh machine, nail making machine, barbed wire machine, welded wire mesh machine, razer barbed wire machine, steel grating mesh welding machine, fence mesh weaving machine, stainless steel wire mesh weaving machine and so on.
Contact:Miss lee
Skype:qq1815361000
Wechat/mobile:+86 15324391556
Fax:+86 0318- 7565522
Hebei Jiake Welding Equipment Co.,LTD
Address:Wire Mesh Industrial Zone, Anping County, Hebei Province, China
