2-3.5mm steel wire mesh welding machines for 3D panel production line suppliers at Anping
USD $25,000 - $60,000
/ Set
1 Set(Min.Order)
- 10 Set / Sets per Month
- xingang
You May Like
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
- Micro wire mesh weaving machine from LANYING wire mesh weaving machine
- LANYING woven wire mesh machines - stainless steel wire mesh weaving machines
Product Details
Place of Origin: | Hebei, China | Brand Name: | JIAKE | Model Number: | JK-AC-1200S |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

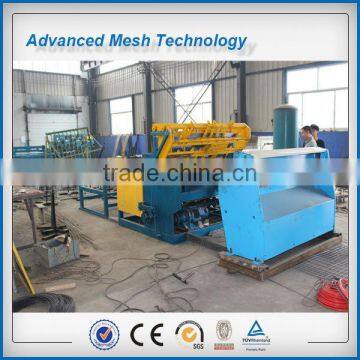

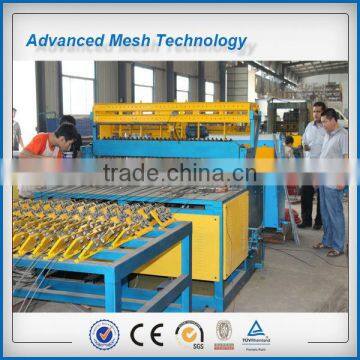

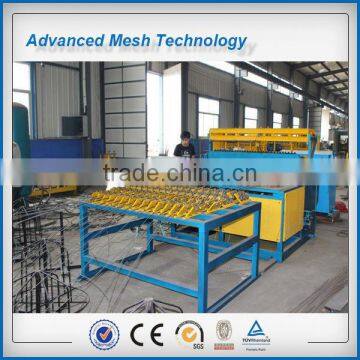

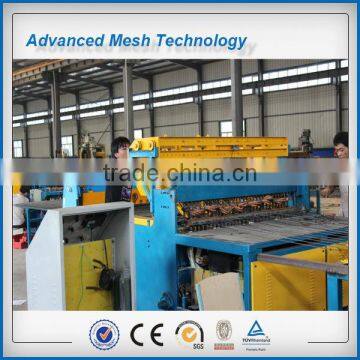

Wire mesh welding machine JK-AC-1200S
Technical Parameter
Wire mesh welding machines JK-AC-1200S main parameter:
Model | JK-AC-1200S |
wire diameter | 2-3.5mm |
max. mesh width | 1200mm |
number of electrodes | 25pcs |
mesh length | 3.2m |
cross wire space | 50-300mm |
line wire space | 25-300mm |
electric capacity | 375KVA |
welding speed | 60-90 cross wires/min |
control system | PLC control |
Product Description
Wire mesh welding machines JK-AC-1200S characteristic
cross wire device: Panasoniv sevo motor(0.75kw)
mesh output fevice: Panasonic servo motor (1.5kw)
power system: helical gear motor, servo control(4kw)
operation system: HMI+touch screen in English1. easy to operate: start the machine only one automatic run button.
2. motor servo control: adopts Delta VE high-end frequency converter snd PG card, the time of main motor 0-1500r/min accelerate and decelerate is 0.02s, zero speed could 200% torque run, ensure the machine quick reaction (the main motor with Autonics encoder)
3. Helical gear reducer: to ensure the machine high bearing running, adopts torque high bearing K-series helical gear reducer, and outside install, easy to maintanance.
4. mesh output device: Panasonic servo motor and planetary gear, ensure the system stability of and wire mesh size precision.
5. weft input device: Panasonic servo motor and planetary gear, ensure the weft uniformity and system stability.
6. fault display: when the machine fault, it will show on the touch screen(HMI), convenient to maintain.
7. parameter set: all the parameter could be set on the touch screen in English.
8. All the spare parts are famous brand abroad and inland.

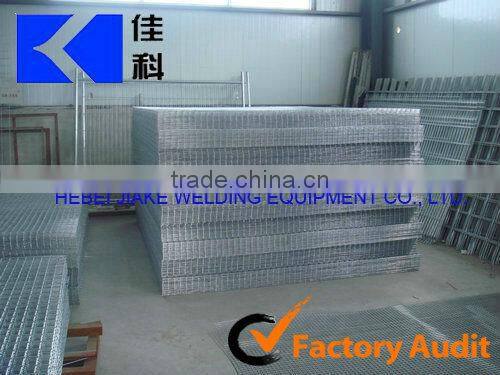

Finished Products
