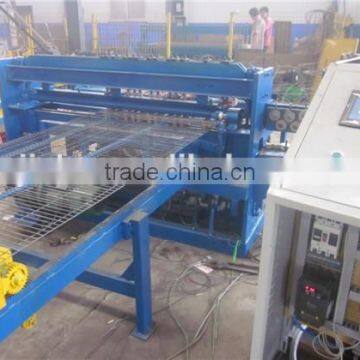

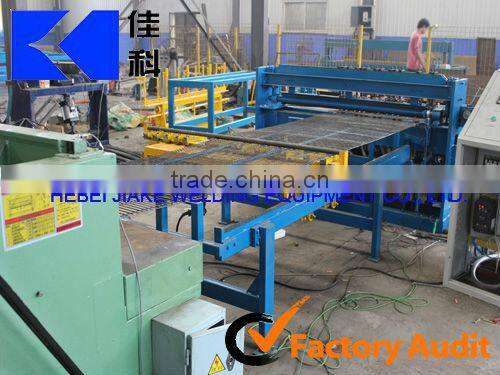

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs photo-1
Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs photo-2
Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs photo-3
Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs photo-4
Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs photo-5
Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs photo-6
US$ 29,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
JIAKE
Model Number:
JK120
Payment & Shipping
Payment Methods:
Port of Shipment:
xingang
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Brand Name JIAKE
Model Number JK120
After-sales Service Provided Engineers available to service machinery overseas

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs



Model No.

units

Main machine

PLC Wire mesh machine(with servo motor)

1set

Auxiliary machine

Mesh cutting machine(good quality)

1set

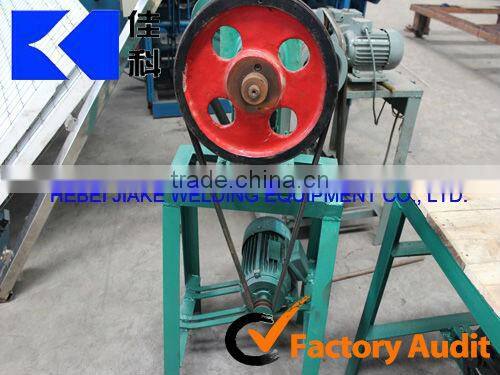

wire pay-off(good quality)

50set



Mesh repairing machine

1set



Edge cutting machine

1set



Mesh bending machines

1set



Main Machines of  Steel Wire Mesh Welding Machines for Making Puppy Cage Runs

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs

1.Main parameter of the  Steel Wire Mesh Welding Machines for Making Puppy Cage Runs



JK-120C-1

Input power

41550Hz

Max. width

1500mm

Line wire space

50-200mm

Cross wire space

50-200mm(25mm narrowly)

Line wire diameter

2.0-3.0mm

Cross wire diameter

2.0-3.0mm

Rated capacity

60kva*6

Welding point No.

49

Motor power

2.2KW

Feed line wire

Coil wire

Feed cross wire

Coil wire

Cutting mesh

Automatic with mesh cutting machine

Welding speed

45 times/min

Weight

2500kg

Dimension(L*W*H)

2500*1800*1500mm



2.Main features of the Steel Wire Mesh Welding Machines for Making Puppy Cage Runs:

  PLC program (Panasonnic)&touch screen (Delta)

  Servo motor (Panasonnic) for pulling mesh, can adjust cross wire space online.



C.Auxiliary machine of  the puppy Cage Mesh Welding Machines

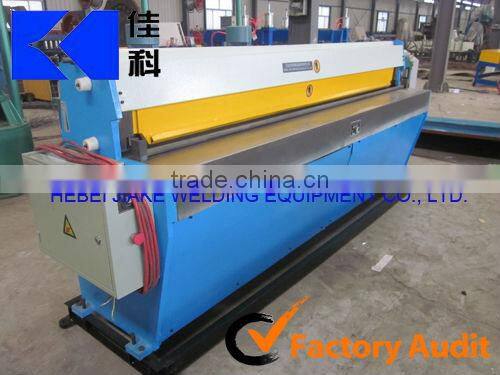

     Mesh cutting machine(good quality)    mesh repairing machine                 edge cutting machine

    Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs        Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs    Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs

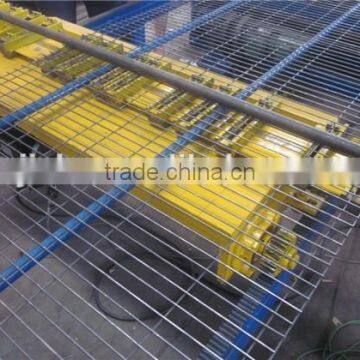

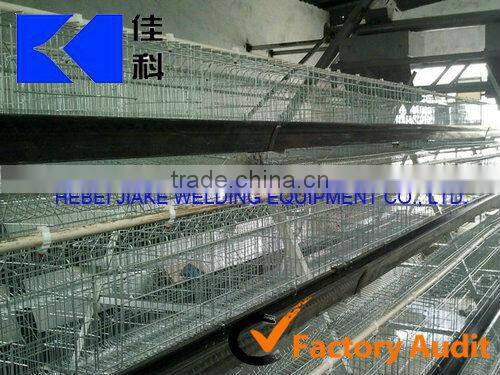

end products

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs





Other Machines

1. Reinforcing Mesh Welding Machines

wire diameter: 5-12mm

mesh width: max2.5m

wire spacing: 100-300mm

mesh length: max12m

welding speed:

30-60 cross wires/min

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs

2. Fence Mesh Welding Machines

wire diameter:3-6mm

mesh width:max 2.5m

wire spacing:50-200mm

welding speed:

45-75 cross wires/min

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage RunsAutomatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs

3. Concrete Reinforcing Mesh Welding Machines

wire diameter:3-8mm

mesh width: max2.5m

wire spacing 100-300mm

welding speed:45-75 cross wires/min

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage RunsAutomatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs

4.Poultry Cage Mesh Welding Machines

wire diameter 1.8-3.5mm

mesh width:1.2m

wire spacing: 50-200mm

welding speed:60-90cross wires/min

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage RunsAutomatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs



5. Electric Welded Mesh Machines

wire diameter:0.45-0.85mm

wire diameter:0.6-1.3mm

wire diameter:0.8-1.6mm

wire diameter:1.4-2.7mm

mesh width: as required

wire spacing: as required

Automatic Steel Wire Mesh Welding Machines for Making Puppy Cage RunsAutomatic Steel Wire Mesh Welding Machines for Making Puppy Cage Runs

Notes:



1.The price is based on FOB xingang port and keeps valid for 30 days.



2.Delivery is 45 days upon confirmation of purchasing order and advance payment, whichever is late.



3.Payment terms shall be 30% IN ADVANCE PAYMENT BY TT AS DEPOISIT UPON SIGNING THE CONTRACT, AND THE BALANCE

70% PAID BY T/T AFTER SUCCESSFUL INSPECTION  AT SELLERS FACTORY BEFORE SHIPMENT.



4.After sales service: we will send technicians to the buyers factory for the installation and commissioning of the machines and the

 training of the buyers workers at the buyers request. The round trip air tickets, visa, the hotel and food expenses of our technicians

 should be covered by the buyer. Meanwhile, the buyer should pay our technicians the wages of USD 100 per day per person.





We can customize the fence mesh welding machines, reinforcing mesh welding machine, animal cage mesh welding machine, wire mesh welding machine, welded wire mesh machine, chain link fence machine, hexagonal wire netting machine, gabion mesh machine, stone mesh machine, expanded metal mesh machine, barbed wire machine, razor barbed wire machine and so on, please do not hesitate to contact us.
