Automatic Die Cutting Machine, Paper Cup Roll to Sheet Die Cutting Machine
Parameters of Automatic Die Cutting Machine, Paper Cup Roll to Sheet Die Cutting Machine
Model |
0R1250 |
OR9055 |
Max. Die cutting pressure |
300(N/Cm2) |
150(N/Cm2) |
Applicable paper material |
100g-1200g |
30-1000g |
Max.feeding size |
1200(mm) |
900(mm) |
Die cutting size |
1200*500mm |
900*550mm |
Max die cutting speed |
9000(times/h) |
9000(times/h) |
Dimension |
4000*2500*1800mm |
4000*1800*1600mm |
Weight |
4300kg |
3800kg |
Features of Automatic Die Cutting Machine, Paper Cup Roll to Sheet Die Cutting Machine
1. Electric paper roll feeding.
2. Electric eye tracks feeding, ensure the feed rate and cutting speed synchronization.
3. Automatic fold material at the tube filler, reflexed-degree multi-level adjustment, then bend the product can flatten even allowed to reverse bending.
4. Can die cut according to the figure or no text pattern die cutting after printing,
photoelectric eye used with stepper motor, guarantee the die cut position exactly
in line with the pattern of the product after printing. For non printed products,
just need to set the feeding length on the micro-controller.
5. The cutting knife edition size is 1200 mm * 500 mm.
6. The maximum cutting speed of up to 9000 times per hour, with a high productivity.
7. The die cutting pressure is provided by the 7.5 kilowatts inverter motor, provides large and stable die cutting force.
8. Adopts platen die-cutting mode.
9. Adopts the microcomputer controller can set batch automatic counting, automatic alarm or shutdown.

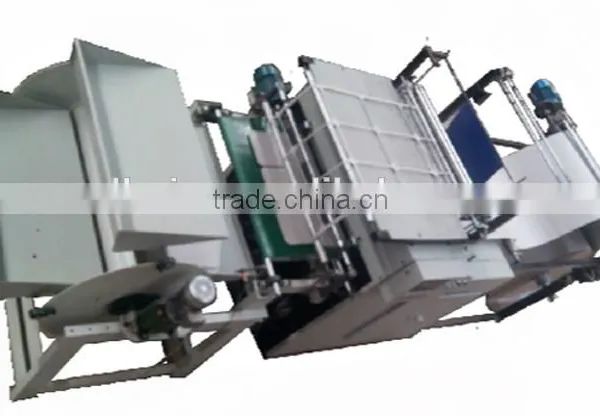

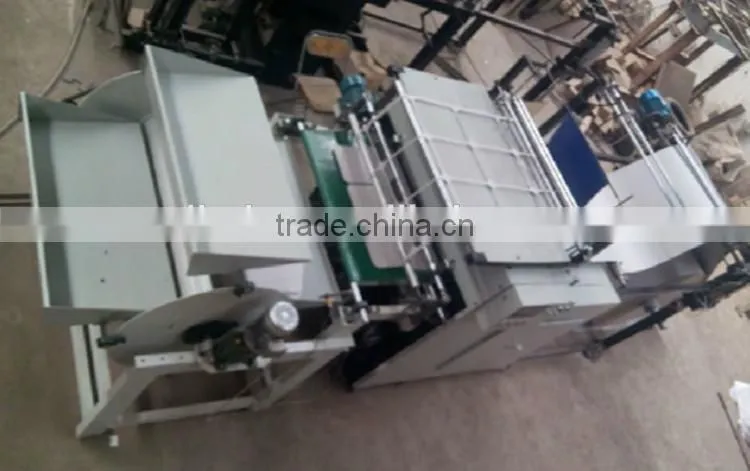

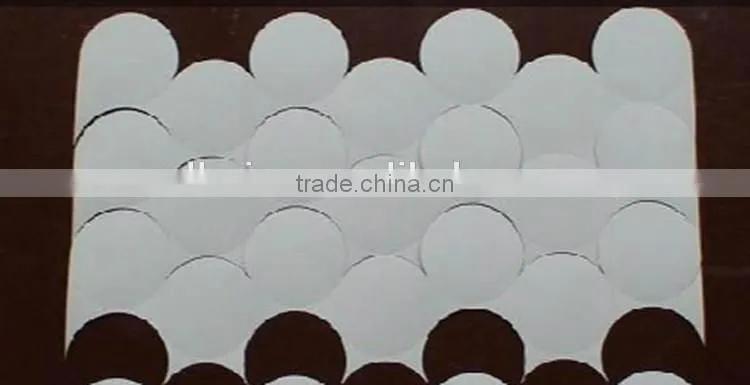

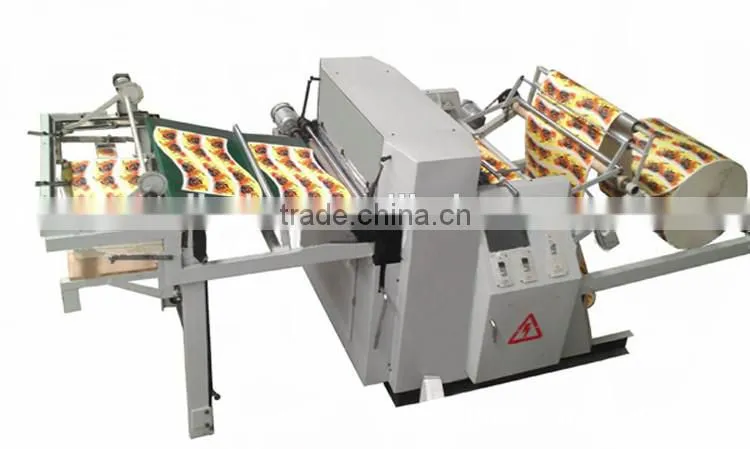

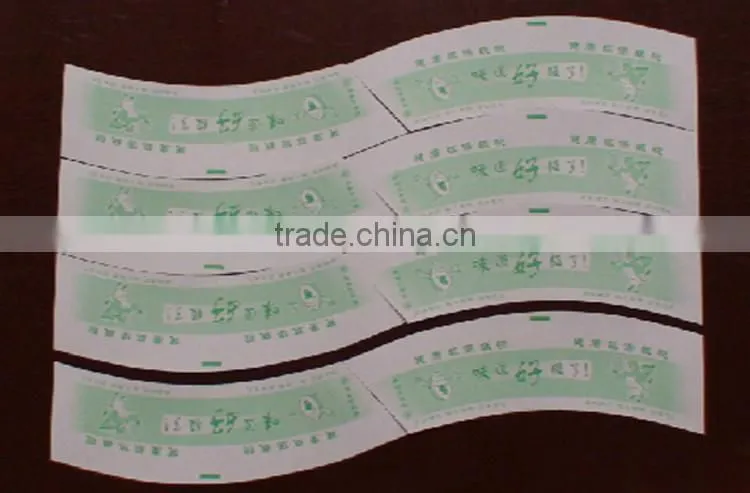

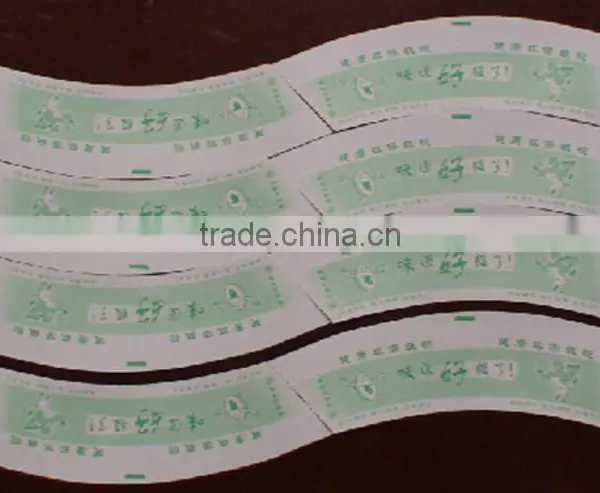

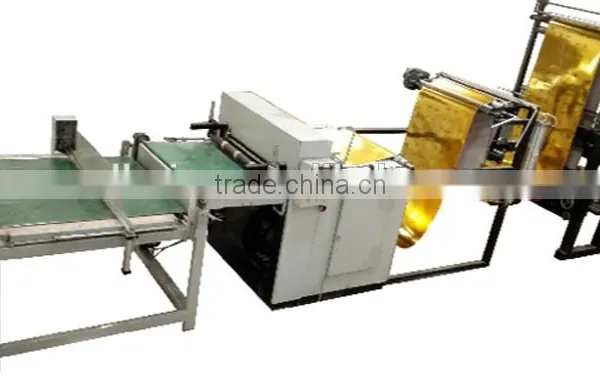

Detailed picture of Automatic Die Cutting Machine, Paper Cup Roll to Sheet Die Cutting Machine

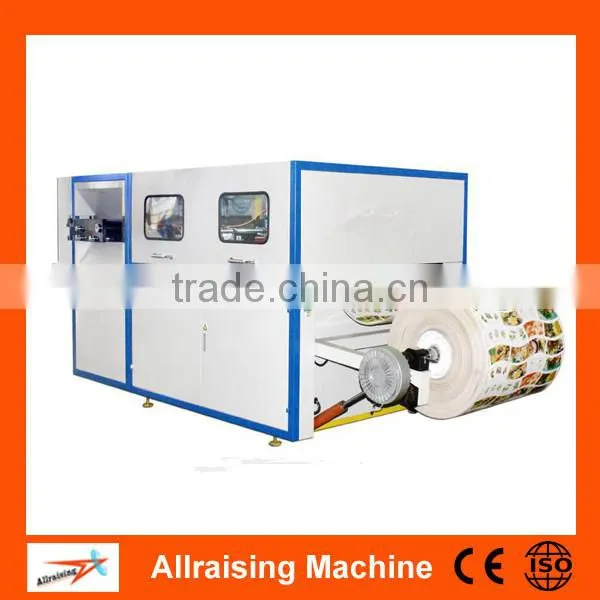

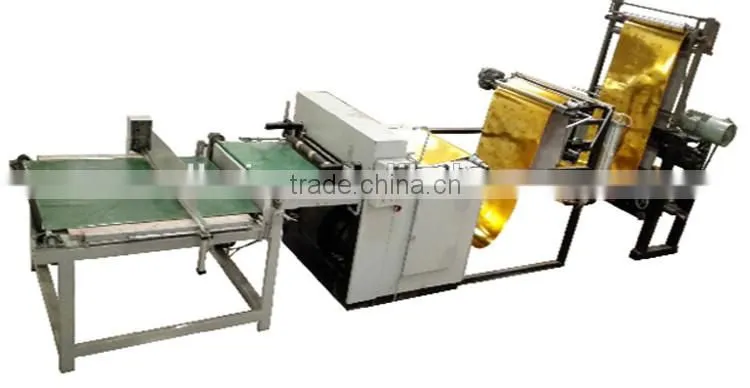

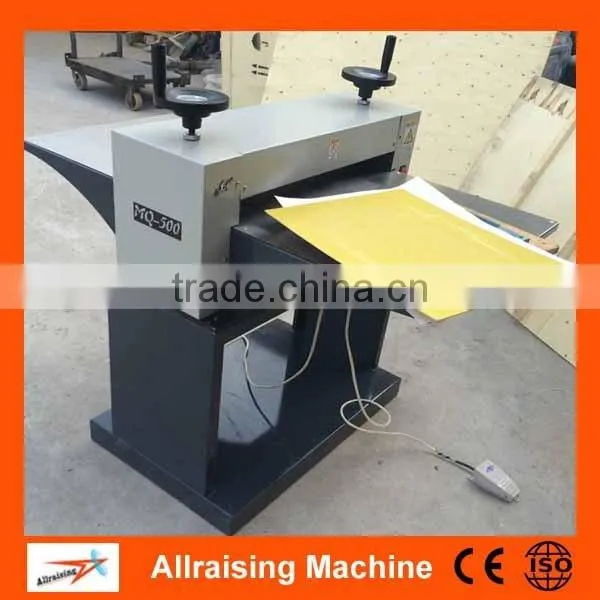

Other paper die cutting machine
please click the following picture to see the detailed information
More Information:
Packaging Detail |
Wooden case of Rewinding Machine |
Delivery Detail |
Within3-5 working days after receiving your prepayment |
Shipment Detail |
By air ,by sea |
Payment Terms |
L/C,T/T,Western Union |
Supply Ability |
5000 Set/Sets per Month Rewinding Machine |
MOQ |
1 Set/Sets Rewinding Machine |

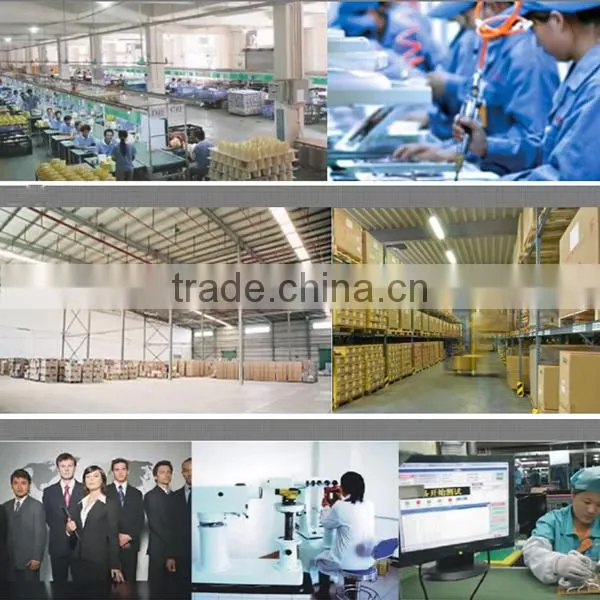

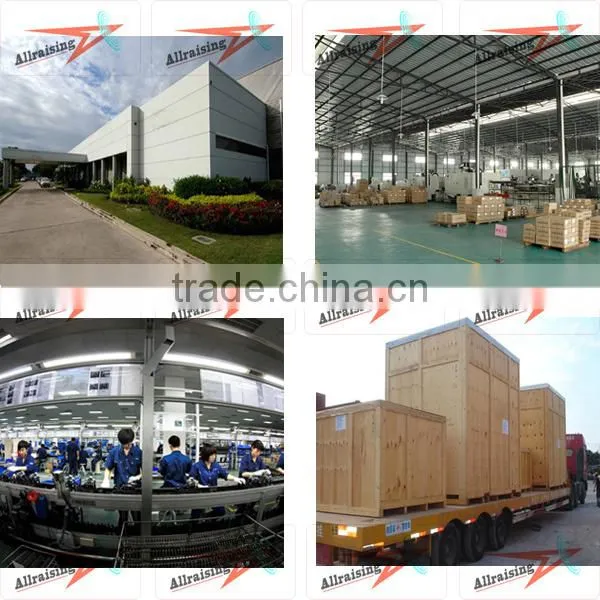

Factory Show:
About Us:
*We produce and export machine directly.
*With a cheaper labor force which make our price more competitive.
*Most developed highway system and logistics deliver company make sure
on time shipment.
*Own advanced manufacturing equipments and computer controlled making
machine, so our factory implement assembly line entirely.
*Strict quality control system to make sure the quality is good and stable.
*Once cooperation, the whole life friendship. Not for others just for the
quality.
